Slkor SL9650M30SC LDO Linear Regulator: High‑PSRR Low‑Dropout Solution, Ideal Power Supply for Wide‑Temperature Precision Equipment
2026-08-05 65

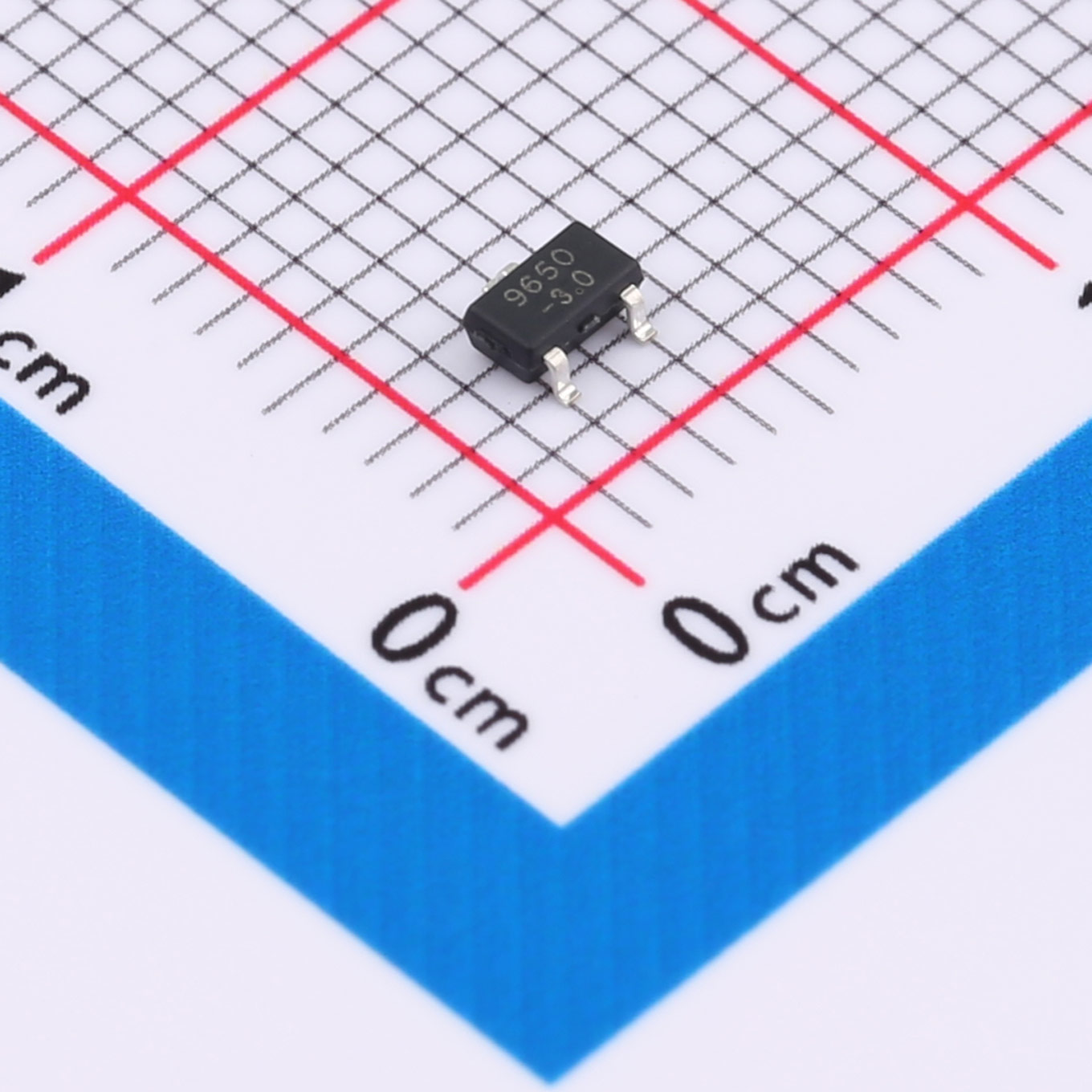

In power-supply design for RF modules, sensor sampling circuits, battery-powered portable devices, IoT terminals and small-scale industrial acquisition equipment, low-noise regulated output, low quiescent power consumption, wide environmental adaptability and sufficient output current are key selection indicators for hardware engineers. Developed by Slkor, the SL9650M30SC is a low-dropout CMOS linear regulator (LDO). Built on advanced CMOS process, it delivers fixed 3V output with maximum input voltage of 7 V. It features 75 dB PSRR @1 kHz, 500 mV dropout @600 mA, 50 μA low quiescent current, a wide operating temperature range of -40℃ ~ +125℃ and up to 600 mA continuous output. It serves as a high-performance general-purpose regulation solution for precision analog circuits and battery-powered devices.


I. Core Product Advantages

High PSRR for Clean, Noise-Free Power Output

Boasting a power-supply rejection ratio of 75 dB @1 kHz, this chip strongly suppresses input-side ripple and interference. Compared with ordinary LDOs, it supplies low-noise 3 V power for RF units, image sensors and analog sampling circuits, preventing signal drift and data distortion caused by power-supply noise. It is well suited for precision loads sensitive to power quality and ensures stable signal acquisition and RF communication performance of complete systems.
50 μA Low Quiescent Current for Battery-Powered Systems

The SL9650M30SC features a quiescent current of merely 50 μA with ultra-low self-power consumption. For lithium-battery-powered portable products, it effectively cuts standby losses and extends device battery life. It maintains excellent regulation under light-load and standby conditions, making it a valuable choice for battery-operated hardware power schemes.
Low-Dropout Performance for Stable Operation Towards Battery End-of-Discharge

Its dropout voltage is only 500 mV at full 600 mA load. Stable 3 V regulation can be maintained as long as the input exceeds the output by 500 mV. For scenarios with gradually dropping battery voltage during discharge, it enables fuller battery utilization, reduces power dissipation and heat generation, and improves overall power-supply efficiency.
-40℃ ~ +125℃ Wide Operating Temperature for Consumer and Industrial Applications

The chip operates reliably from -40℃ to +125℃. It meets indoor requirements for consumer electronics and withstands low-temperature outdoor conditions as well as high internal temperatures inside enclosed equipment. Overcoming the limited upper temperature threshold of typical consumer-grade LDOs, it is applicable to harsh operating conditions such as outdoor monitoring and industrial boards.
Built-in Multi-Level Protection for High System Reliability

Integrated over-current, short-circuit and thermal-shutdown protections activate automatically upon load short-circuit, overload or excessive chip temperature to protect both the chip and downstream components. It delivers up to 600 mA continuous output, enough to drive MCUs, Bluetooth/Wi-Fi wireless modules, various sensors and small-size signal-processing units. Only input and-output ceramic capacitors are required for peripheral circuits, shortening hardware development cycles.

II. Key Electrical Specifications

Maximum operating input voltage: 7 V; fixed output voltage: 3 V; maximum continuous output current: 600 mA; PSRR: 75 dB @1 kHz; dropout voltage: 500 mV @600 mA; quiescent current: 50 μA; operating temperature: -40℃ ~ +125℃. It adopts fixed-output architecture with factory-calibrated 3 V output without external voltage-dividing resistors. Requiring no inductors and free of EMI noise from switching power supplies, its simple peripheral circuit makes it ideal for powering analog and RF circuits.

III. Main Application Fields

IoT Smart Hardware

Power supply for Bluetooth and Wi-Fi wireless modules, wireless sensor acquisition nodes, smart-home sensor modules, low-power IoT end-nodes.
Portable Consumer Electronics

Smart wearable devices, handheld testing instruments, portable acquisition equipment, camera-module power supply, small portable medical devices.
Precision Signal-Processing Systems

RF transceiver circuits, PLL clock circuits, image sensors, analog-signal sampling boards and analog circuits sensitive to power-supply noise.
Battery-Powered Instruments and Meters

Battery-powered temperature- and-sensing measurement equipment, portable signal-acquisition terminals, small digital-display testing devices.
Small-Scale Industrial Control Modules

Outdoor low-power monitoring nodes, on-board auxiliary power for field signal transmitters, power-supply loops for industrial sensors.

IV. Engineering Design Recommendations

Input Power Adaptation

For lithium-battery-powered applications, fit filter capacitors at the input. Do not exceed the chip’s 7 V maximum withstand voltage. Under full-load conditions, ensure the input voltage is at least 3.5 V (output voltage plus dropout voltage); otherwise output drop-out and regulation failure may occur.
Peripheral Component Selection

Prioritize low-ESR multi-layer ceramic capacitors for input and output to lower output noise and improve load transient response. Follow datasheet for capacitor values; the output capacitor must not be omitted to guarantee loop stability.
PCB Layout Optimization

Keep VIN and VOUT traces short for LDO layout. Place input and output capacitors close to chip pins. Adopt wide ground traces to minimize noise introduced by ground-path impedance. When powering RF and sensors, route power traces away from high-speed digital signal lines to avoid digital-noise coupling into analog power rails.
Thermal Management under High-Temperature Full-Load Conditions

For long-term operation close to 600 mA full load, evaluate chip power dissipation. Expand copper area underneath the chip for heat dissipation and control temperature rise. Maintain adequate thermal margin and avoid continuous full-load operation under high-temperature environments.
Optimization for Noise-Sensitive Systems

When powering high-precision devices such as RF circuits and image sensors, add a compact RC filter network at the output to further suppress coupled noise and secure signal-acquisition quality.

V. Product Summary

Featuring five major strengths: 75 dB high PSRR, 50 μA low quiescent consumption, 500 mV low dropout, -40℃ ~ +125℃ wide temperature range and 600 mA output current, the SL9650M30SC low-dropout linear regulator addresses pain points including excessive power-supply noise, high quiescent power draw, narrow temperature range and insufficient battery utilization in precision power-supply scenarios. Free of switching noise, it features simple peripheral circuits and off-the-shelf components with fixed 3 V output requiring no external voltage-dividing resistors.
As a mature LDO regulator from Slkor, the SL9650M30SC is widely deployed in mass-produced IoT hardware, portable devices, sensors and small industrial modules. It is a cost-effective linear-regulator choice for 3 V precision power-supply loops.
