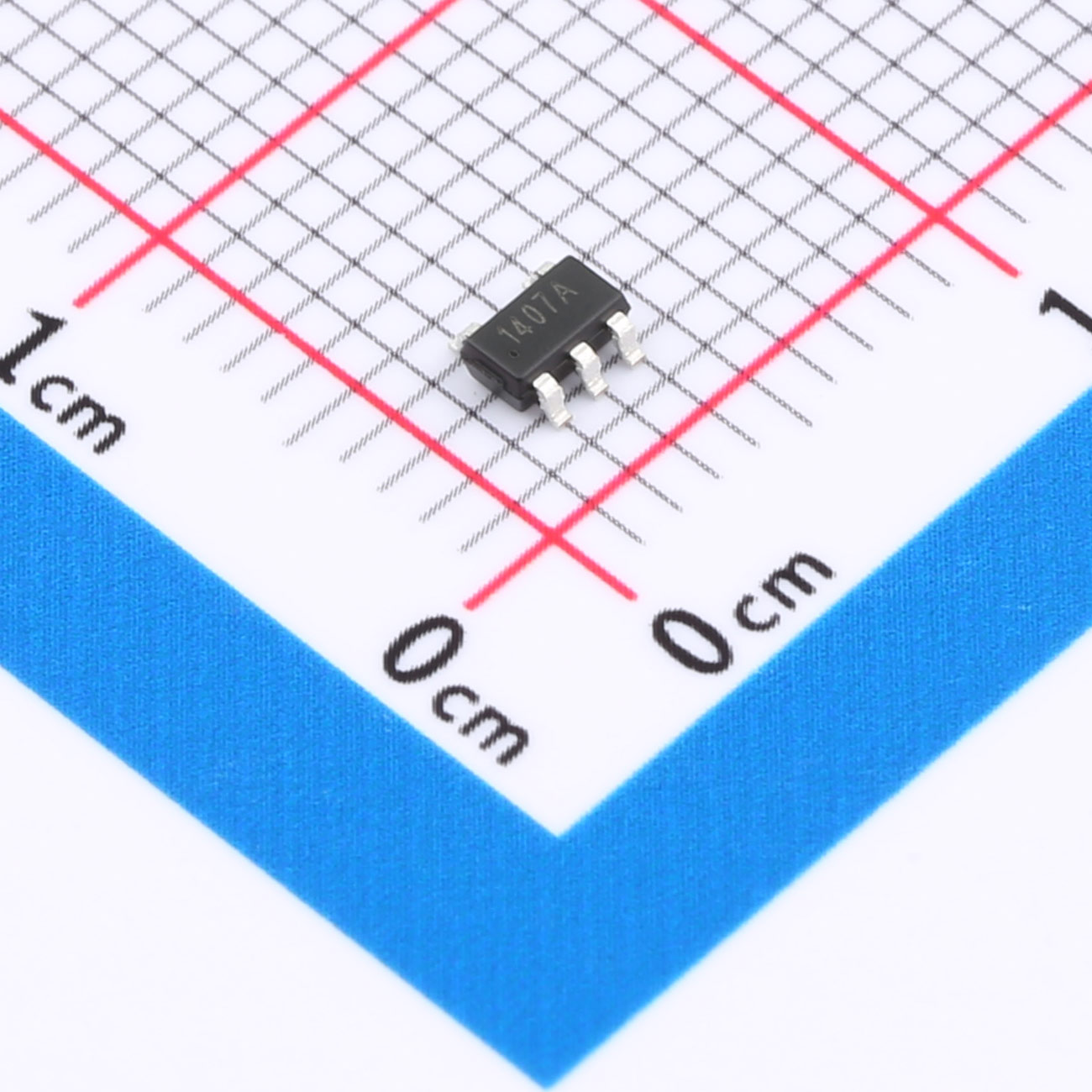

In switching power supplies, DC-DC converters, motor drive systems, power tools and new energy electronic control circuits, the switching speed, conduction stability and conversion efficiency of power devices such as MOSFETs and IGBTs heavily rely on high-performance gate driver chips. The Slkor SL27517A is a single-channel high-speed low-side gate driver IC packaged in an ultra-compact SOT-23-5L form factor. It supports 24V wide-voltage operation, delivers 4A symmetrical peak sink/source current, and features ultra-low quiescent current of 183μA and a maximum operating temperature of 125℃. With fast response, powerful driving capability, ultra-low power consumption and excellent temperature decay resistance, it perfectly matches imported equivalent chips and serves as a cost-effective domestic alternative for medium and small-power power supplies, industrial control and intelligent hardware circuits.

1. Core Electrical Parameters

Supply Voltage (VDD): 24V Peak Output Drive Current (IO): 4A Quiescent Operating Current (IDDq): 183μA Maximum Operating Temperature (TA): 125℃ Package: SOT-23-5L

2. Core Product Advantages

2.1 4A Symmetrical High-Current Driving for Higher Speed and Lower Loss

Equipped with 4A symmetrical peak sink and source driving current, the SL27517A features strong and balanced driving performance. It rapidly charges and discharges the gate capacitance of power devices, effectively shortening the turn-on and turn-off time of MOSFETs and IGBTs. This significantly reduces switching and conduction losses under high-frequency operating conditions, improves the overall conversion efficiency of power supplies, and eliminates device overheating, jitter and switching delay, making it ideal for various high-frequency power conversion scenarios.

2.2 24V Wide-Voltage Compatibility for Diverse Application Scenarios

The chip supports a maximum operating voltage of 24V, exceeding the performance of conventional low-voltage driver ICs. It is compatible with mainstream 12V and 24V industrial power supply systems, covering power supply demands of consumer electronics, industrial equipment, new energy small home appliances and more. With sufficient voltage margin, it resists minor grid fluctuations and voltage spikes, greatly enhancing operational stability.

2.3 Ultra-Low 183μA Quiescent Current for Energy Saving

Featuring an ultra-low quiescent operating current of only 183μA, the device achieves extremely low standby power consumption. It effectively reduces the overall static power loss during long-term no-load and light-load operation, perfectly adapting to battery-powered equipment, low-power industrial control devices and intelligent terminals with strict power consumption requirements, balancing high performance and low energy consumption.

2.4 125℃ High-Temperature Resistance for Industrial-Grade Reliability

Supporting a wide operating temperature range from -40℃ to 125℃, the chip maintains stable parameters without obvious attenuation in high-temperature environments. It delivers excellent temperature drift resistance and aging resistance, operating steadily in harsh high-temperature conditions such as industrial workshops, outdoor equipment and high-power heating devices. It avoids drive failure and switching anomalies caused by high temperatures and fully meets industrial-grade quality standards.

2.5 Miniature Package for High-Density Circuit Design

Adopting the ultra-compact SOT-23-5L surface-mount package with regular pin layout, the chip supports automated SMT mass mounting and greatly saves PCB layout space. It conforms to the miniaturization, thinning and high-density wiring trends of electronic equipment, featuring convenient mass production and wide compatibility.

2.6 Highly Compatible Domestic Replacement with Superior Cost and Supply Advantages

The SL27517A is pin-to-pin compatible with mainstream imported gate driver chips of the same specifications in terms of performance, pins and package, requiring no modification to original circuit designs. Backed by Slkor’s mature IDM production system, the device features stable batch consistency, sufficient supply and high cost performance, effectively solving the pain points of long lead times, high costs and supply shortages of imported chips.

3. Main Application Fields

Leveraging its comprehensive advantages of high-current driving, wide-voltage adaptation, low power consumption and high-temperature resistance, the Slkor SL27517A is widely used in various power conversion and motor control scenarios, including AC/DC switching power supplies, DC-DC converters, industrial regulated power supplies, power tool drive circuits, small motor speed control, new energy small appliance electronic control modules, UPS power supplies, smart home power control and IoT industrial control equipment.

4. Engineering Design Guidelines

Voltage Design: Keep the operating voltage within the rated 24V range and reserve sufficient voltage margin. Connect a 0.1μF decoupling capacitor close to the power pin to filter high-frequency noise and ensure stable driving signals.

Drive Matching: Match the series drive resistor reasonably according to the gate capacitance of power devices to optimize switching speed, suppress switching oscillation and voltage spikes, and balance switching loss and circuit stability.

High-Temperature Operation: Proper derating is recommended for long-term operation near 125℃. Optimize PCB heat dissipation layout to avoid device aging and service life reduction caused by prolonged high-temperature operation.

PCB Layout: Design short and thick power drive traces to reduce parasitic inductance and impedance. Separate signal traces from power traces to avoid electromagnetic interference and improve the overall anti-interference capability of the equipment.

5. Product Summary

The Slkor SL27517A is a high-performance single-channel low-side gate driver IC that integrates 24V wide-voltage operation, 4A high-current symmetrical driving, 183μA ultra-low quiescent power consumption, 125℃ industrial-grade high-temperature resistance and miniature packaging. It features powerful driving capability, low power consumption, high stability and excellent compatibility. As a high-quality domestic alternative to imported chips, it is applicable to most medium and small-power power conversion and motor drive circuits, serving as a reliable and preferred gate driver device for circuit design in industrial control, consumer electronics and new energy equipment.
