Fast Recovery Diode The internal structure of fast recovery diode is different from ordinary PN junction diode, which belongs to PIN junction diode, i.e., the base region I is added in the middle of the P-type silicon material and N-type silicon material to form the PIN silicon wafer. Because the base region is very thin, the reverse recovery charge is very small, so the reverse recovery time of the fast recovery diode is shorter, the forward voltage drop is lower, and the reverse breakdown voltage (withstand voltage value) is higher.

Products Documents Data

Datasheet 3D Model

ES1DF Fast Recovery Rectifier Diode SMAF VRRM(V)：200V IO(A)：1A VF(V)：1V IR(A)：5μA trr(ns)：35ns Package：SMAF

Datasheet 3D Model

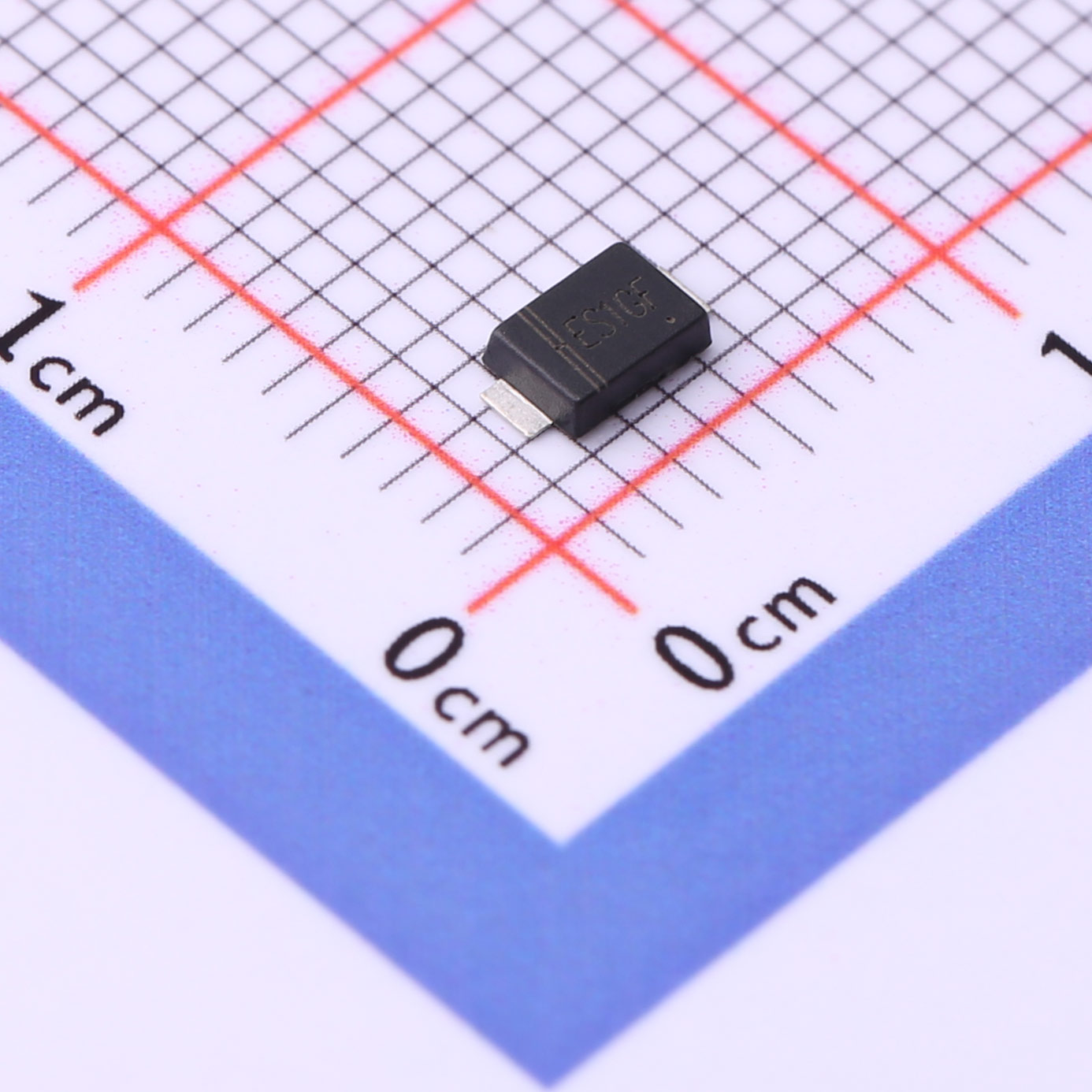

ES1GF Fast Recovery Rectifier Diode SMAF VRRM(V)：400V IO(A)：1A VF(V)：1.25V IR(A)：5μA trr(ns)：35ns Package：SMAF

Datasheet 3D Model

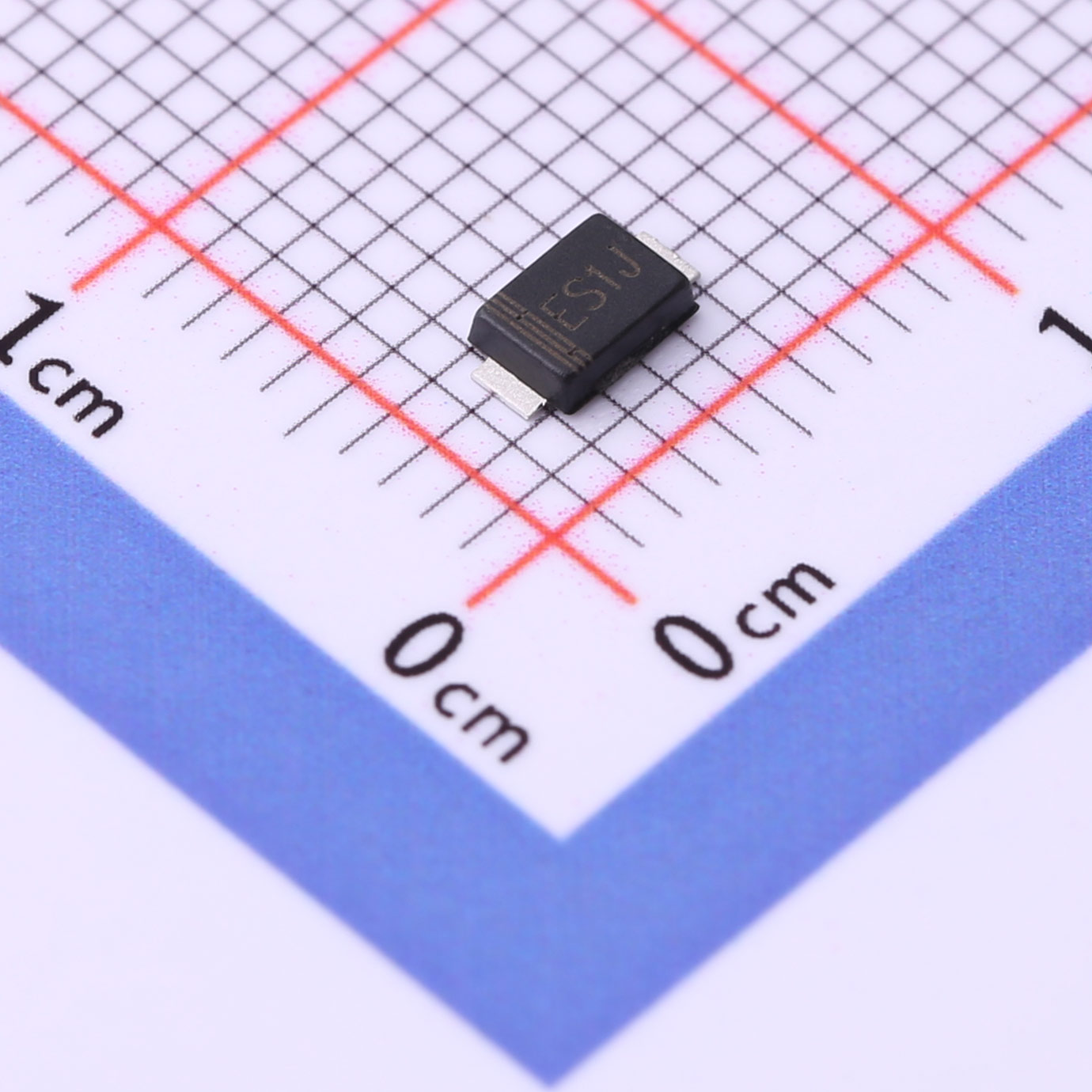

ES1JF Fast Recovery Rectifier Diode SMAF VRRM(V)：600V IO(A)：null VF(V)：1.68V IR(A)：5uA trr(ns)：35ns Package：SMAF

Datasheet 3D Model

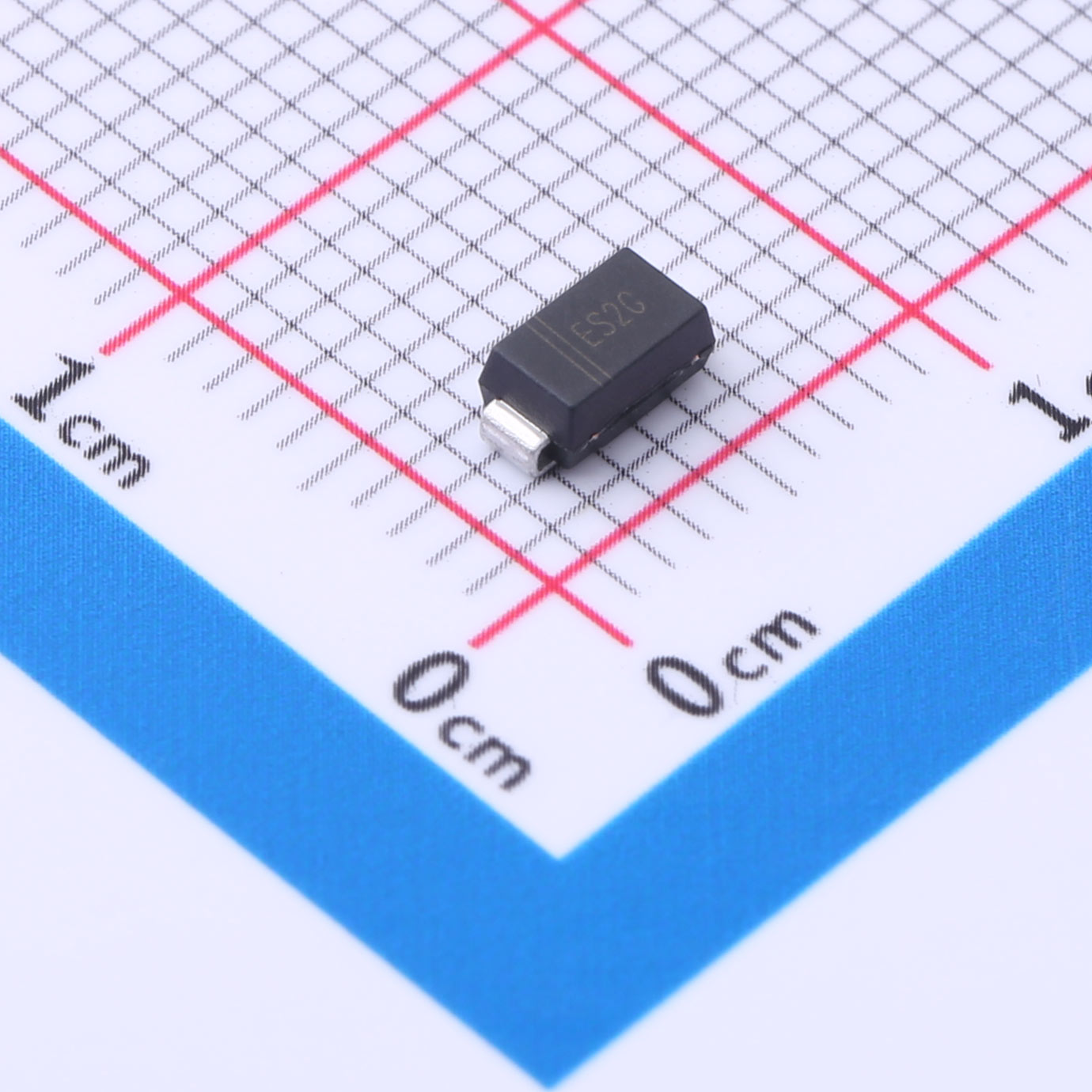

ES2G Fast Recovery Rectifier Diode SMA VRRM(V)：null IO(A)：null VF(V)：1.25V IR(A)：5uA trr(ns)：35ns Package：SMA

Datasheet 3D Model

ES2G Fast Recovery Rectifier Diode SMC VRRM(V)：400V IO(A)：2A VF(V)：1.25V IR(A)：5uA trr(ns)：35ns Package：SMA

Datasheet 3D Model

ES2GF Fast Recovery Rectifier Diode SMAF VRRM(V)：400V IO(A)：1A VF(V)：1.25V IR(A)：5μA trr(ns)：35ns Package：SMAF

Datasheet 3D Model

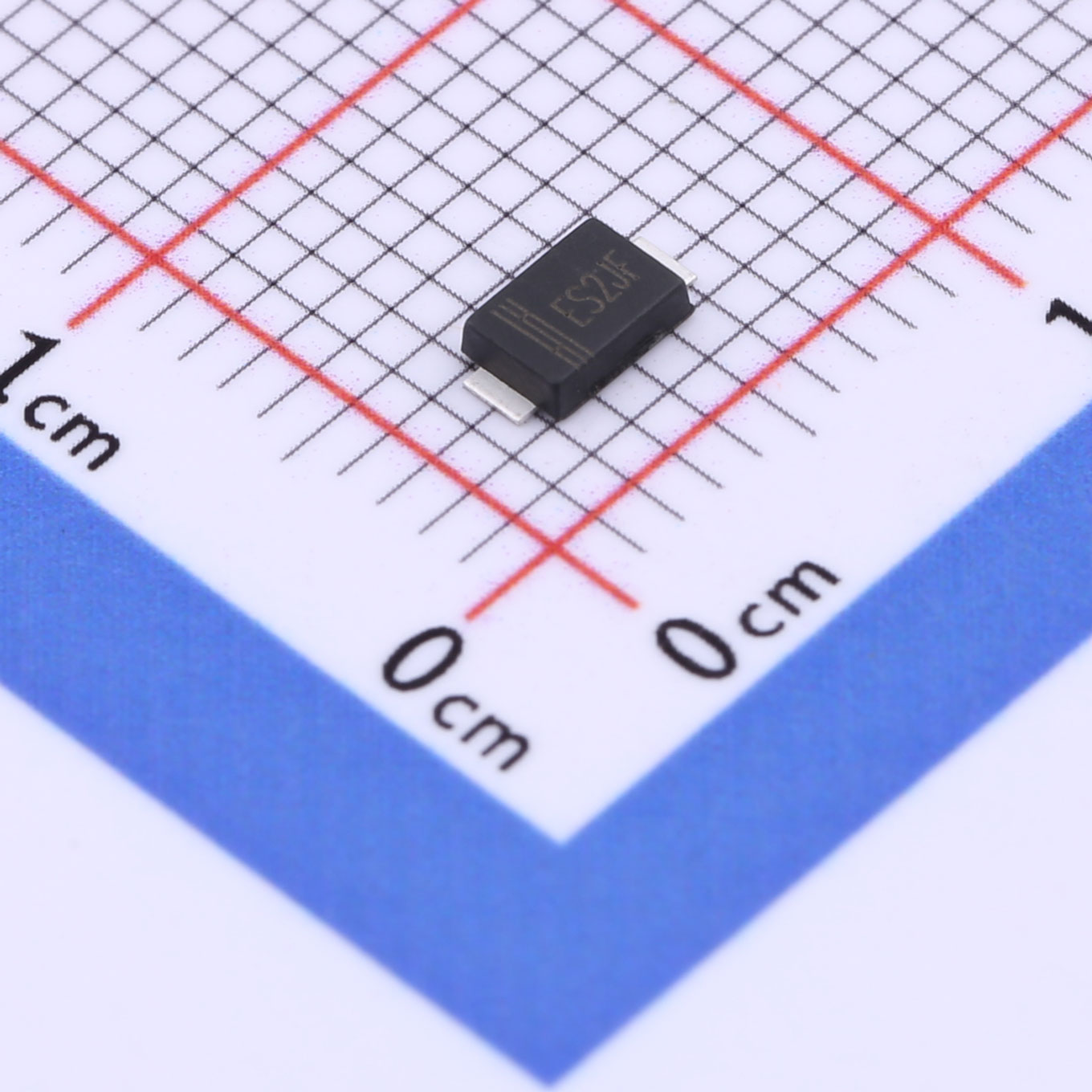

ES2JF Fast Recovery Rectifier Diode SMAF VRRM(V)：600V IO(A)：1A VF(V)：1.68V IR(A)：5μA trr(ns)：35ns Package：SMAF

Datasheet 3D Model

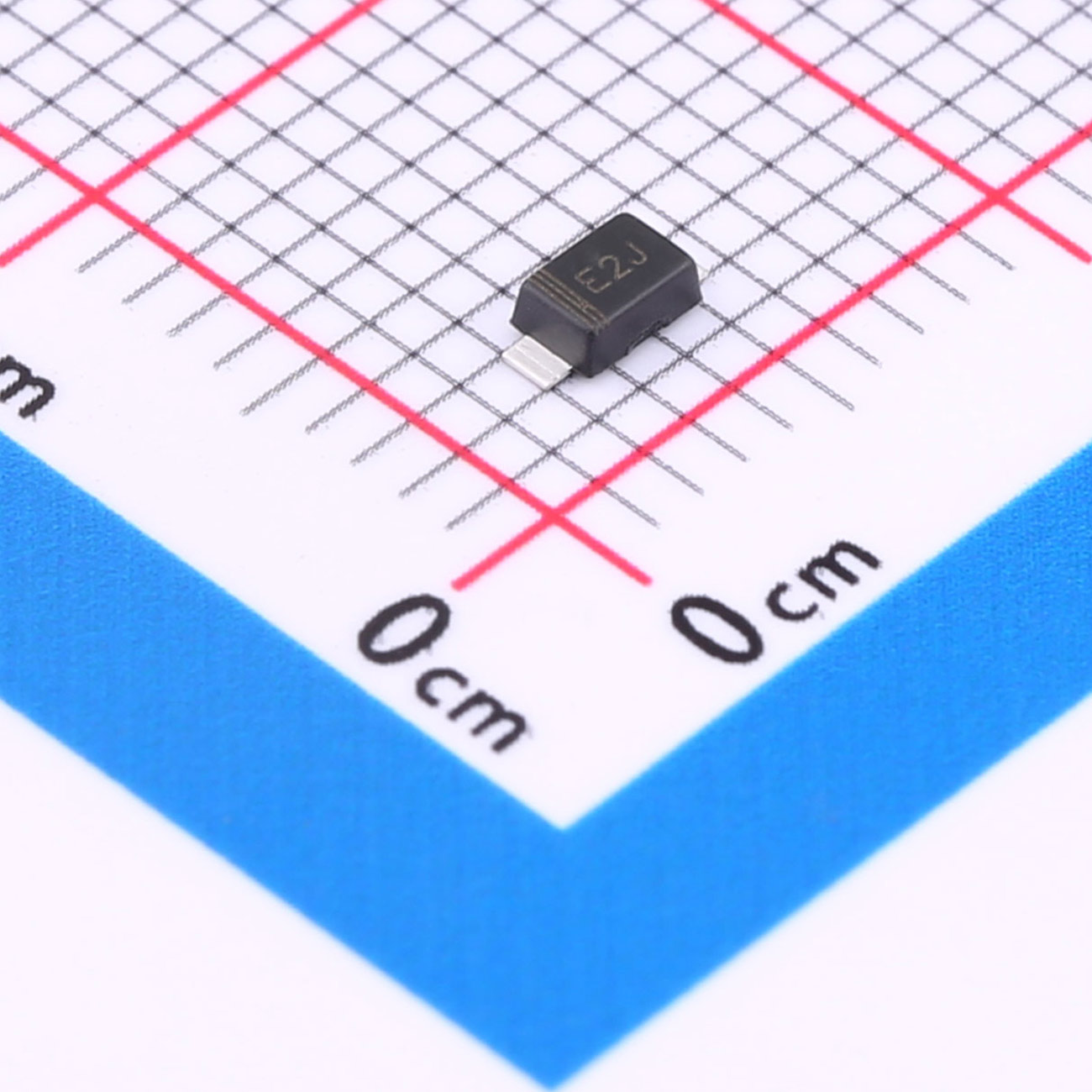

ES2JW Fast Recovery Rectifier Diode SOD-123FL VRRM(V)：600V IO(A)：2A VF(V)：1.7V IR(A)：5μA trr(ns)：35ns Package：SOD-123FL

Datasheet 3D Model

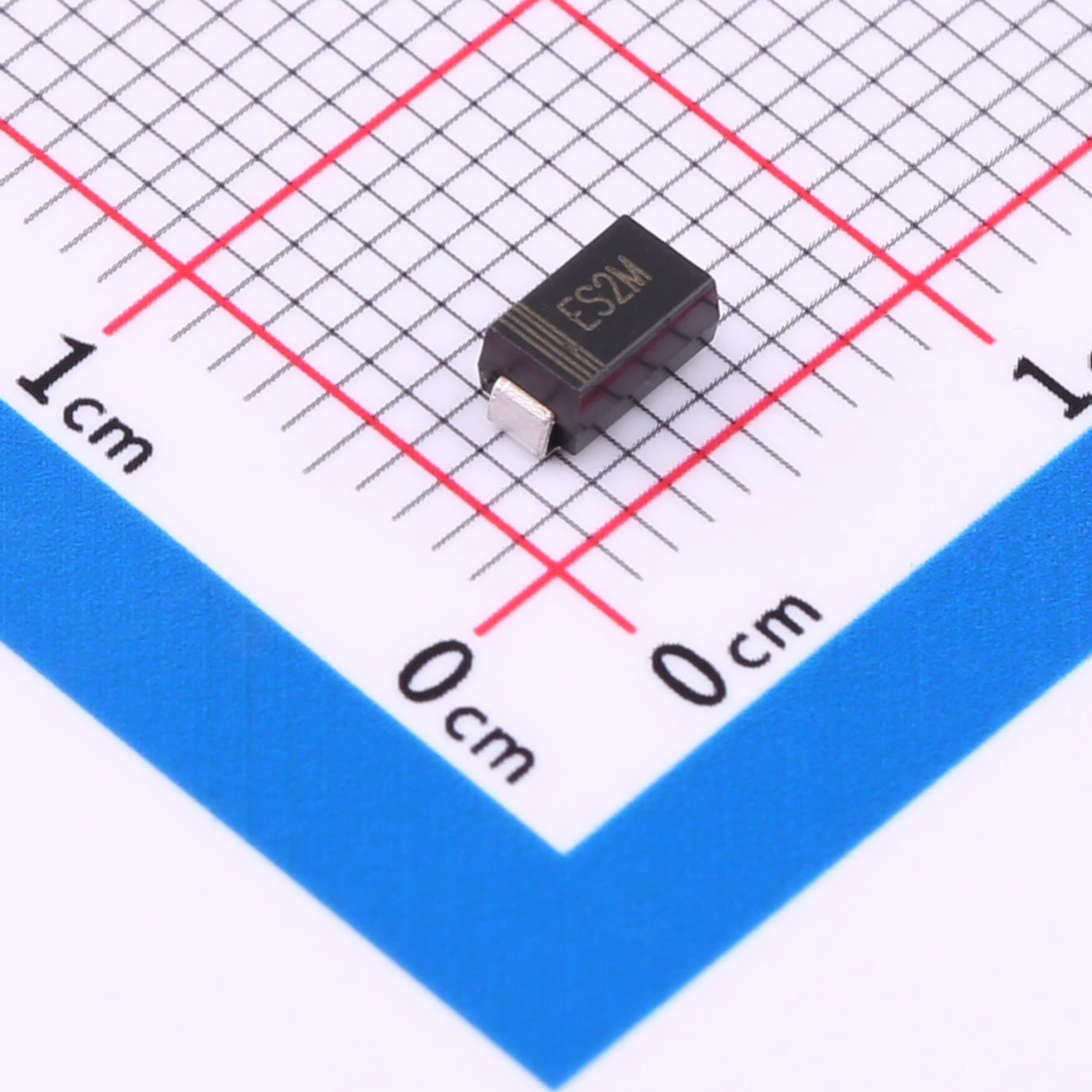

ES2M Fast Recovery Rectifier Diode SMA VRRM(V)：1000V IO(A)：2A VF(V)：1.7V IR(A)：5μA trr(ns)：75ns Package：SMA

Datasheet 3D Model

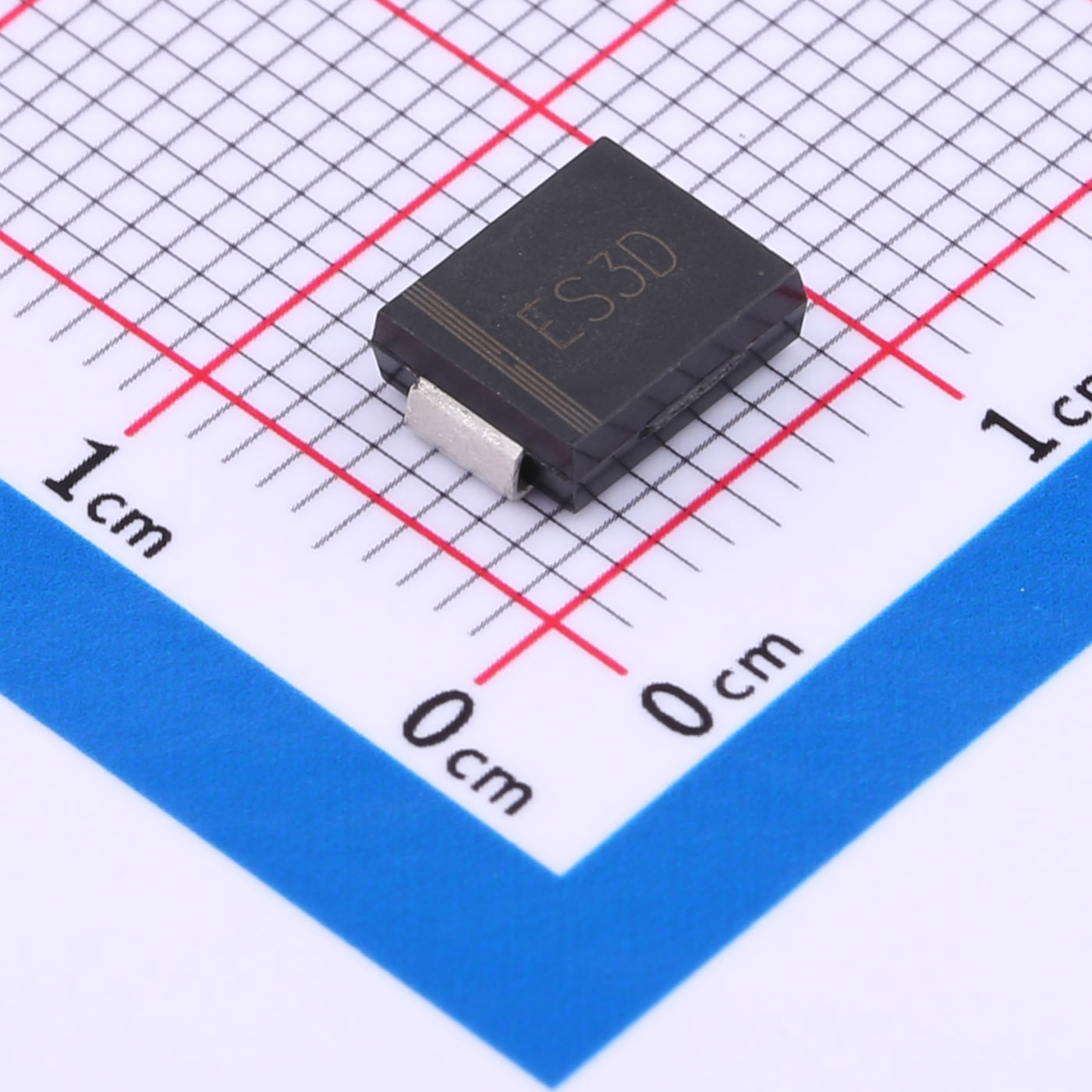

ES3DC Fast Recovery Rectifier Diode SMC VRRM(V)：200V IO(A)：3A VF(V)：1.25V IR(A)：5μA trr(ns)：35ns Package：SMC

Datasheet 3D Model

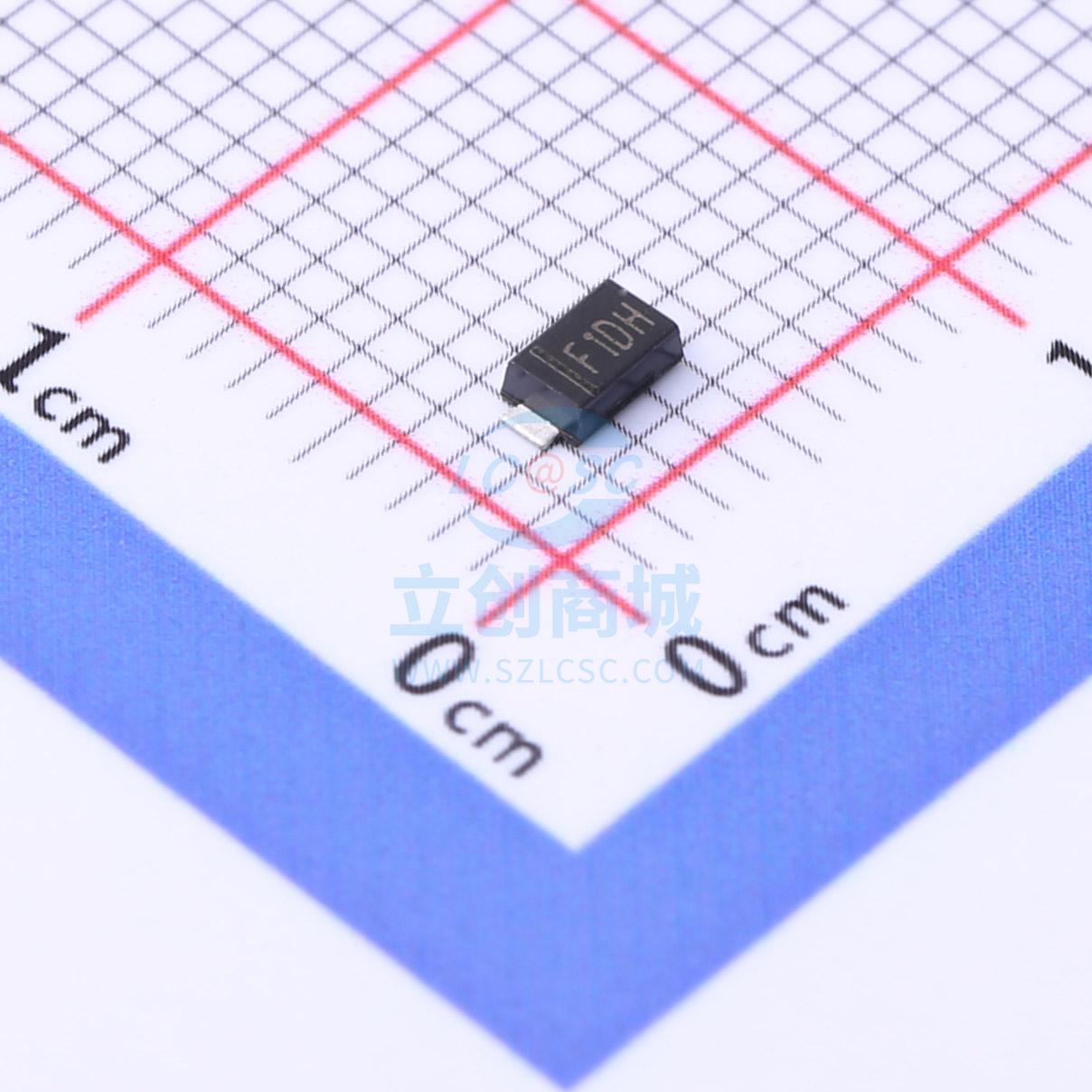

F1D Ultra Fast Recovery Diode SOD-123FL VRRM(V)：200V IO(A)：1A VF(V)：1.3V IR(A)：5.0mA trr(ns)：150ns Package：SOD-123FL

Datasheet 3D Model

F1J Ultra Fast Recovery Diode SOD-123FL VRRM(V)：600V IO(A)：1.0A VF(V)：1.3V IR(A)：5.0mA trr(ns)：250ns Package：SOD-123FL

Datasheet 3D Model

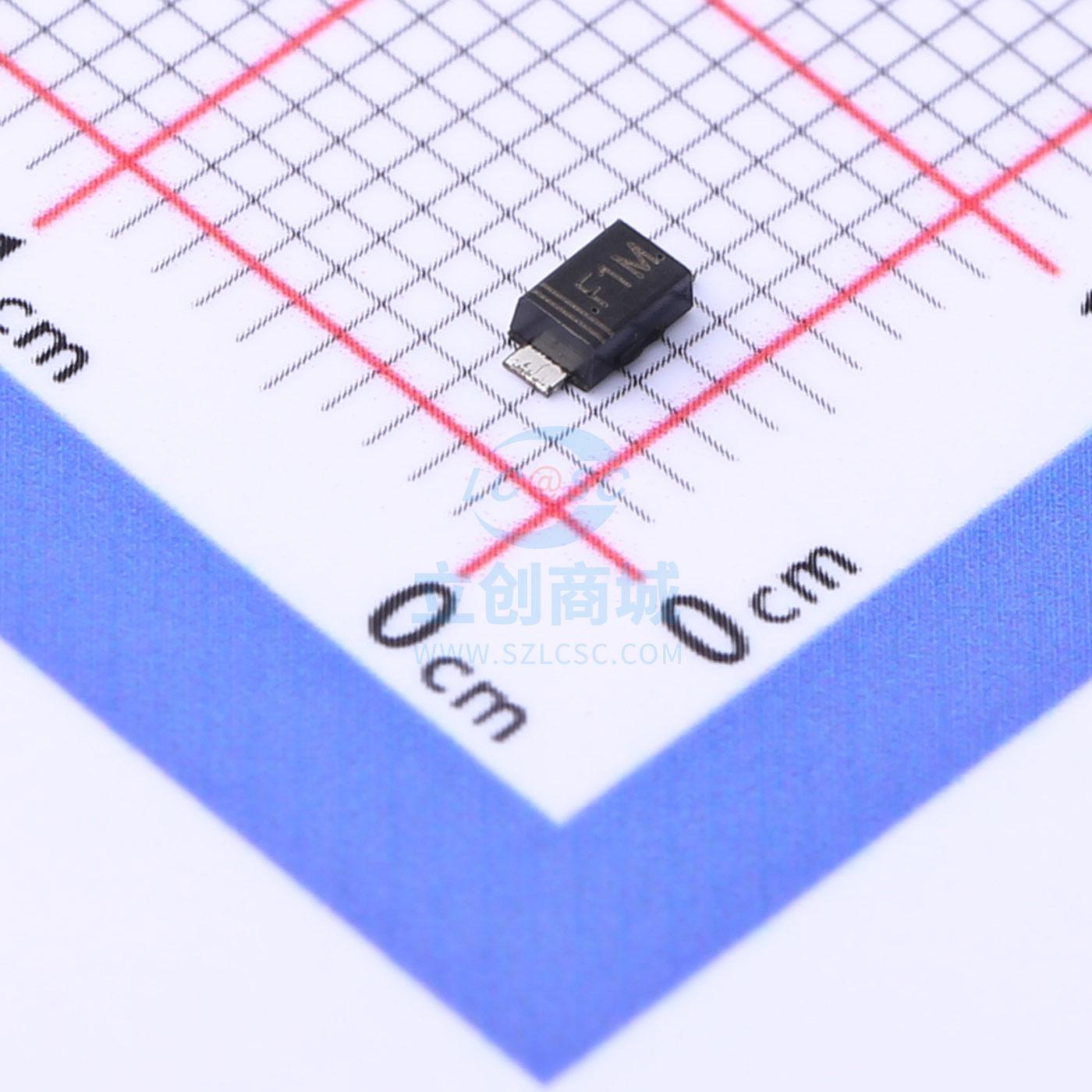

F1M Ultra Fast Recovery Diode SOD-123FL VRRM(V)：1000V IO(A)：1.0A VF(V)：1.3V IR(A)：5.0mA trr(ns)：500ns Package：SOD-123FL

Datasheet 3D Model

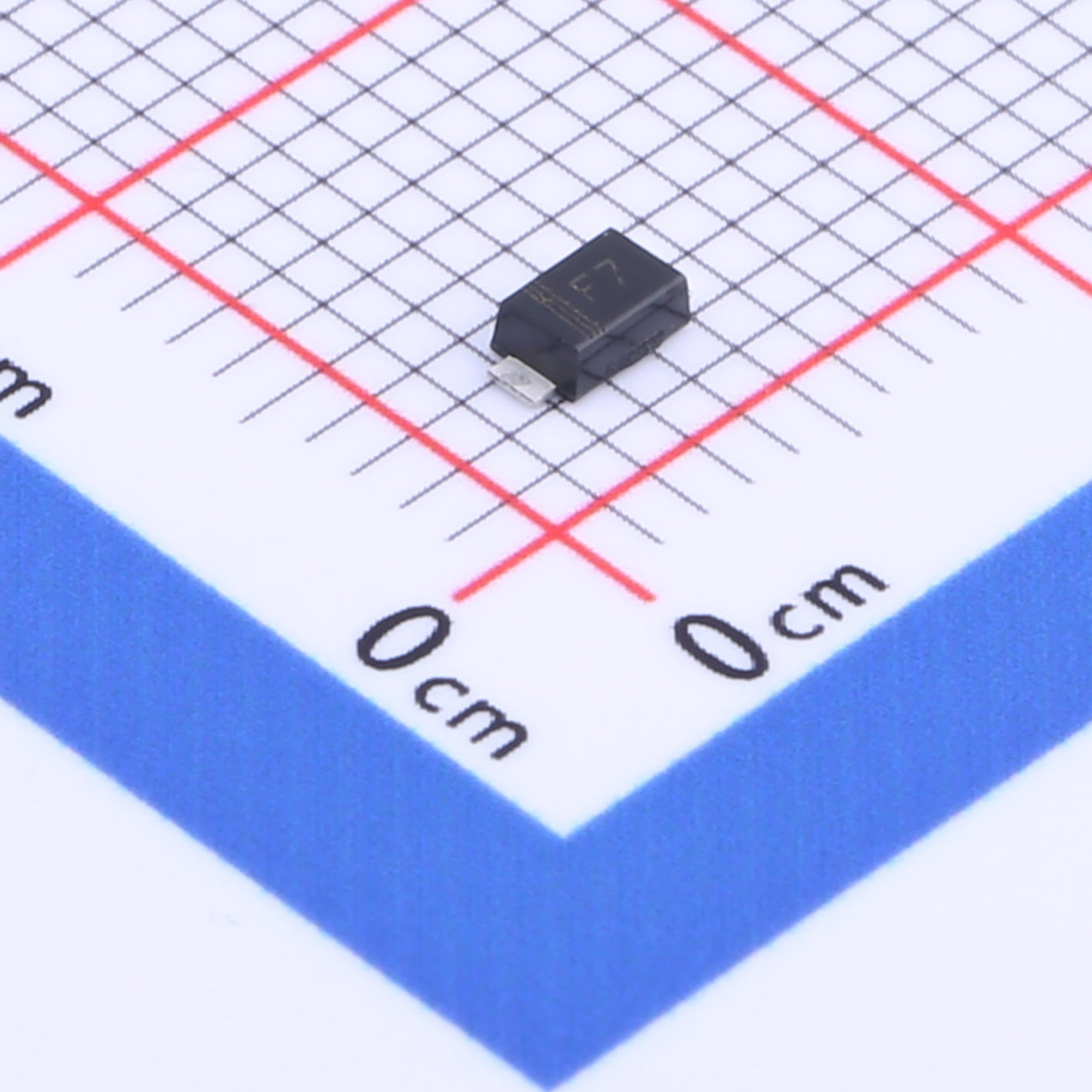

FR107 Ultra Fast Recovery Diode SOD-123FL VRRM(V)：1000V IO(A)：1A VF(V)：1.3V IR(A)：5μA trr(ns)：500ns Package：SOD-123FL

Datasheet 3D Model

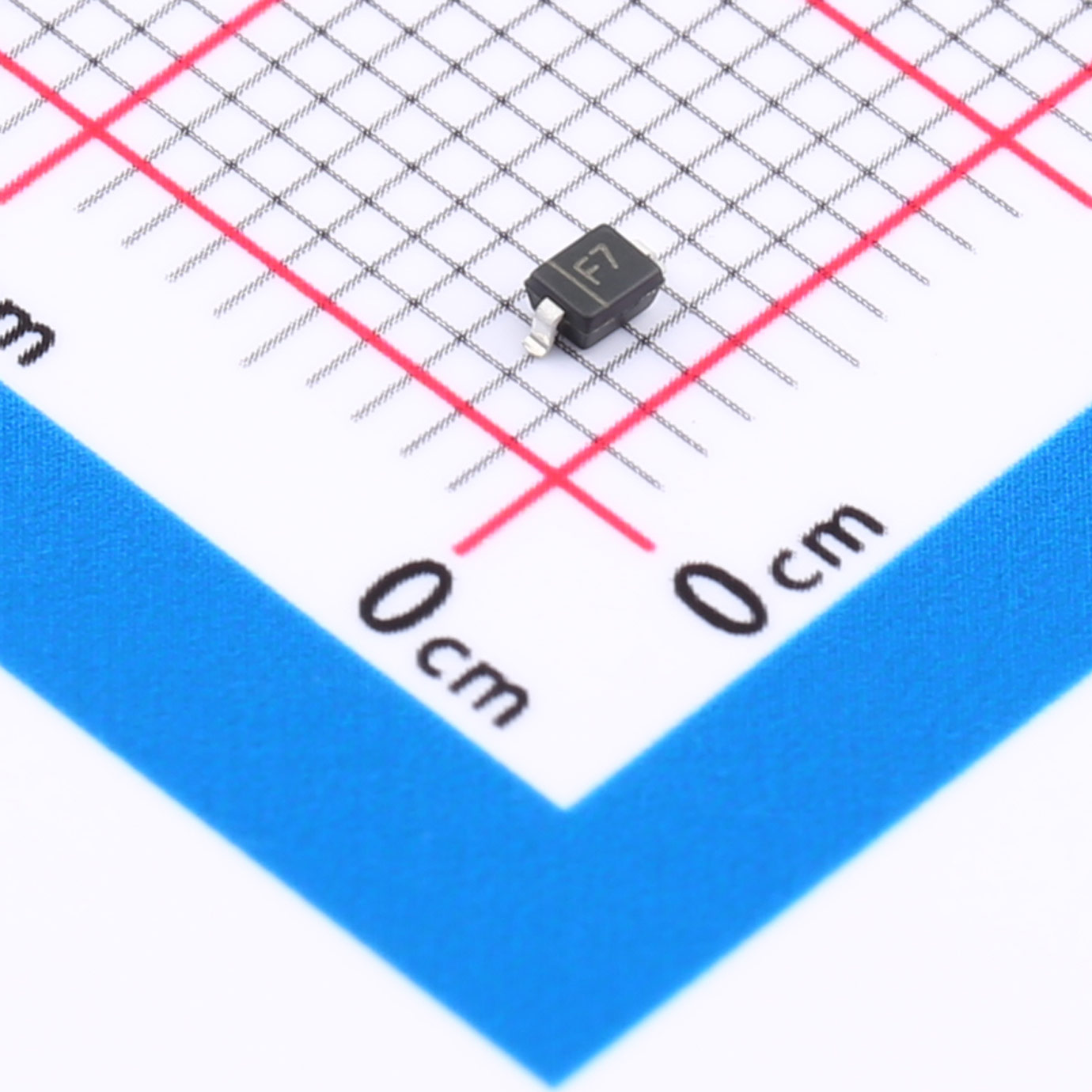

FR107WS Fast Recovery Rectifier Diode SOD-323 VRRM(V)：1000V IO(A)：1A VF(V)：1.3V IR(A)：5μA trr(ns)：500ns Package：SOD-323

Datasheet 3D Model

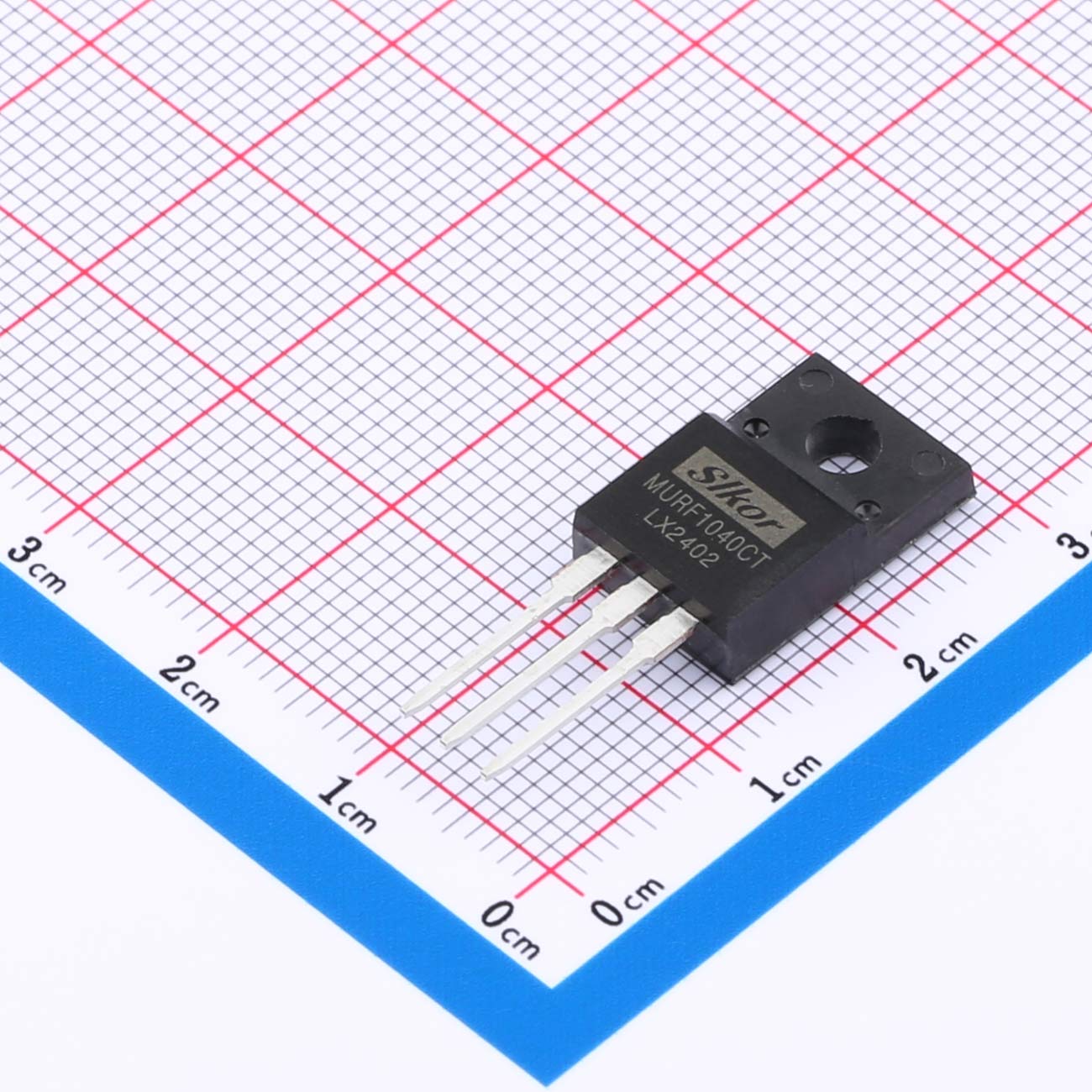

MURF1040CT Fast Recovery Rectifier Diode TO-220F VRRM(V)：400V IO(A)：5A VF(V)：0.92V IR(A)：0.01μA trr(ns)：30ns Package：TO-220F

Datasheet 3D Model

RS1DF Fast Recovery Rectifier Diode SMAF VRRM(V)：200V IO(A)：1A VF(V)：1.3V IR(A)：5μA trr(ns)：150ns Package：SMAF

Datasheet 3D Model

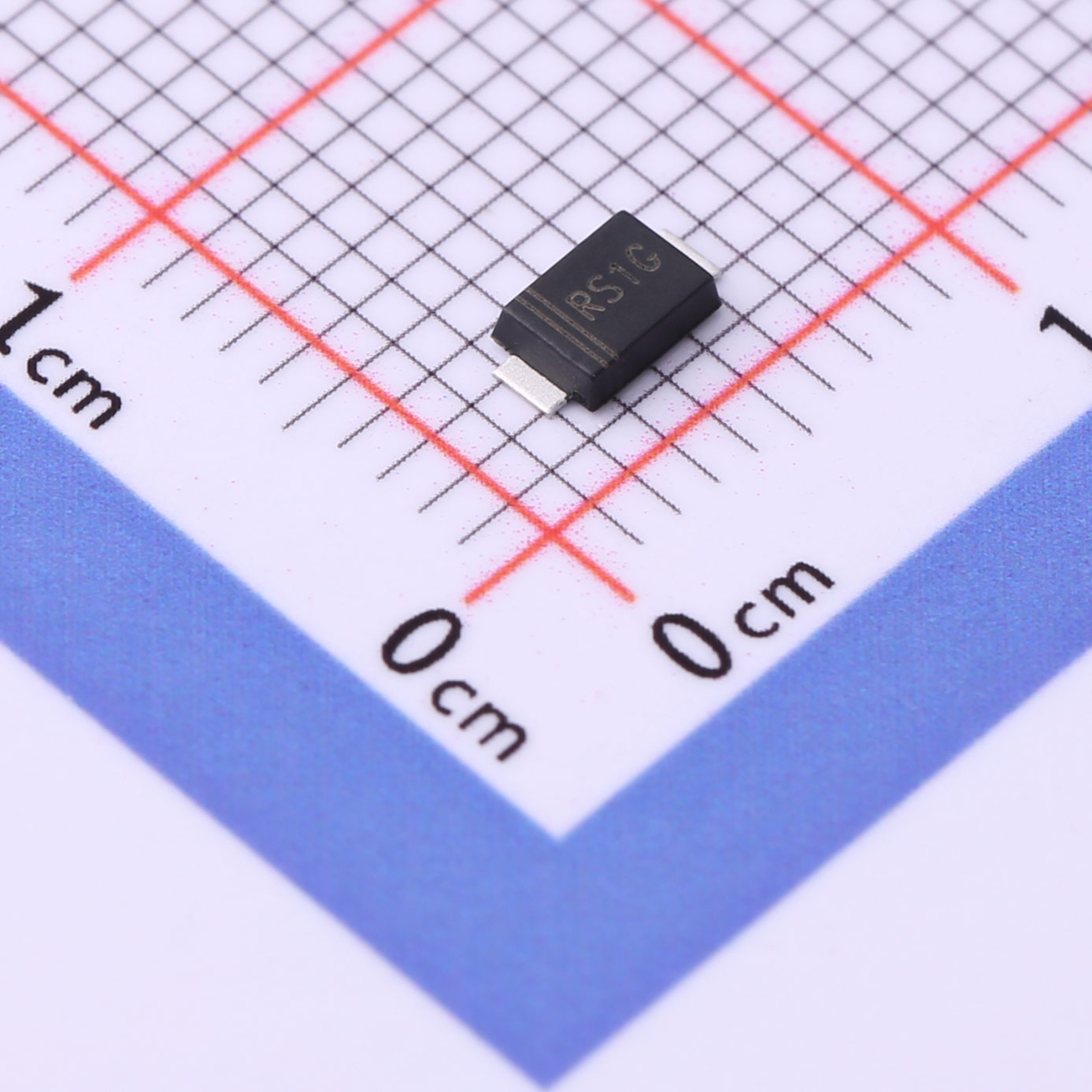

RS1GF Fast Recovery Rectifier Diode SMAF VRRM(V)：400V IO(A)：1A VF(V)：1.3V IR(A)：5μA trr(ns)：150ns Package：SMAF

Datasheet 3D Model

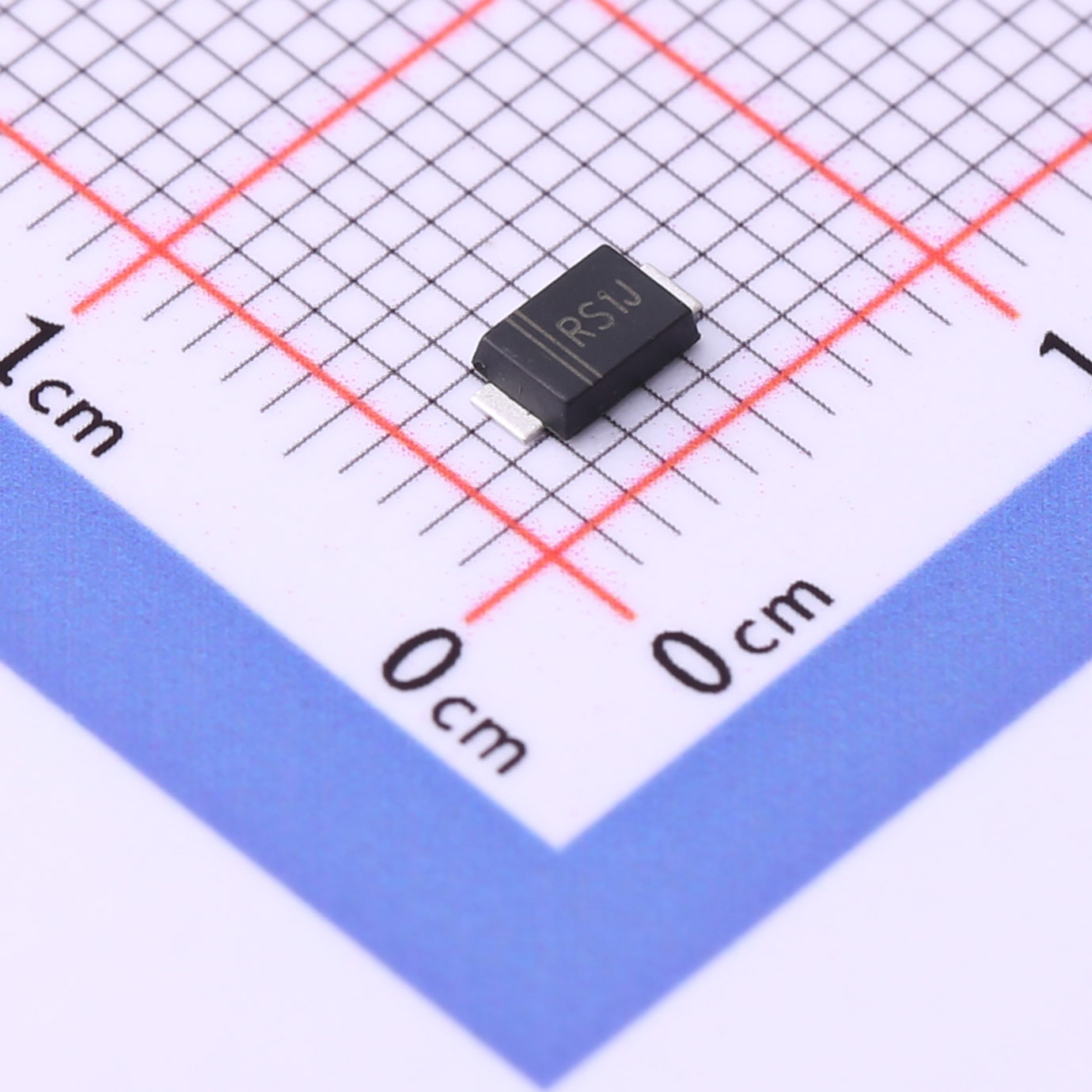

RS1JF Fast Recovery Rectifier Diode SMAF VRRM(V)：600V IO(A)：1A VF(V)：1.3V IR(A)：5μA trr(ns)：250ns Package：SMAF

Datasheet 3D Model

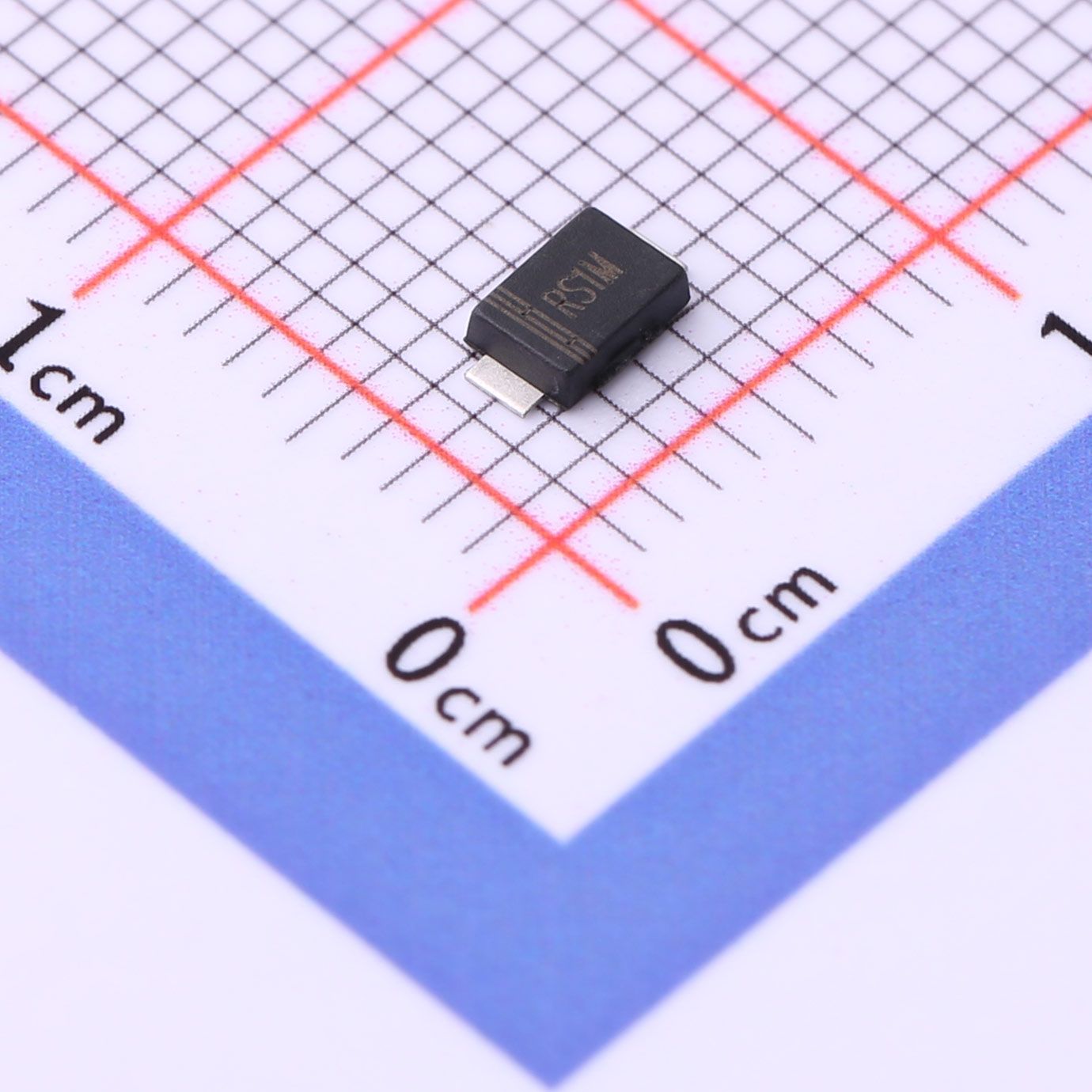

RS1MF Fast Recovery Rectifier Diode SMAF VRRM(V)：1000V IO(A)：null VF(V)：1.3V IR(A)：5uA trr(ns)：500ns Package：SMAF

ES1DF Fast Recovery Rectifier Diode SMAF ES1DF	200V	1A	1V	5μA	35ns	SMAF
ES1GF Fast Recovery Rectifier Diode SMAF ES1GF	400V	1A	1.25V	5μA	35ns	SMAF
ES1JF Fast Recovery Rectifier Diode SMAF ES1JF	600V	null	1.68V	5uA	35ns	SMAF
ES2G Fast Recovery Rectifier Diode SMA ES2G	null	null	1.25V	5uA	35ns	SMA
ES2G Fast Recovery Rectifier Diode SMC	400V	2A	1.25V	5uA	35ns	SMA
ES2GF Fast Recovery Rectifier Diode SMAF ES2GF	400V	1A	1.25V	5μA	35ns	SMAF
ES2JF Fast Recovery Rectifier Diode SMAF ES2JF	600V	1A	1.68V	5μA	35ns	SMAF
ES2JW Fast Recovery Rectifier Diode SOD-123FL	600V	2A	1.7V	5μA	35ns	SOD-123FL
ES2M Fast Recovery Rectifier Diode SMA	1000V	2A	1.7V	5μA	75ns	SMA
ES3DC Fast Recovery Rectifier Diode SMC	200V	3A	1.25V	5μA	35ns	SMC
F1D Ultra Fast Recovery Diode SOD-123FL F1D	200V	1A	1.3V	5.0mA	150ns	SOD-123FL
F1J Ultra Fast Recovery Diode SOD-123FL F1J	600V	1.0A	1.3V	5.0mA	250ns	SOD-123FL
F1M Ultra Fast Recovery Diode SOD-123FL F1M	1000V	1.0A	1.3V	5.0mA	500ns	SOD-123FL
FR107 Ultra Fast Recovery Diode SOD-123FL	1000V	1A	1.3V	5μA	500ns	SOD-123FL
FR107WS Fast Recovery Rectifier Diode SOD-323	1000V	1A	1.3V	5μA	500ns	SOD-323
MURF1040CT Fast Recovery Rectifier Diode TO-220F	400V	5A	0.92V	0.01μA	30ns	TO-220F
RS1DF Fast Recovery Rectifier Diode SMAF RS1DF	200V	1A	1.3V	5μA	150ns	SMAF
RS1GF Fast Recovery Rectifier Diode SMAF RS1GF	400V	1A	1.3V	5μA	150ns	SMAF
RS1JF Fast Recovery Rectifier Diode SMAF	600V	1A	1.3V	5μA	250ns	SMAF
RS1MF Fast Recovery Rectifier Diode SMAF RS1MF	1000V	null	1.3V	5uA	500ns	SMAF
