ESD Diode TVS diode and ESD diode of these two circuit protection devices, the two work on the same principle, but in power, application occasions, packaging form, etc. are very different, specifically in: ESD diodes, the main function is to prevent static electricity, however, anti-static requirements of the junction capacitance value of the low value, generally in the 1 - 3.5PF between the best; and the junction capacitance value of TVS diodes is relatively high.ESD diodes, the main application of the ESD diodes are mainly used for board level protection; TVS diodes are used for primary and secondary protection.

Products Documents Data

Datasheet 3D Model

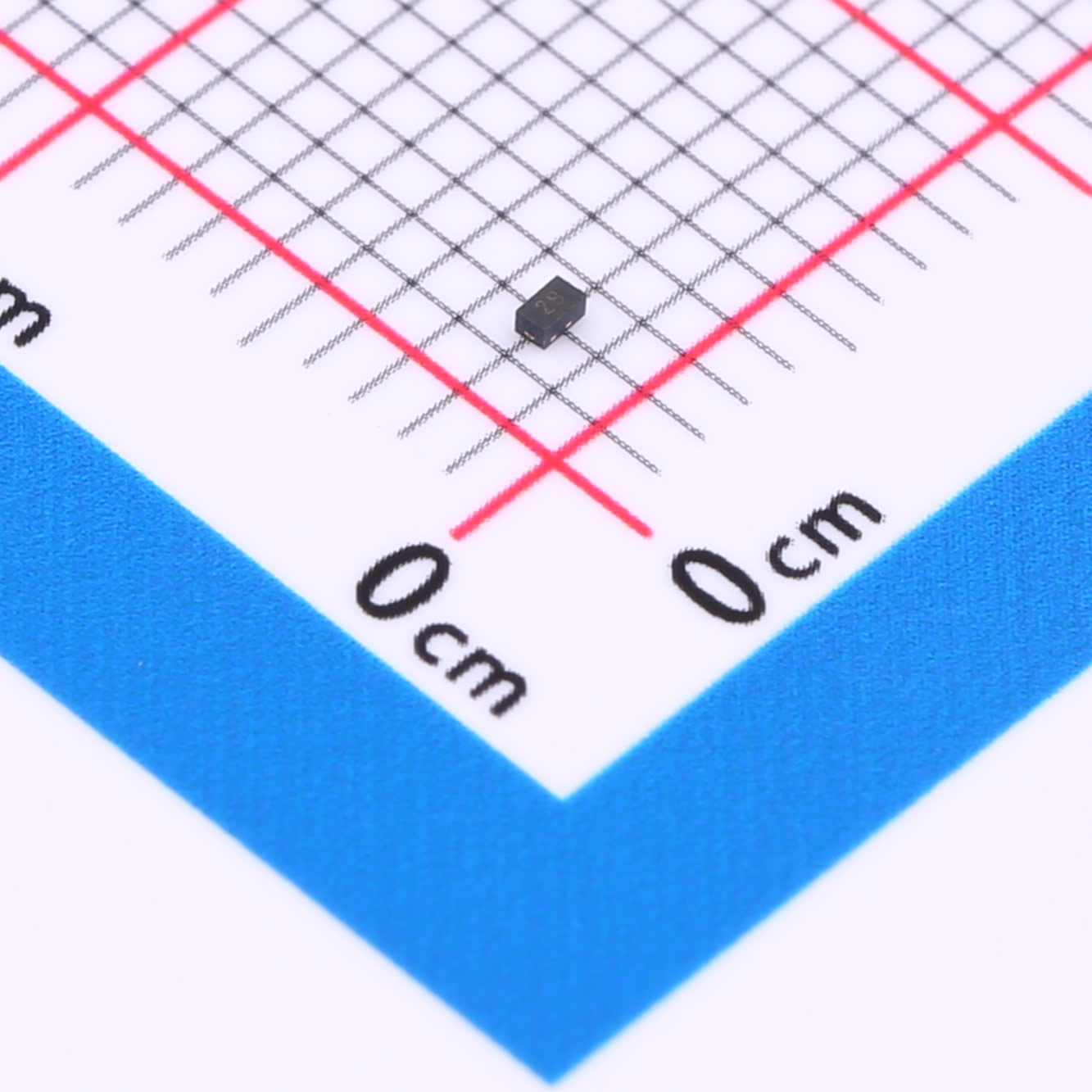

AU0511P1 ESD Protection Diode SOD-323 VRWM(V)：5V VBR min(V)：5.6V IR(uA)：1μA VC(V)：9.5V CJ(pF)：15 Package：DFN1006

Datasheet 3D Model

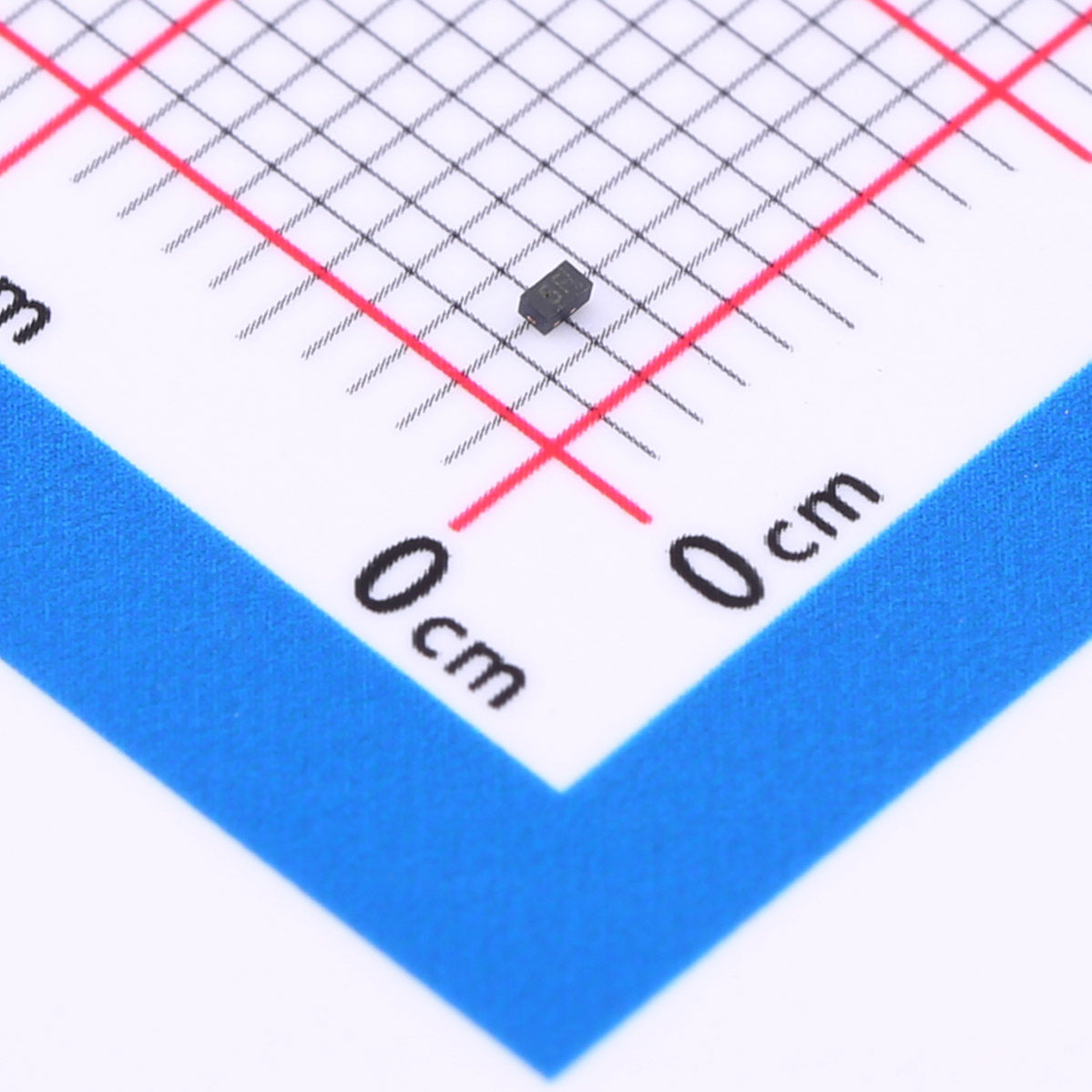

AZ5325-01F ESD Protection Devices DFN1006 VRWM(V)：5V VBR min(V)：6.0V IR(uA)：0.1μA VC(V)：11V CJ(pF)：0.45pF Package：DFN1006

Datasheet 3D Model

AZC199-04 ESD Protection Devices SOD-523 VRWM(V)：5V VBR min(V)：6V IR(uA)：1μA VC(V)：15V CJ(pF)：0.4pF Package：SOD-523

Datasheet 3D Model

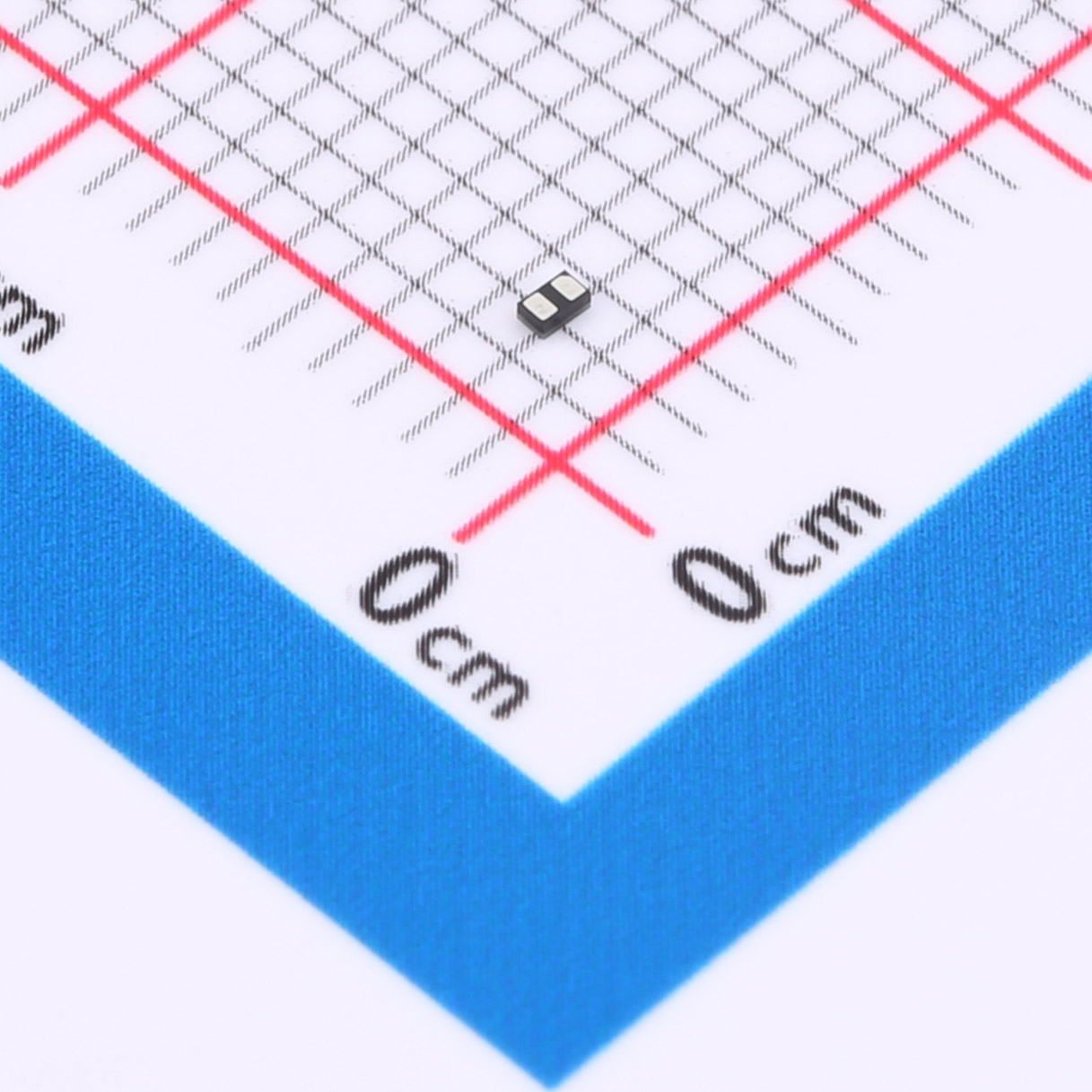

BTRD04A035 ESD Protection Diode DFN1006 VRWM(V)：5 VBR min(V)：8.4 IR(uA)：0.1 VC(V)：10 CJ(pF)：18 Package：DFN1006

Datasheet 3D Model

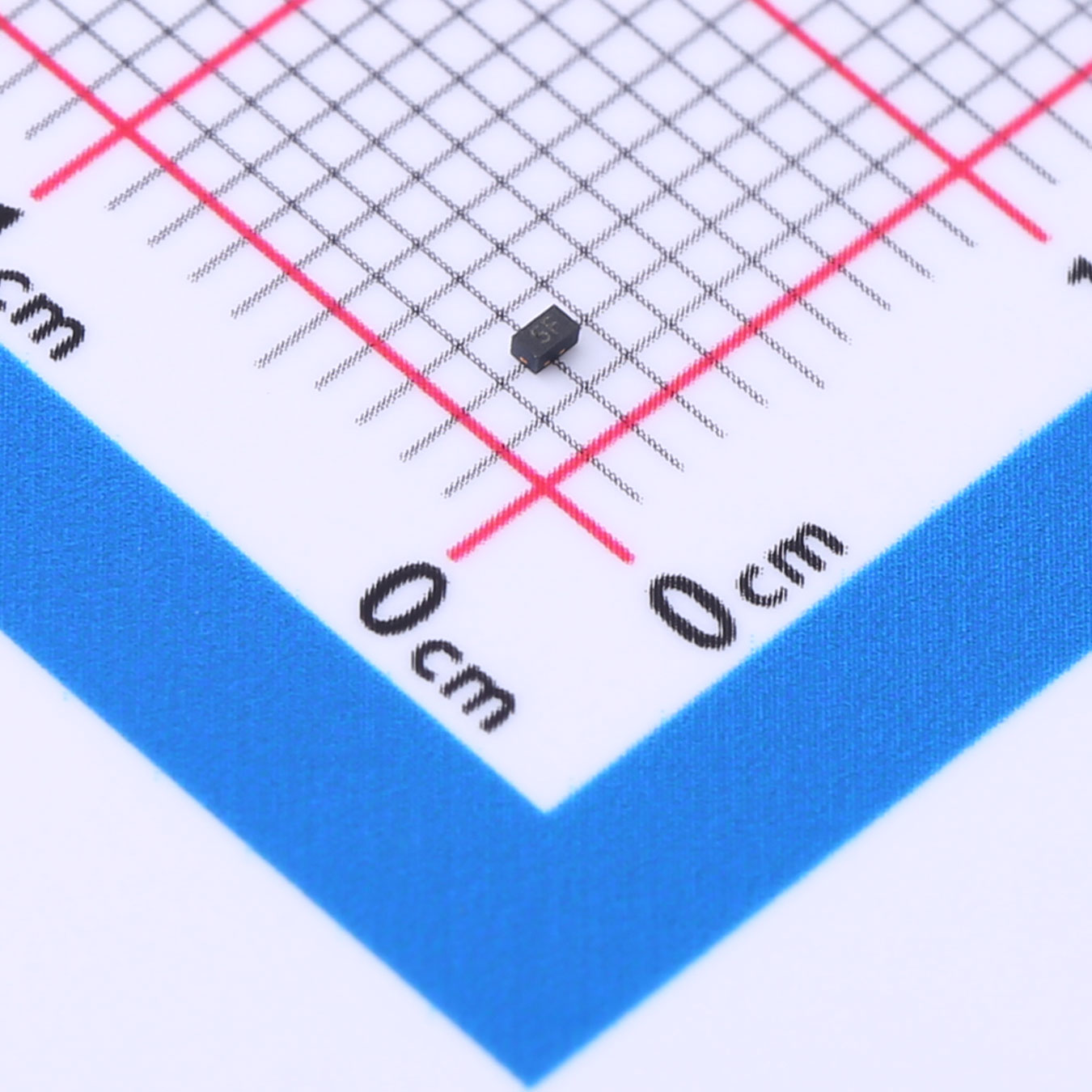

BV-FA05UCA ESD Protection Devices DFN1006 VRWM(V)：5V VBR min(V)：6.0V IR(uA)：0.1μA VC(V)：11V CJ(pF)：0.45pF Package：DFN1006

Datasheet 3D Model

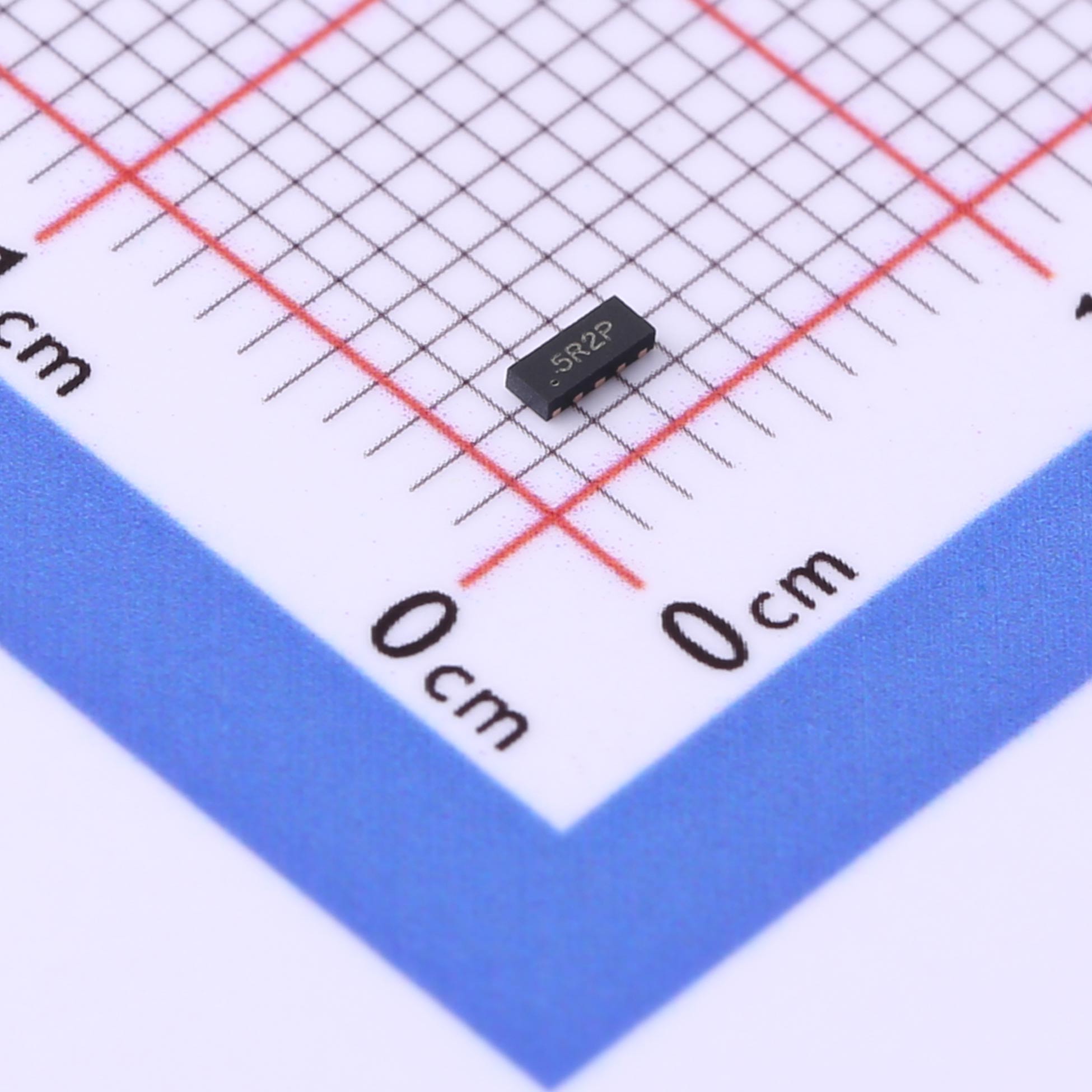

CESD2510LC5VU ESD Protection Devices DFN2510 VRWM(V)：5V VBR min(V)：6V IR(uA)：1μA VC(V)：16V@5A CJ(pF)：0.8pF Package：DFN2510

Datasheet 3D Model

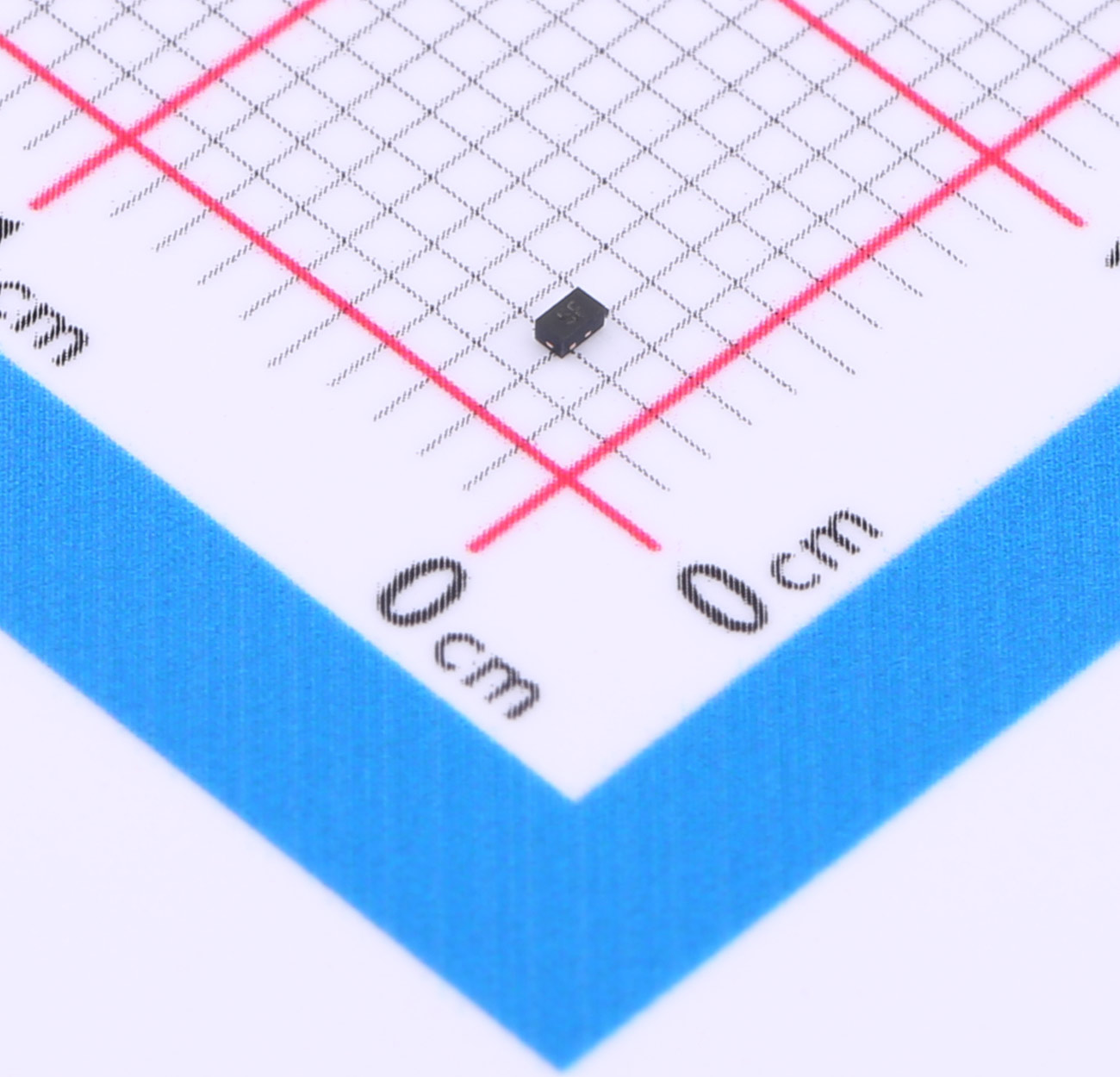

CESD882UC5VB ESD Protection Devices DFN1006 VRWM(V)：5V VBR min(V)：6.0V IR(uA)：0.1μA VC(V)：11V CJ(pF)：0.45pF Package：DFN1006

Datasheet 3D Model

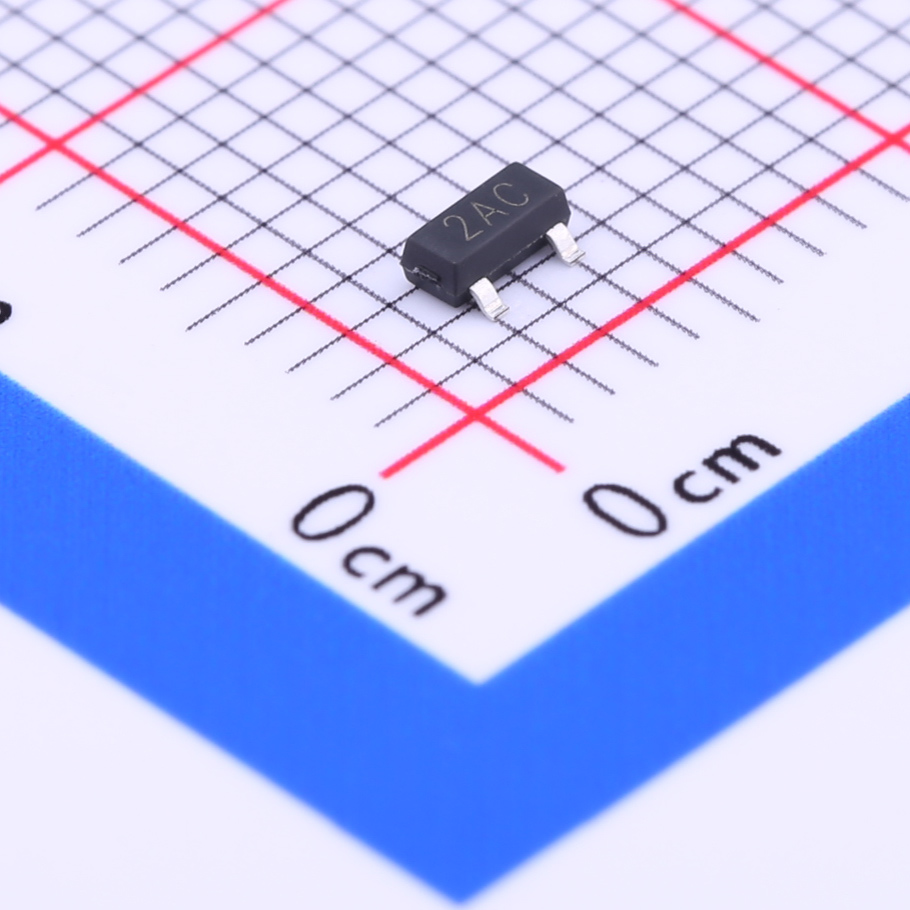

ESD protection diode SLSOT05C SOT-23 VRWM(V)：5V VBR min(V)：6V IR(uA)：1μA VC(V)：7.4V CJ(pF)：30pF Package：SOT-23

Datasheet 3D Model

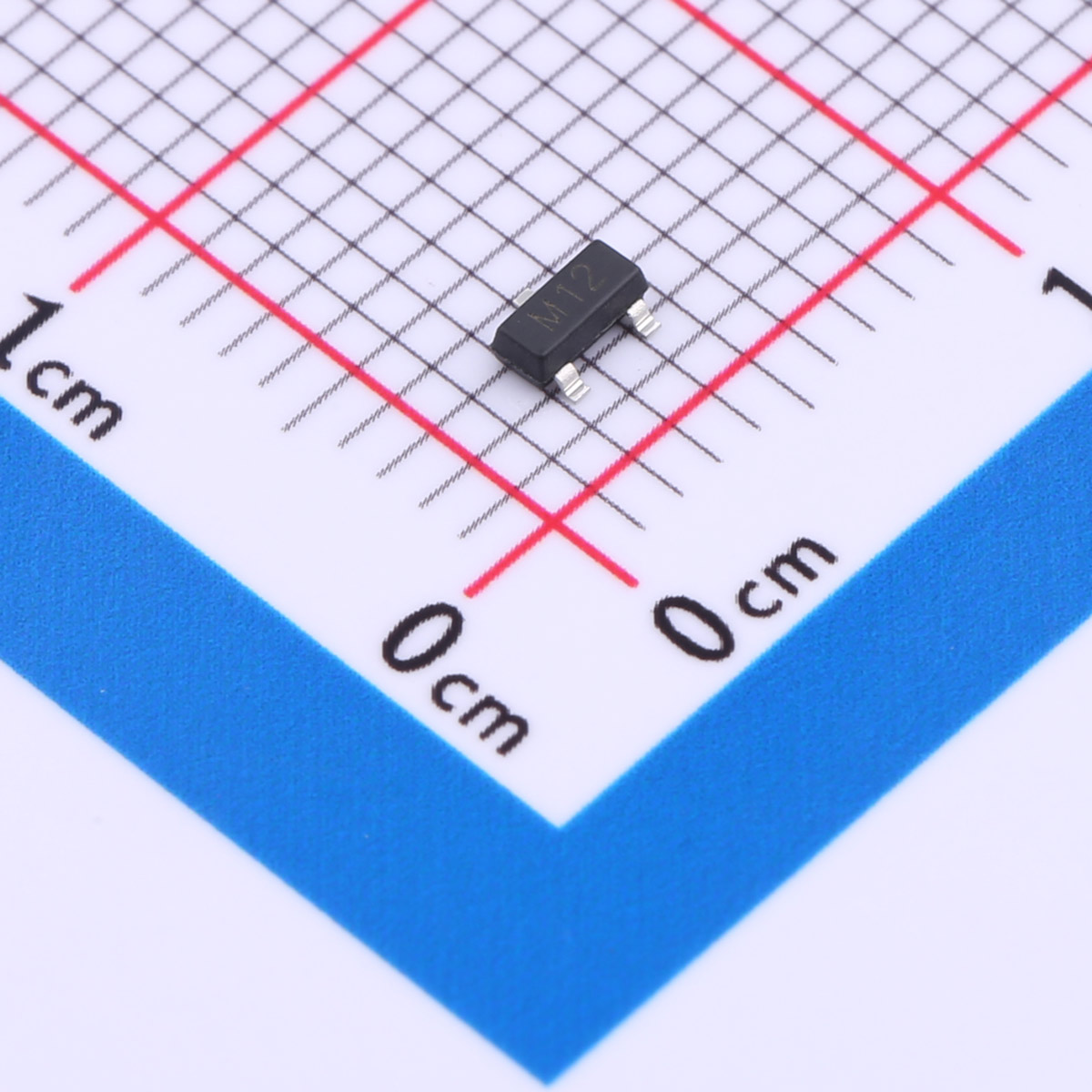

ESDA14V2L ESD Protection Diode SOT-23 VRWM(V)：12V VBR min(V)：13.3V IR(uA)：1μA VC(V)：19V CJ(pF)：130pF Package：SOT-23

Datasheet 3D Model

GBLC03C ESD Protection Devices SOD-323 VRWM(V)：3V VBR min(V)：4V IR(uA)：5μA VC(V)：7V CJ(pF)：0.8pF Package：SOD-323

Datasheet 3D Model

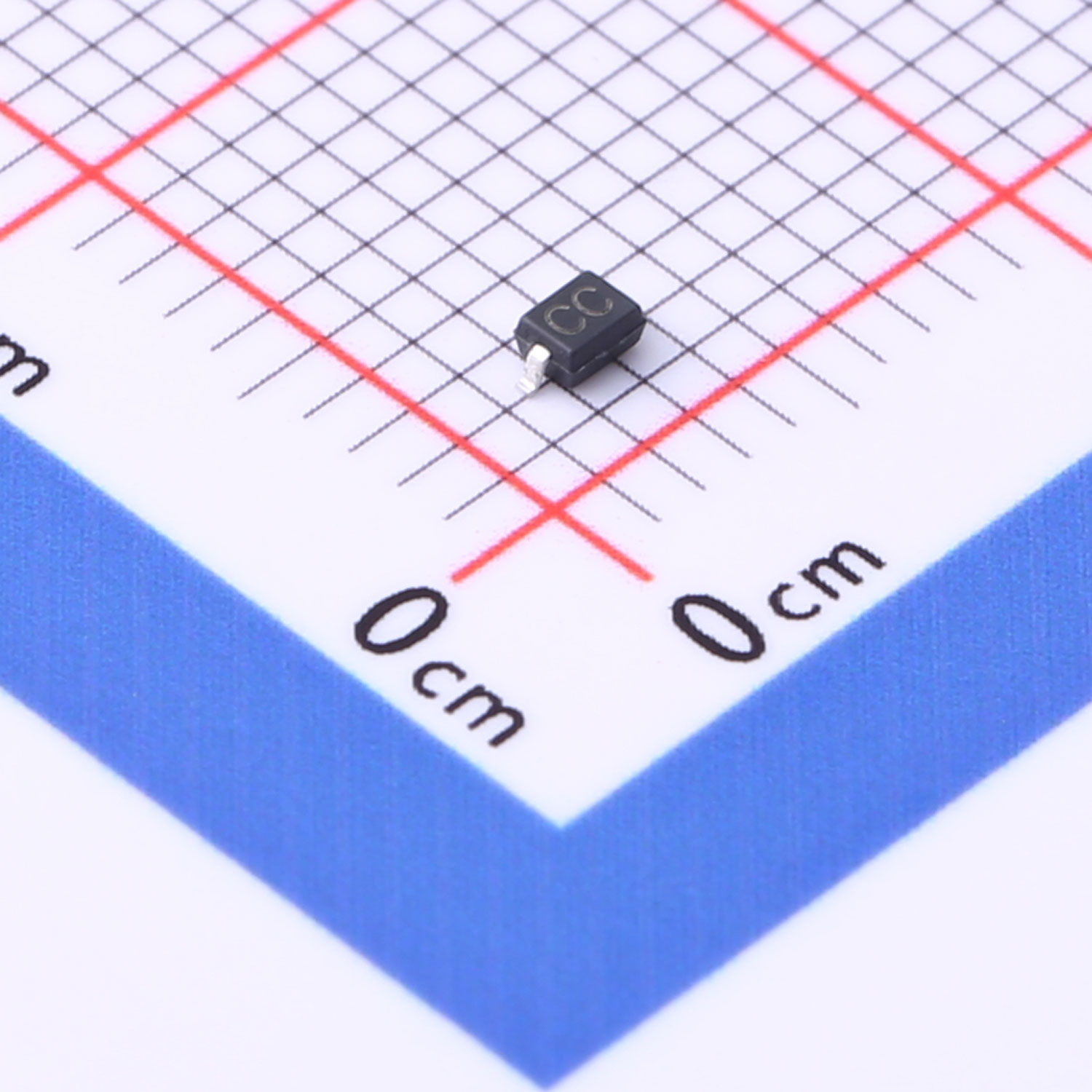

GBLC03CI ESD Protection Diode SOD-323 VRWM(V)：8V VBR min(V)：8.5V IR(uA)：1μA VC(V)：13.4V CJ(pF)：0.8pF Package：SOD-323

Datasheet 3D Model

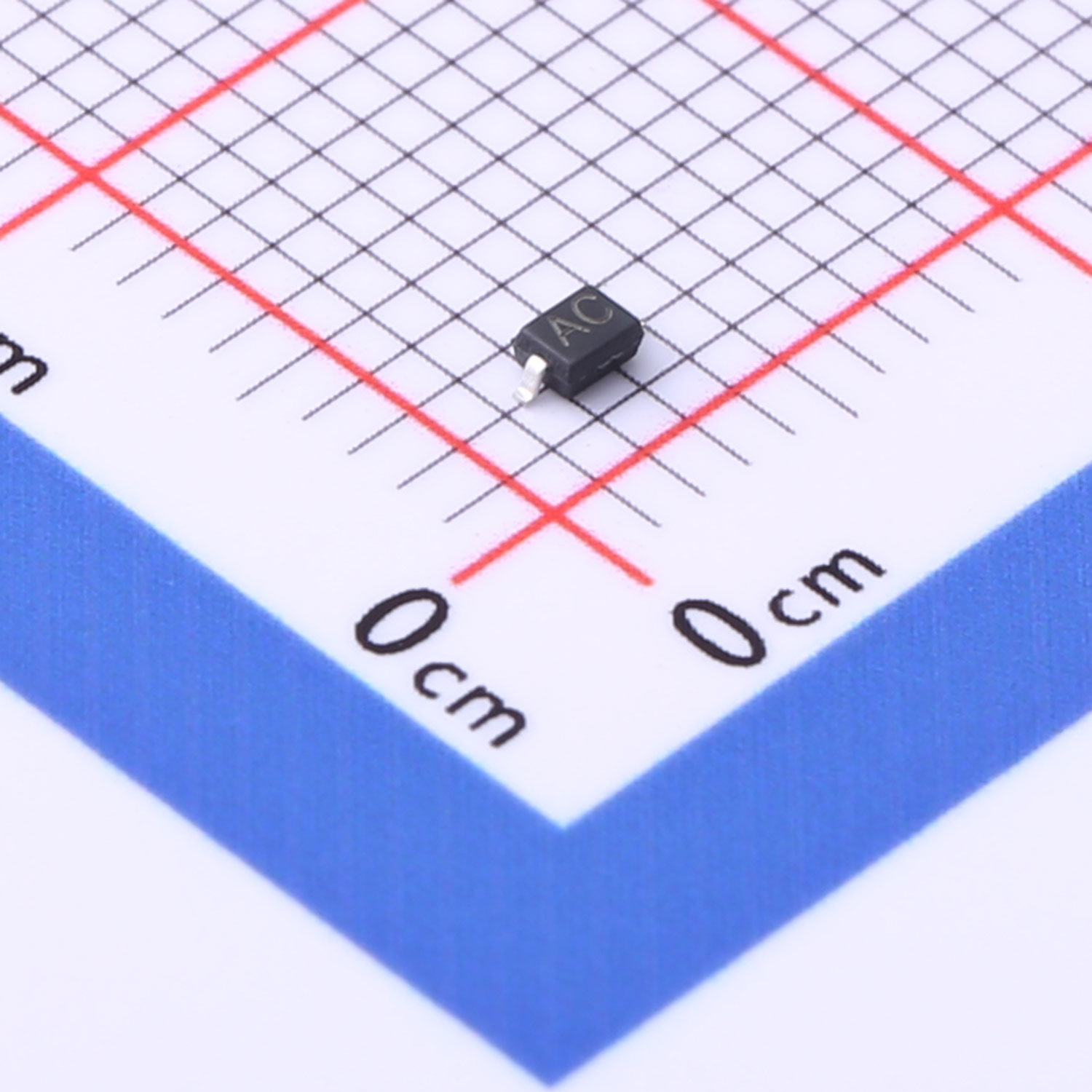

GBLC05CI ESD Protection Devices SOD-323 VRWM(V)：5V VBR min(V)：6V IR(uA)：1μA VC(V)：18V CJ(pF)：0.8pF Package：SOD-323

Datasheet 3D Model

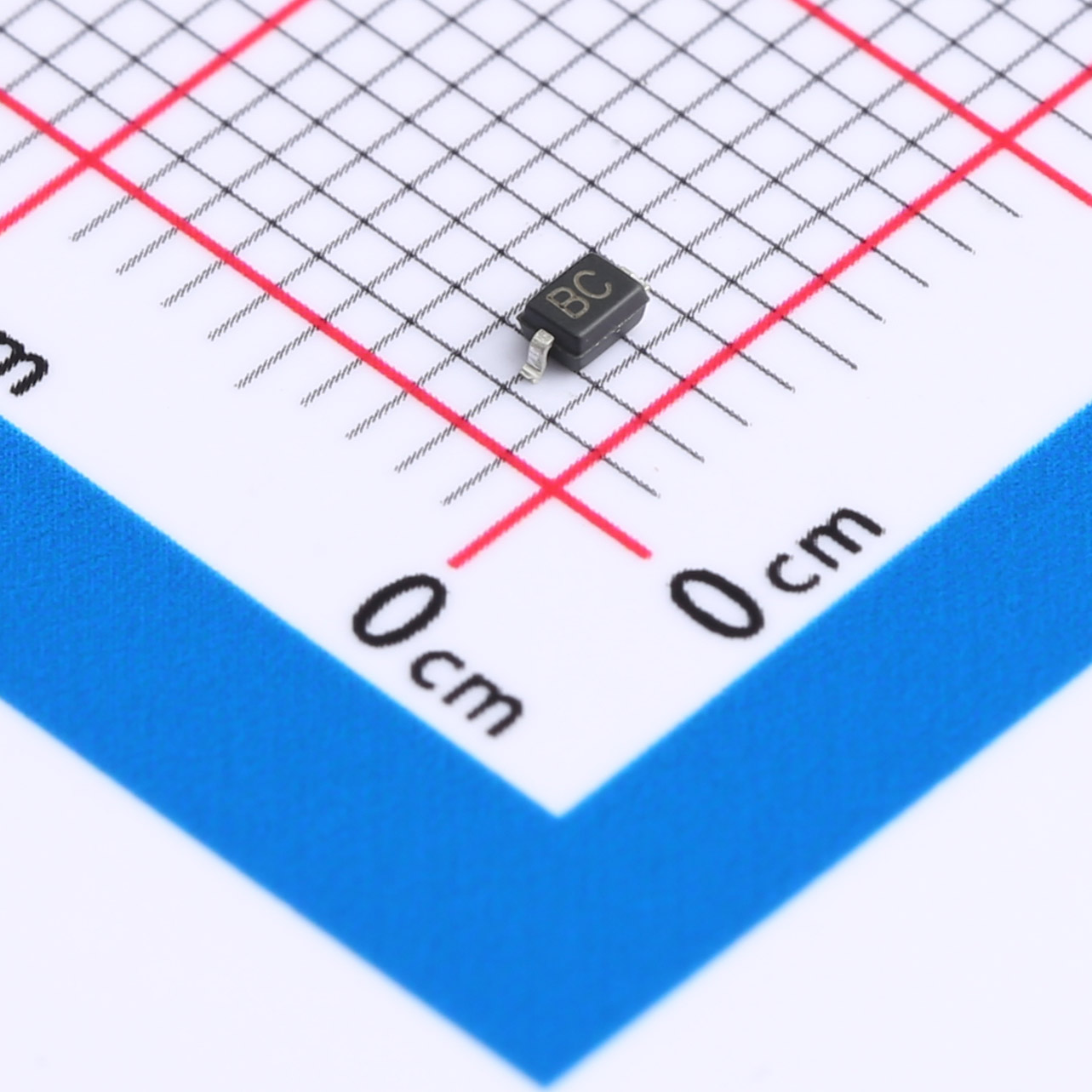

GBLC08C ESD Protection Diode SOD-323 VRWM(V)：8V VBR min(V)：8.5V IR(uA)：1μA VC(V)：13.4V CJ(pF)：0.8pF Package：SOD-323

Datasheet 3D Model

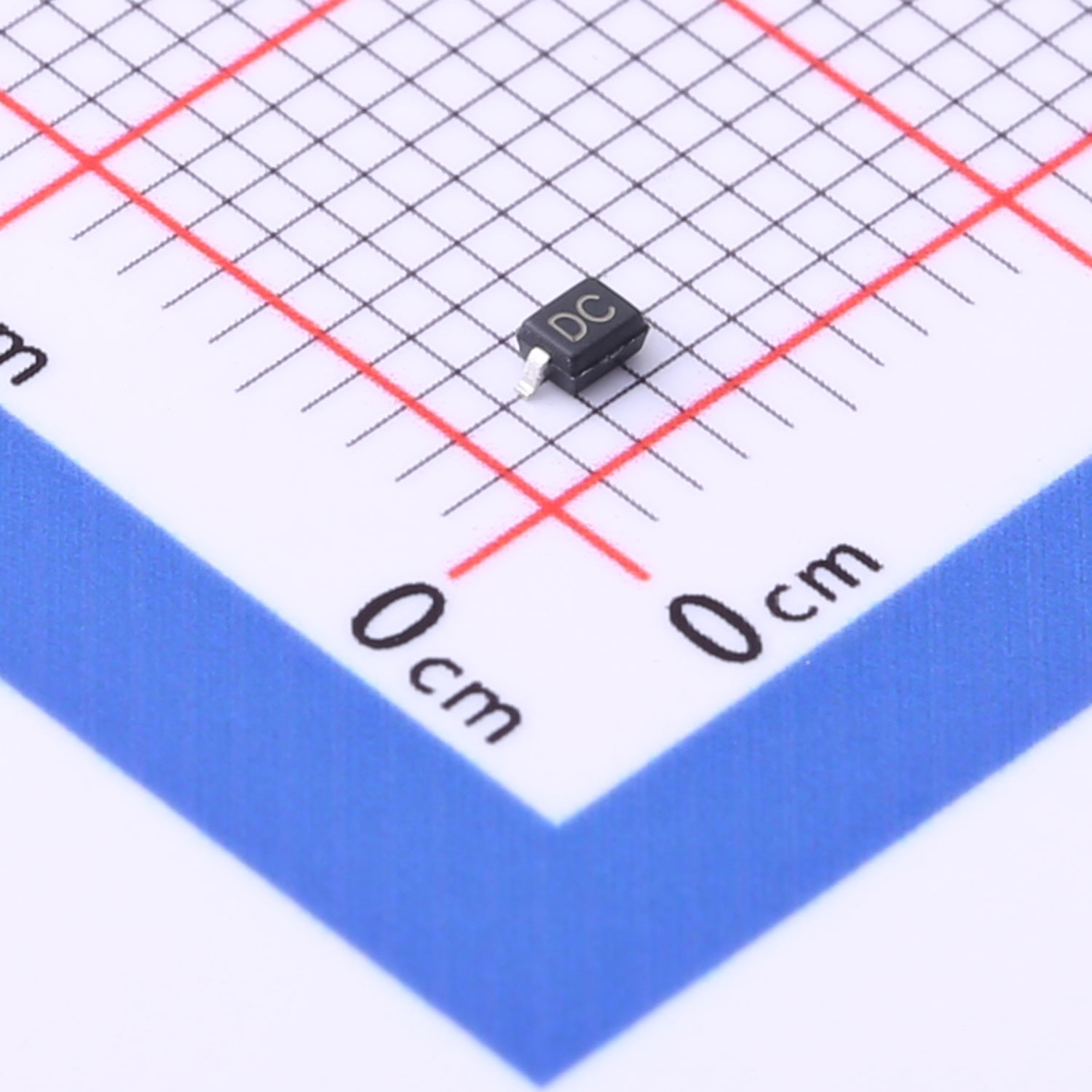

GBLC12CI ESD Protection Devices SOD-323 VRWM(V)：12V VBR min(V)：13.3V IR(uA)：1μA VC(V)：24V CJ(pF)：0.8pF Package：SOD-323

Datasheet 3D Model

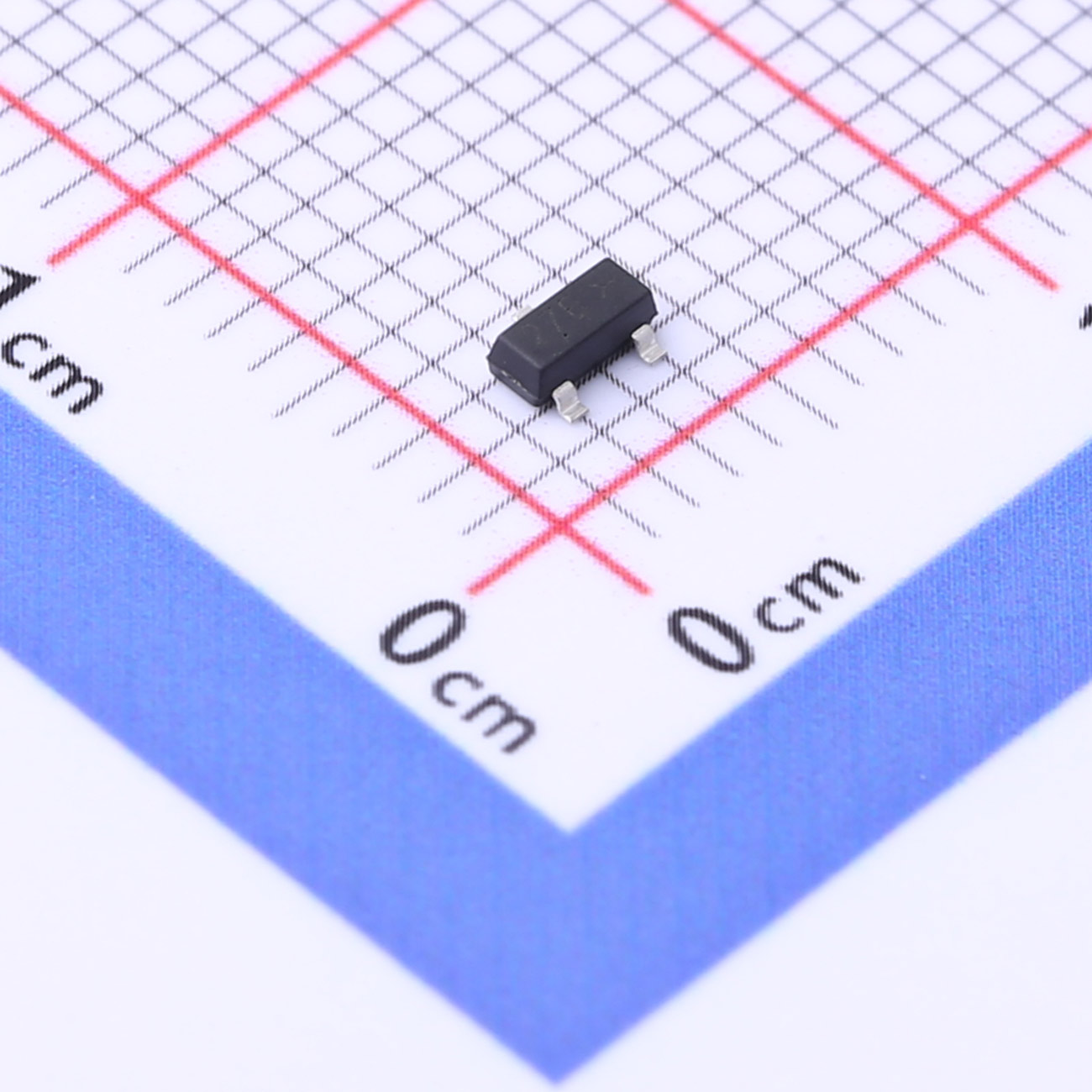

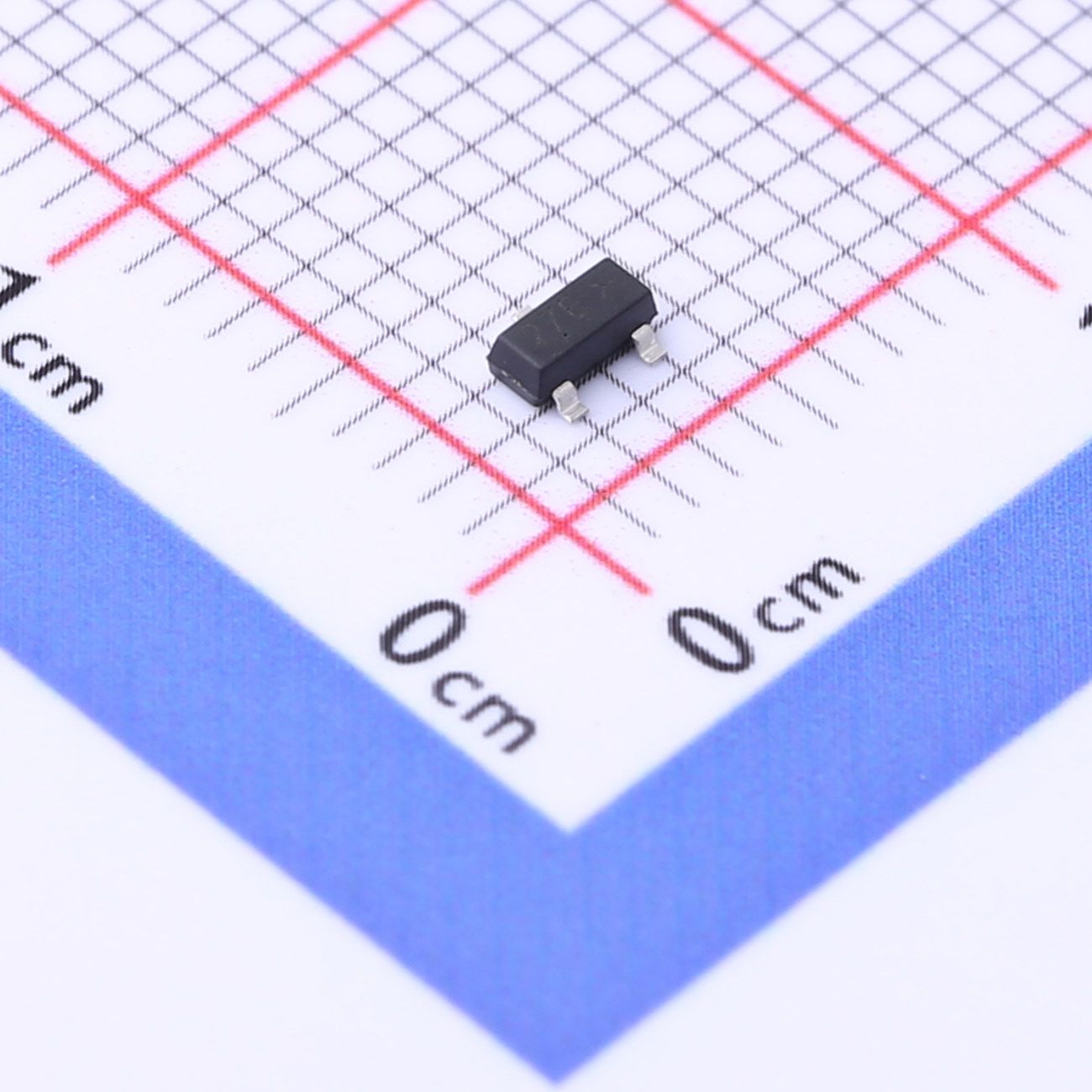

NUP2105LT1G ESD Protection Devices SOT-23 VRWM(V)：24V VBR min(V)：26.2V IR(uA)：1μA VC(V)：36V CJ(pF)：30pF Package：SOT-23

Datasheet 3D Model

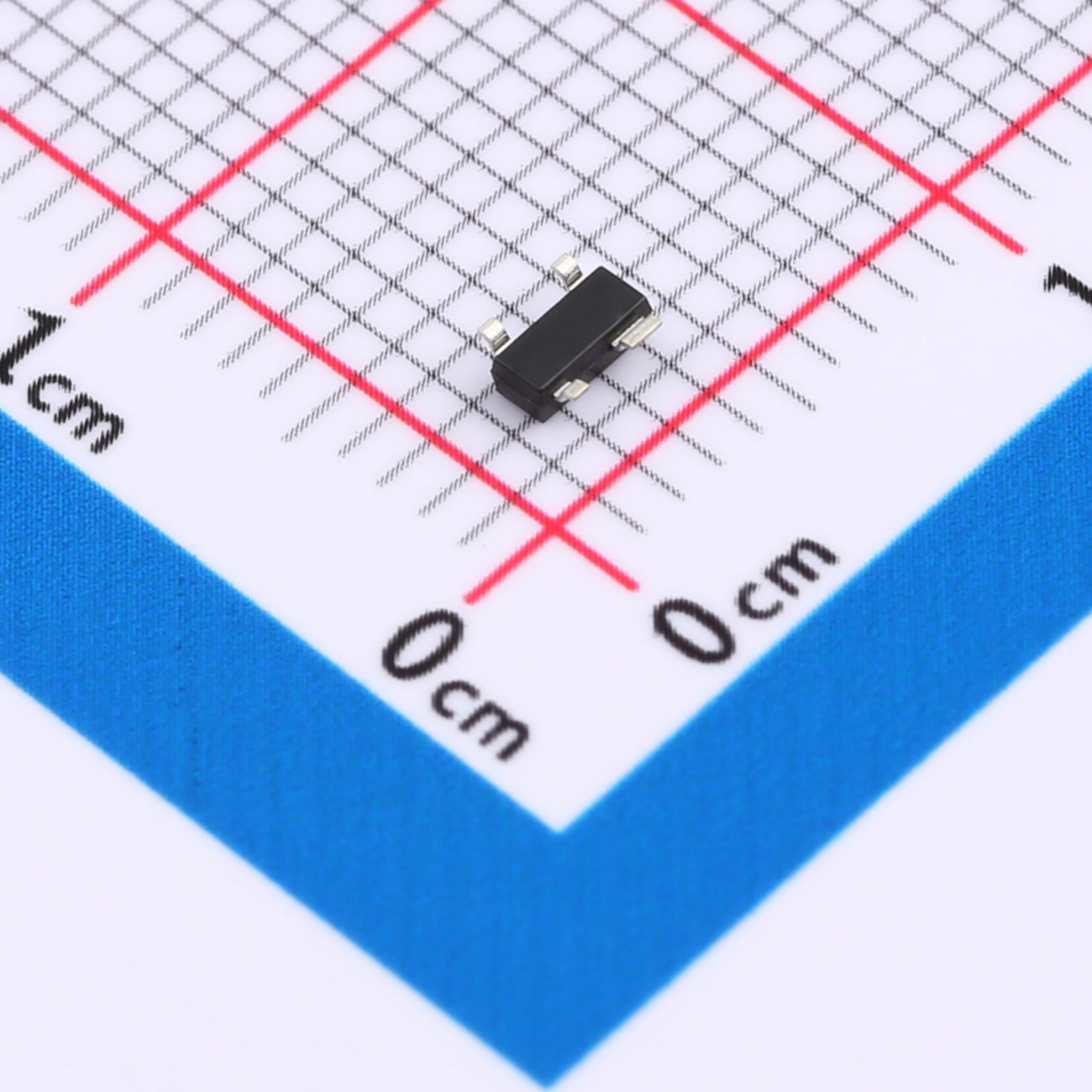

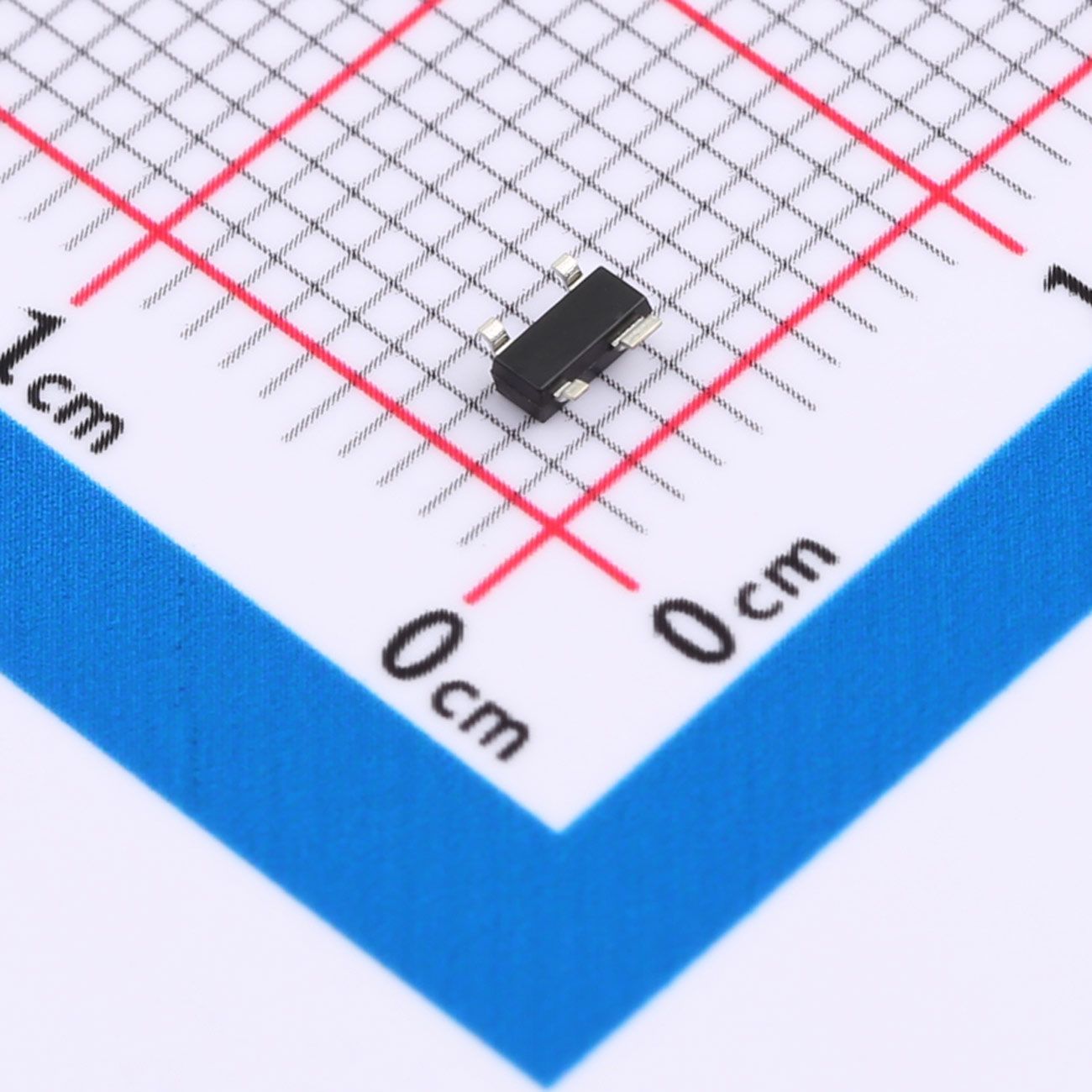

PRTR5V0U2X ESD Protection Diode SOT-143 VRWM(V)：5 VBR min(V)：6 IR(uA)：1 VC(V)：15.5 CJ(pF)：0.6 Package：SOT-143

Datasheet 3D Model

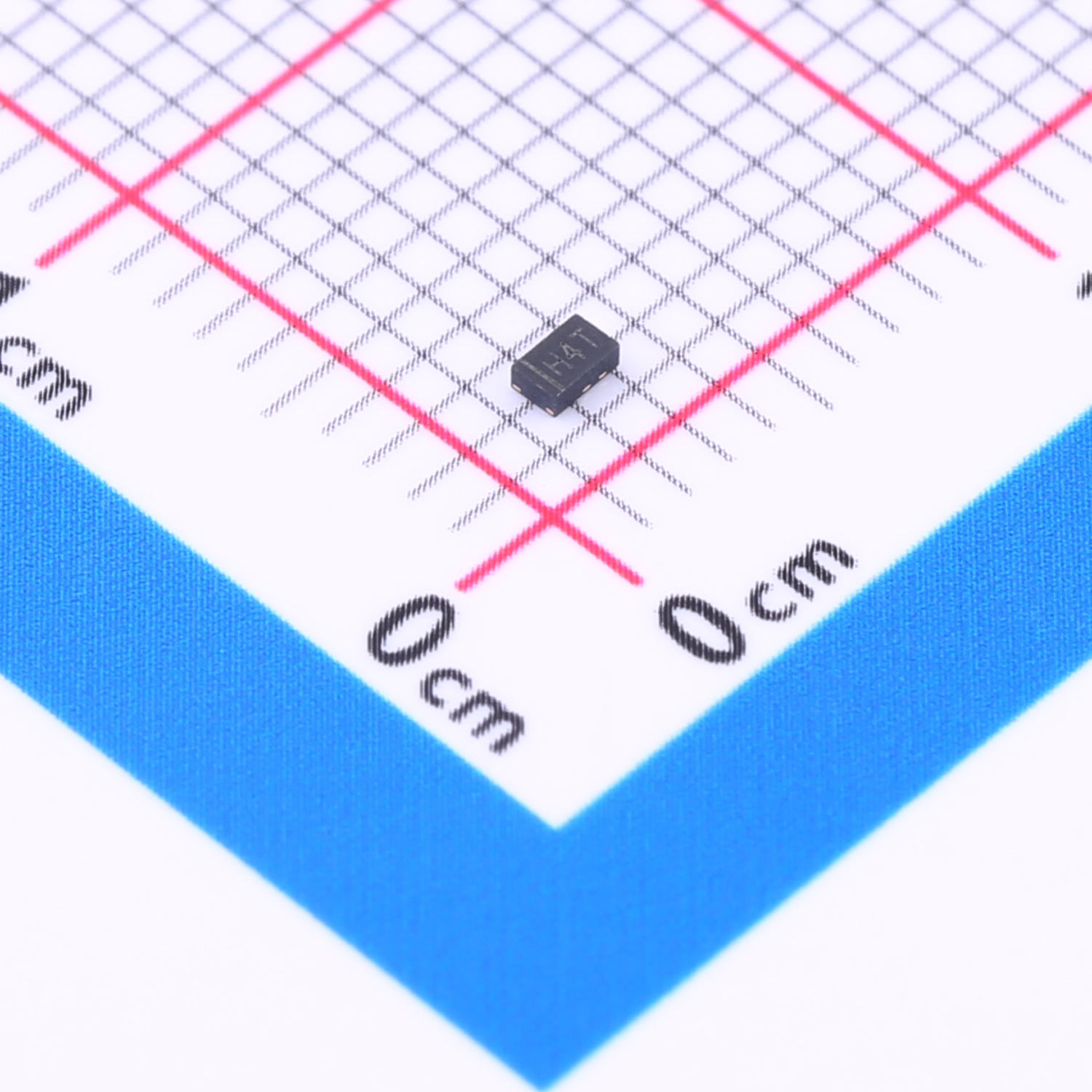

PTVSHC2EN5VU ESD Protection Devices DFN1610 VRWM(V)：6V VBR min(V)：6.5V IR(uA)：1μA VC(V)：8.5V CJ(pF)：700pF Package：DFN1610

Datasheet 3D Model

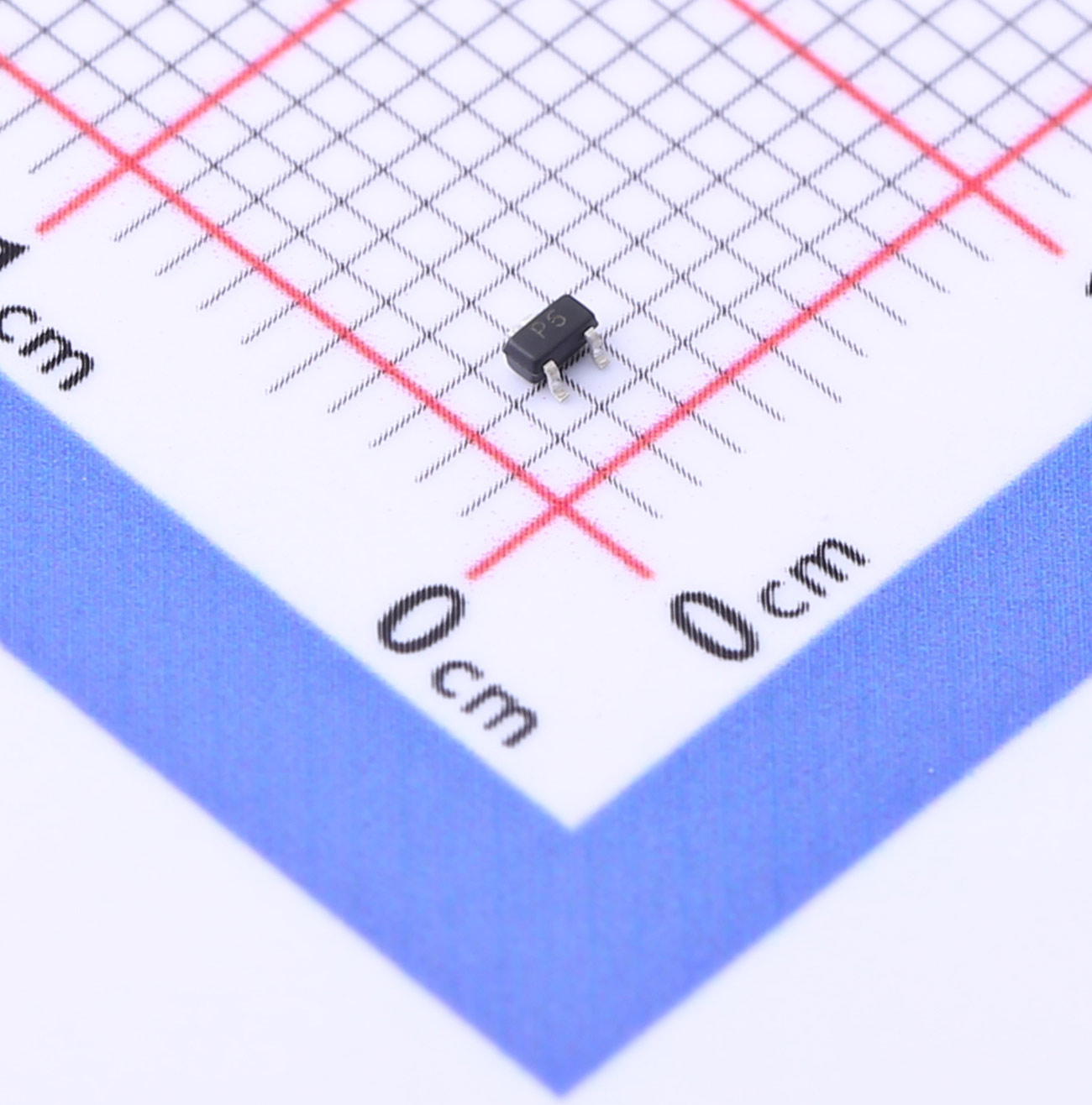

RCLAMP0502B ESD Protection Devices SOT-523 VRWM(V)：5V VBR min(V)：6V IR(uA)：1μA VC(V)：17V CJ(pF)：0.8pF Package：SOT-523

Datasheet 3D Model

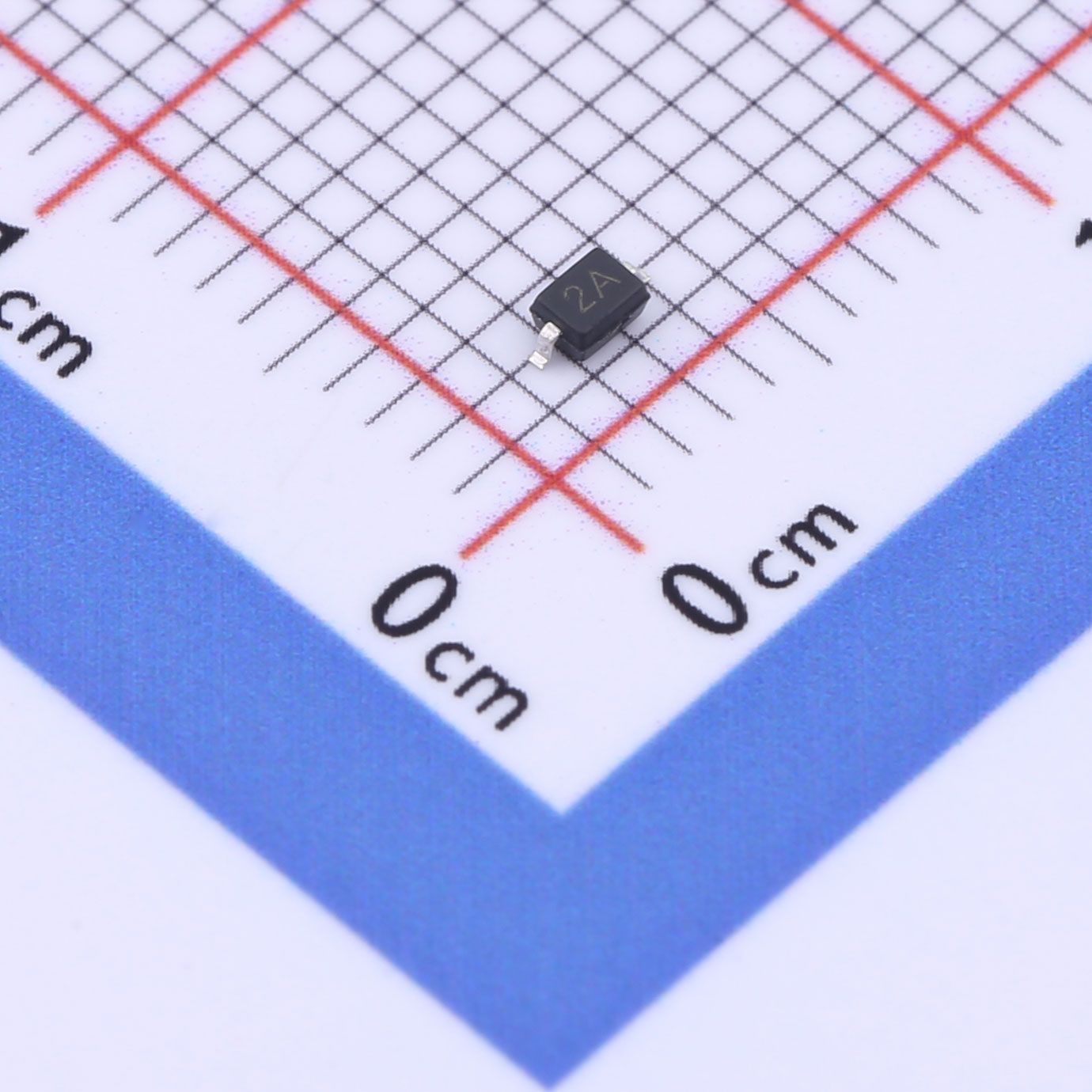

RLSD32A031C ESD Protection Devices SOD-323 VRWM(V)：3.3V VBR min(V)：4V IR(uA)：1μA VC(V)：6.5V@1A CJ(pF)：45pF Package：SOD-323

Datasheet 3D Model

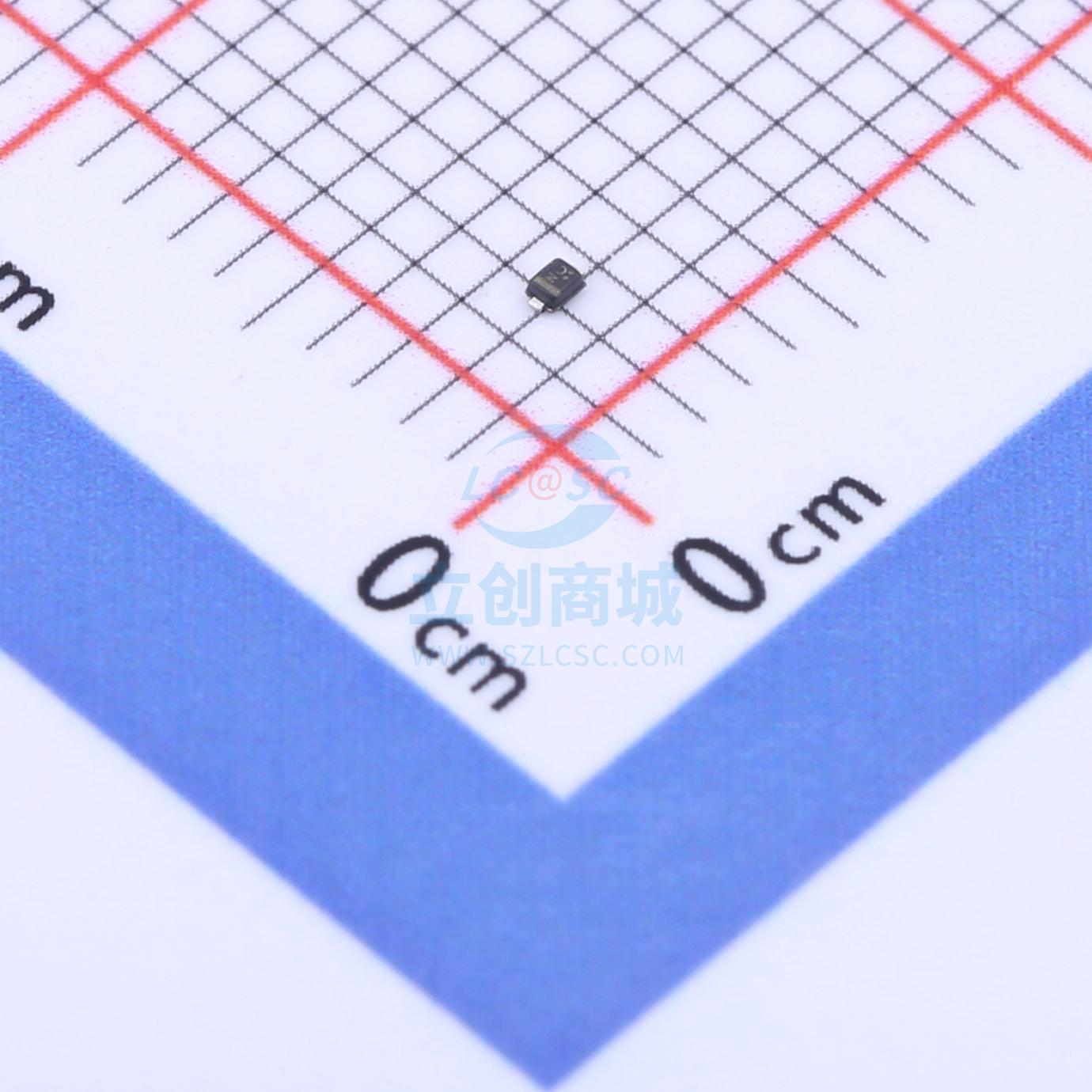

RSAC6.8CST2RA ESD Protection Diode SOD-923 VRWM(V)：5V VBR min(V)：5.4V IR(uA)：1mA VC(V)：12.9V CJ(pF)：0.9pF Package：SOD-923

AU0511P1 ESD Protection Diode SOD-323	5V	5.6V	1μA	9.5V	15	DFN1006
AZ5325-01F ESD Protection Devices DFN1006	5V	6.0V	0.1μA	11V	0.45pF	DFN1006
AZC199-04 ESD Protection Devices SOD-523	5V	6V	1μA	15V	0.4pF	SOD-523
BTRD04A035 ESD Protection Diode DFN1006	5	8.4	0.1	10	18	DFN1006
BV-FA05UCA ESD Protection Devices DFN1006	5V	6.0V	0.1μA	11V	0.45pF	DFN1006
CESD2510LC5VU ESD Protection Devices DFN2510	5V	6V	1μA	16V@5A	0.8pF	DFN2510
CESD882UC5VB ESD Protection Devices DFN1006	5V	6.0V	0.1μA	11V	0.45pF	DFN1006
ESD protection diode SLSOT05C SOT-23	5V	6V	1μA	7.4V	30pF	SOT-23
ESDA14V2L ESD Protection Diode SOT-23	12V	13.3V	1μA	19V	130pF	SOT-23
GBLC03C ESD Protection Devices SOD-323	3V	4V	5μA	7V	0.8pF	SOD-323
GBLC03CI ESD Protection Diode SOD-323	8V	8.5V	1μA	13.4V	0.8pF	SOD-323
GBLC05CI ESD Protection Devices SOD-323	5V	6V	1μA	18V	0.8pF	SOD-323
GBLC08C ESD Protection Diode SOD-323	8V	8.5V	1μA	13.4V	0.8pF	SOD-323
GBLC12CI ESD Protection Devices SOD-323	12V	13.3V	1μA	24V	0.8pF	SOD-323
NUP2105LT1G ESD Protection Devices SOT-23 NUP2105LT1G	24V	26.2V	1μA	36V	30pF	SOT-23
PRTR5V0U2X ESD Protection Diode SOT-143	5	6	1	15.5	0.6	SOT-143
PTVSHC2EN5VU ESD Protection Devices DFN1610	6V	6.5V	1μA	8.5V	700pF	DFN1610
RCLAMP0502B ESD Protection Devices SOT-523	5V	6V	1μA	17V	0.8pF	SOT-523
RLSD32A031C ESD Protection Devices SOD-323	3.3V	4V	1μA	6.5V@1A	45pF	SOD-323
RSAC6.8CST2RA ESD Protection Diode SOD-923	5V	5.4V	1mA	12.9V	0.9pF	SOD-923
