Slkor BC857B PNP High-Frequency Small-Signal Transistor: High-Gain Universal Amplification and Switching Device

Home Blogs Daily Highlight Slkor BC857B PNP High-Frequency Small-Signal Transistor: High-Gain Universal Amplification and Switching Device

2026-08-22 33

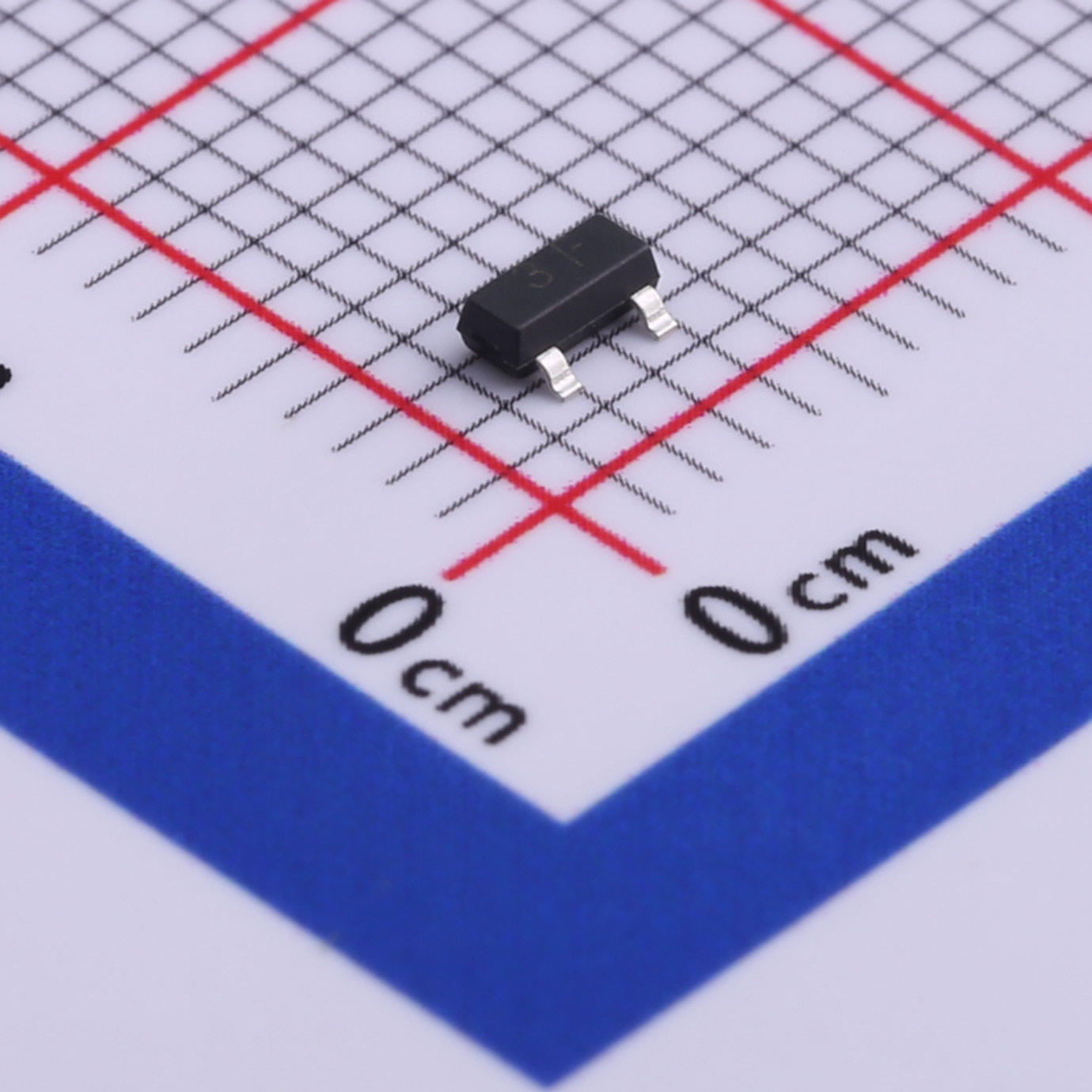

In analog audio circuits, precision signal acquisition, low-voltage switching control, instrumentation, and consumer electronics, small-signal amplification and accurate low-speed switching require transistors with excellent gain, withstand voltage, frequency response and stability. The Slkor BC857B is a classic PNP silicon high-frequency small-signal transistor packaged in mainstream SOT-23 form factor. It features high current gain, 45V high withstand voltage, 100MHz high-frequency response, low saturation voltage and ultra-low leakage current. Optimized for precision small-signal amplification, weak signal conditioning and low-voltage load switching, this device delivers stable performance and strong universality. It can form a complementary pair with the NPN BC847B transistor, widely applicable to various civil and industrial miniature circuits, serving as a highly cost-effective domestic alternative solution.

1. Core Electrical Parameters

Transistor Type: PNP Silicon Small-Signal Transistor Maximum Collector Current (Ic): 100mA Collector-Emitter Breakdown Voltage (Vceo): 45V Maximum Power Dissipation (Pd): 200mW DC Current Gain (hFE): 220 Transition Frequency (fT): 100MHz Collector Cutoff Current (Icbo): 100nA Collector-Emitter Saturation Voltage (VCE(sat)): 500mV Emitter-Base Breakdown Voltage (Vebo): 5V

2. Core Product Advantages

2.1 High Gain for Weak Signal Processing

Equipped with a high DC current gain of 220, the BC857B provides excellent amplification performance for weak sensor signals, low-level audio signals and low-voltage analog signals. It features good linearity and low distortion, effectively improving the accuracy of weak signal acquisition. It is perfectly suited for low-power and high-precision scenarios such as audio preamplification, sensor signal conditioning and precision instrumentation amplification.

2.2 45V High Withstand Voltage for Broader Application Coverage

Compared with conventional small-signal transistors, the BC857B offers a high collector-emitter breakdown voltage of 45V with sufficient voltage margin. It adapts to most common low-voltage systems including 3.3V, 5V, 12V and 24V circuits, effectively preventing breakdown risks caused by voltage fluctuations and transient spikes. This greatly enhances equipment stability and supports more flexible industrial and consumer electronic circuit designs.

2.3 Excellent High-Frequency Response for Lossless Signal Transmission

With a transition frequency of up to 100MHz, the device delivers outstanding high-frequency characteristics. It not only meets standard DC and low-frequency amplification and switching requirements, but also supports medium-and high-frequency analog signal processing and high-frequency oscillator auxiliary circuits. It breaks the frequency limitations of traditional low-frequency small-signal transistors and greatly expands circuit adaptability.

2.4 Low Saturation Voltage and Low Leakage for Low-Power Stable Operation

The ultra-low collector-emitter saturation voltage of 500mV minimizes conduction loss and heat generation, ensuring reliable long-term continuous operation. Its ultra-low 100nA collector cutoff leakage current keeps standby power consumption extremely low without disturbing circuit static operating points, making it ideal for power-sensitive devices such as battery-powered smart hardware and portable instruments. The 5V emitter-base withstand voltage further protects the device from input overvoltage damage and improves overall reliability.

2.5 Standard SMD Package for Mass Production and Complementary Pairing

Adopting the industry-standard SOT-23 package, the BC857B features miniature size and supports fully automatic SMT assembly, saving PCB layout space and complying with miniaturization trends of modern electronic devices. It delivers high yield and low cost for mass production. In addition, it can be perfectly paired with the NPN BC847B to build complementary symmetric circuits for push-pull amplification, bidirectional switching and differential signal processing, forming a classic and reliable combination for analog circuit design.

3. Main Application Fields

Benefiting from well-balanced comprehensive performance, the Slkor BC857B is widely used in various small-signal, low-power and low-voltage circuit scenarios, including audio amplification circuits, microphone signal acquisition, sensor signal conditioning, precision instrumentation amplification, smart home control modules, low-voltage signal switches, portable consumer electronics, industrial control auxiliary circuits, logic level conversion and low-speed load driving applications.

4. Engineering Design Guidelines

1. Current Derating: 100mA is the absolute maximum collector current. Proper current derating is recommended for long-term continuous operation to avoid thermal aging and extend device service life.

2. Voltage Compliance: The circuit operating voltage must not exceed the 45V Vceo rating, and the emitter input voltage should be limited within 5V to prevent overvoltage breakdown.

3. Amplifier Circuit Optimization: Its high gain may cause high-frequency self-oscillation. Reasonable bias resistance and compensation circuit design are required to ensure stable and distortion-free signal output.

4. High-Frequency PCB Layout: For high-frequency applications, optimize PCB routing by shortening signal traces to reduce parasitic capacitance and inductance, maximizing the 100MHz high-frequency performance of the device.

5. Product Summary

The Slkor BC857B is a high-performance and highly reliable PNP high-frequency small-signal SMD transistor integrating high gain, high withstand voltage, low power loss, fast frequency response and ultra-low standby power consumption. Its performance is fully comparable with imported alternatives. Capable of both precision small-signal amplification and low-voltage low-speed switching control, it features standard packaging, easy mass production and outstanding cost performance. The BC857B serves as an excellent domestic replacement option for consumer electronics, smart hardware, industrial instrumentation and various analog circuit designs.
