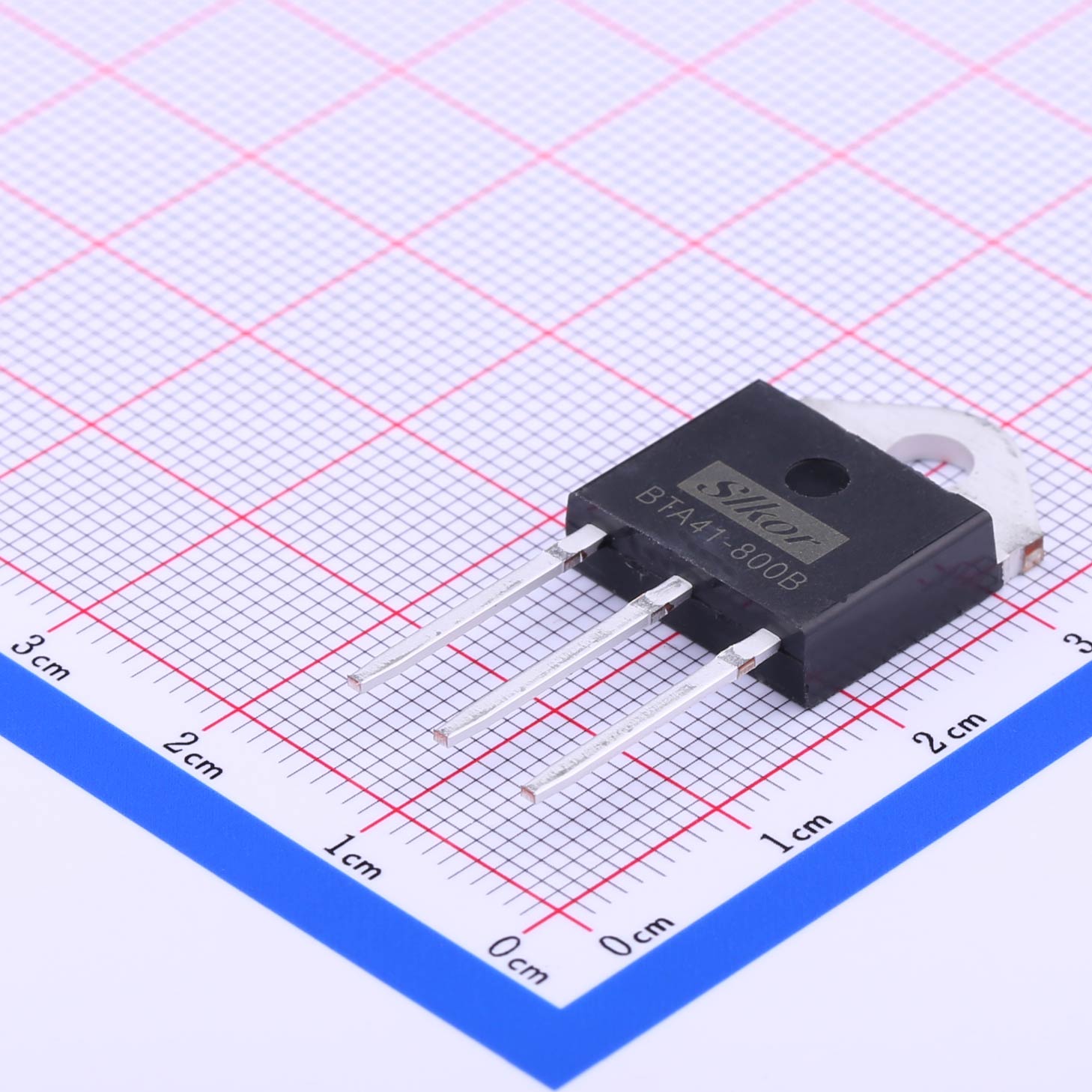

In 220V AC mains-powered applications, high-power home appliances, industrial voltage regulators, motor speed controllers and constant-temperature heating equipment impose stringent requirements on switching devices in terms of voltage withstand, current-carrying capacity, triggering stability and long-term reliability. Conventional low-power TRIACs struggle under heavy-load conditions and are prone to breakdown, false triggering and excessive temperature rise. The Slkor BTA41-800B is a high-power four-quadrant TRIAC thyristor housed in the classic TO-3P power package. Featuring 800V high voltage withstand, 40A high-current handling capability and low-threshold, easy-to-drive triggering characteristics, it enables bidirectional control of AC loads and serves as a core domestic alternative component for high-power consumer appliances and small-to-medium industrial electronic control systems.

Key Specifications

Device Type: Four-quadrant TRIAC Repetitive Off-state Peak Voltage (VDRM): 800V RMS On-state Current (IT(RMS)): 40A Maximum Gate Trigger Current (IGT): 50mA Gate Trigger Voltage (VGT): 1.5V Package: TO-3P

Core Product Advantages

1. 800V High-voltage Withstand for Complex Mains Operating Conditions Boasting an 800V high off-state withstand voltage, the BTA41-800B far exceeds the operating voltage of typical 220V circuits and provides ample voltage margin. It effectively resists grid surges, instantaneous voltage spikes and lightning-induced interference to prevent high-voltage device breakdown. It is highly adaptable to domestic civil and industrial AC mains environments.
2. 40A High-current Capacity for Robust Heavy-load Driving The device features a rated RMS on-state current of 40A for stable long-term operation with high-power loads. It easily drives high-power heating tubes, AC fans, water-pump motors, instant-water heaters and other high-power equipment. It delivers stable continuous current conduction and excellent surge resistance, avoiding faults such as excessive voltage drop, thermal runaway and frequent system crashes under heavy-load operation.
3. Low Trigger Parameters Simplify Peripheral Circuit Development This TRIAC has a typical trigger voltage of only 1.5 V and maximum trigger current of 50 mA. Its low trigger threshold offers broad drive compatibility, allowing direct driving by ordinary MCUs, optocouplers and trigger circuits without complex amplifier stages. Supporting four-quadrant triggering, it achieves even conduction across positive and negative AC half-cycles for precise switching control, reducing hardware-design difficulty and BOM cost.
4. TO-3P Power Package for Superior Heat Dissipation and Reliability The TO-3P high-power metal package provides large heat-dissipation area and low thermal resistance, and can be directly fitted with a heat sink. Temperature rise remains controllable under long-term full-load operation, delivering better thermal performance than standard surface-mount packages. The mechanically robust package features good insulation, vibration resistance and anti-aging properties, supporting long-term continuous industrial-grade operation and extended service life.
5. Four-quadrant Conduction for Balanced Control and Anti-interference Performance With mature four-quadrant operation, the device achieves consistent bidirectional conduction with identical switching performance for positive and negative half-cycles, yielding balanced and stable AC waveform control. It features strong dV/dt immunity, greatly reducing risks of low-voltage false triggering and spurious turn-on and improving overall circuit stability.
6. Mature Domestic Process for Consistent Mass-production Quality Built on Slkor’s standardized thyristor manufacturing process, the BTA41-800B delivers high batch-to-batch consistency, tight parameter tolerance and excellent commutation performance. It is a drop-in domestic alternative to imported equivalent TRIACs suitable for high-volume production. Stable supply and competitive cost alleviate industry pain points including long lead times, high pricing and supply shortages for imported components.

Main Application Fields

Benefiting from its combined strengths of high voltage rating, high current capacity, high stability and simple driving, the Slkor BTA41-800B is widely deployed in numerous high-power AC-control scenarios: instant electric water heaters, high-power constant-temperature heating equipment, industrial AC voltage-regulation modules, AC motor speed-control systems, fan and water-pump controllers, high-power smart-home devices, commercial small appliances, solid-state relays, light-power-regulation equipment and other AC phase-control and contactless switching circuits.

Engineering Design Recommendations

Thermal Design: Under 40A high-current operation, a properly-specified heat sink is mandatory. Optimize the overall thermal structure to strictly control device junction temperature and avoid performance degradation or device damage caused by prolonged high-temperature exposure.

Drive-circuit Design: Insert a current-limiting resistor in the gate loop to precisely regulate trigger current, prevent gate overcurrent burnout and guarantee stable and reliable trigger signals.

Inductive-load Protection: When driving inductive loads such as motors and transformers, install an RC snubber circuit to suppress reverse voltage spikes and eliminate false triggering and breakdown failures.

PCB Layout: Widen and thicken main power traces to lower impedance and heat generation in high-current loops. Physically separate power loops from trigger-signal traces to mitigate electromagnetic interference and enhance system noise immunity.

Product Summary

The Slkor BTA41-800B is a high-performance TO-3P packaged TRIAC integrating 800V high withstand voltage, 40A high-current rating, low trigger threshold, outstanding heat dissipation and stable four-quadrant conduction. Purpose-built for 220V high-power AC-control applications, it features simple driving, strong load capacity, reliable operation and high cost-efficiency. It is the preferred domestic replacement for imported TRIACs in high-power home appliances, industrial voltage regulation and motor-control applications.
