Slkor BAV99DW High-Speed Switching Diode: 4ns Ultra-Fast Response, High-Voltage Miniature SMD Switch Device

Home News Daily Highlight Slkor BAV99DW High-Speed Switching Diode: 4ns Ultra-Fast Response, High-Voltage Miniature SMD Switch Device

2026-09-02 15

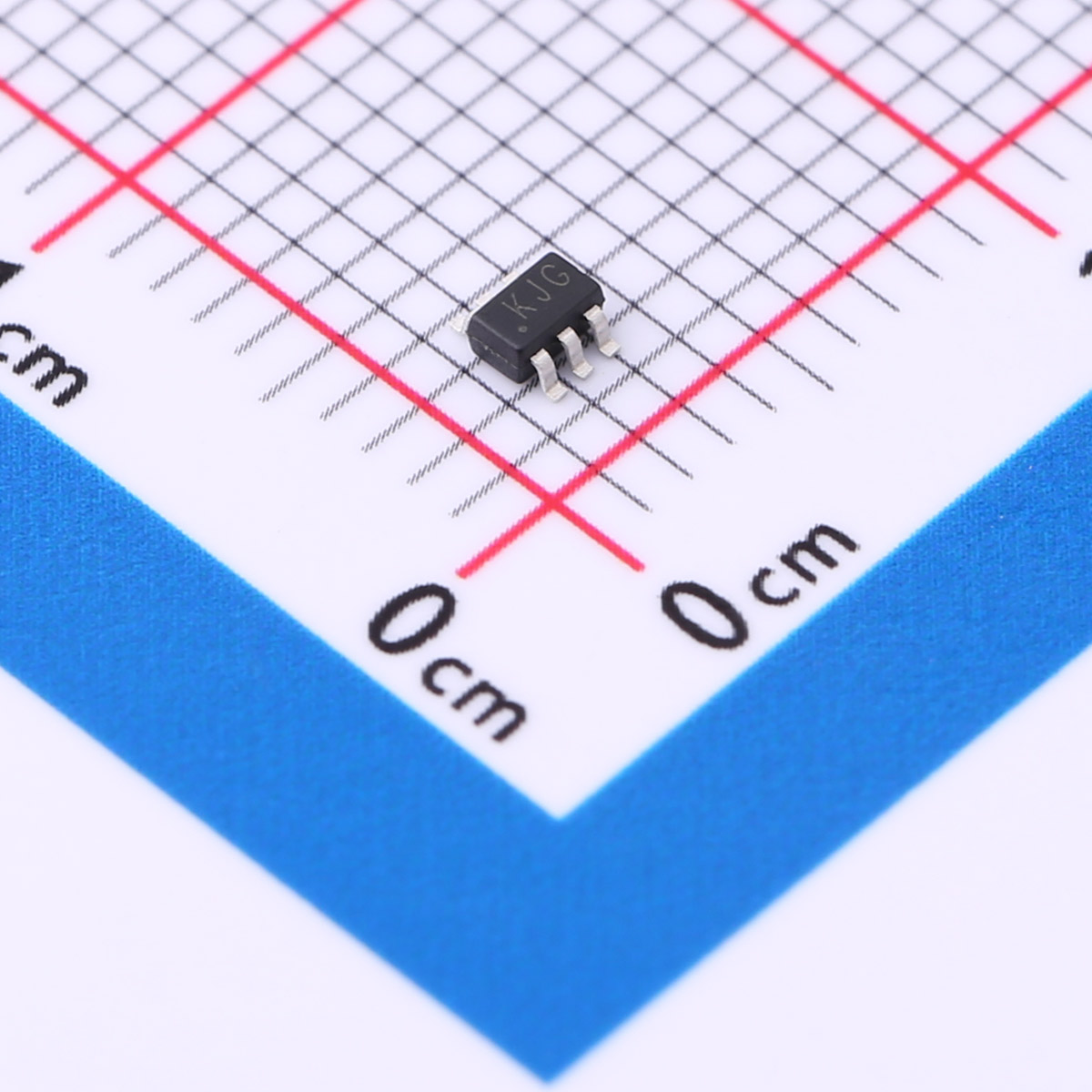

In scenarios such as high-speed signal transmission, high-frequency switching circuits, signal rectification, anti-reverse connection protection and clamping voltage regulation, the switching speed, leakage current, forward voltage drop and voltage resistance of diodes directly determine circuit signal integrity and operational stability. The Slkor BAV99DW is a high-performance high-speed SMD switching diode packaged in ultra-compact SOT-363. It integrates core advantages including 75V high reverse voltage resistance, 4ns ultra-fast reverse recovery speed, ultra-low leakage current and low forward voltage drop. Ideal for high-frequency and high-precision circuits, it serves as a premium domestic alternative for small-signal switching, rectification and clamping protection in consumer electronics, industrial control equipment and communication circuits.

1. Core Product Parameters

Repetitive Peak Reverse Voltage (VRRM): 75V Average Rectified Output Current (IO): 150mA Forward Voltage Drop (VF): 0.715V Reverse Leakage Current (IR): 2.5μA Reverse Recovery Time (trr): 4ns Package: SOT-363

2. Core Product Advantages

2.1 4ns Ultra-Fast Recovery Speed for High-Frequency and High-Speed Circuits

Featuring an ultra-short reverse recovery time of only 4ns, the BAV99DW delivers extremely fast switching response. It is perfectly suitable for high-frequency signal switching, high-speed digital circuits and high-frequency rectification applications. The device effectively eliminates switching delay, waveform distortion and signal crosstalk, ensuring accurate and stable signal transmission in high-frequency circuits and meeting the high-speed operation requirements of precision electronic equipment.

2.2 75V High-Voltage Design for Wide Application Compatibility

With a high repetitive peak reverse voltage of 75V, the device provides sufficient voltage margin to resist instantaneous high-voltage spikes and surge interference, preventing reverse breakdown damage. Outperforming ordinary low-voltage switching diodes, it adapts to most civil and industrial medium and low-voltage signal circuits with excellent high-voltage impact resistance.

2.3 Ultra-Low Leakage Current for Higher Circuit Stability

The ultra-low reverse leakage current of 2.5μA minimizes static power loss without redundant power consumption during circuit standby and steady-state operation. It effectively improves power utilization and avoids circuit drift, voltage fluctuation and abnormal power consumption caused by leakage current, making it particularly suitable for precision signal detection and low-power equipment circuits.

2.4 Low Forward Voltage Drop Reduces Conduction Loss

With a typical forward voltage drop of only 0.715V, the device features low conduction loss and high conduction efficiency. It generates negligible heat during small-signal rectification and conduction, maintaining excellent long-term operational stability. Balancing high conduction efficiency and energy saving performance, it is ideal for signal circuits operating continuously for extended periods.

2.5 SOT-363 Miniature Package for High-Density Wiring

Adopting the ultra-compact SOT-363 SMD package with neat pin layout, the device supports automated SMT mounting and greatly saves PCB layout space. It perfectly fits the miniaturization, thinning and high-density wiring trends of electronic products, compatible with various small-sized precision circuit boards.

2.6 Mature Process for Perfect Imported Device Replacement

Backed by Slkor’s mature semiconductor manufacturing process, the BAV99DW features high parameter consistency, stable performance and strong anti-interference capability. Its electrical specifications are fully equivalent to imported BAV99DW switching diodes, enabling direct pin-to-pin replacement. With stable supply, cost-effective pricing and reliable quality, it effectively solves the industry pain points of long lead times, high costs and supply shortages of imported components.

3. Main Application Fields

Leveraging the integrated advantages of high-speed switching, low power loss, high stability and miniaturization, the Slkor BAV99DW is widely applied in various small and medium-signal precision circuits, including high-speed digital signal switching, high-frequency small-signal rectification, circuit anti-reverse protection, signal clamping and voltage regulation, filter and noise reduction circuits, consumer electronics, wearable devices, IoT modules, precision industrial control circuits, communication equipment, instruments and meters, and small household appliance control boards.

4. Engineering Design Guidelines

Application Adaptation: Designed for small-signal and high-frequency switching scenarios. It is not recommended for high-power rectification or high-current load circuits to avoid device damage caused by overload.

Voltage Margin: Reserve sufficient voltage margin in practical applications and avoid long-term operation near the 75V extreme voltage rating to extend device service life and enhance stability.

PCB Layout: Keep high-frequency signal traces short and straight to reduce parasitic capacitance and inductance, giving full play to the 4ns high-speed switching performance and avoiding signal attenuation and timing deviation.

Thermal Design: No additional heat dissipation is required for small-signal operation. Reserve proper heat dissipation space in high-density board layouts to prevent parameter instability caused by accumulated heat.

5. Product Summary

The Slkor BAV99DW is a high-performance miniature high-speed switching diode that integrates 75V high voltage resistance, 150mA rated current, 4ns ultra-fast recovery speed, 2.5μA ultra-low leakage current and 0.715V low forward voltage drop. Equipped with the ultra-small SOT-363 package, it delivers outstanding high-speed performance, low power loss and high compatibility. As a universal device for high-speed switching, rectification and circuit protection, it adapts to most precision high-frequency circuit scenarios and serves as a cost-effective premium domestic replacement for imported switching diodes.
