Originating from the STM32F0 gene of the entry-level low-cost Cortex-M0 core launched in 2012, ST launched the new generation of entry-level low-cost Cortex-M0 + mainstream STM32G0 in 2018. It is known as the king of cost performance: high performance, low power consumption, and convenient and easy-to-use features make it an entry-level STM32 development tool.






STM32G0 key features






Compared with the F0 and L0 series, which are also based on the Arm Cortex M0+ core, the STM32G0 series is a more efficient microcontroller. Through optimized design and various detail settings, the design goals are achieved with the minimum BOM cost and maximum upgrade flexibility, making the investment worthwhile.

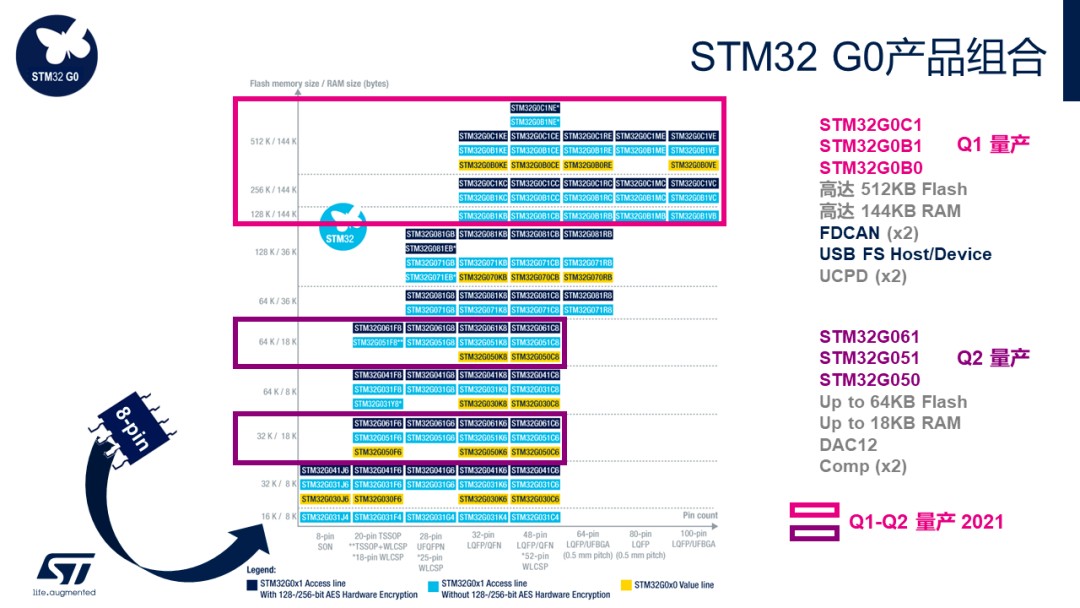

▲ STM32G0 product portfolio

  EfficientBased on the ARM Cortex M0+ core and 64MHz main frequency, STM32G0 has the maximum number of I/Os, the best RAM/Flash ratio, and a minimum package of 8 pins; low power consumption (3µA in Stop mode, less than 100µA/MHz in run mode); 1% precision internal high-speed RC oscillator.
  reliableSTM32G0 has low EMI, strong EMC, clock monitoring and 2 watchdogs. Flash comes with error checking and correction. The security features are perfect for IOT applications; hardware AES-256 encryption or new trusted storage area, firmware secure upgrade SFU/SFI firmware secure download.
  Easy to useThanks to STM32CubeMX, HAL and LL libraries, STM32G0 can carry out intuitive graphical configuration development, maximize reuse and quickly bring to market.
  lower costSTM32G0 strives to innovate for the benefit of customers. Up to 64pin package requires only 1 pair of power supplies; no external clock, no decoupling capacitor, smaller PCB, USB-C PD power supply, integrated transceiver, pull-up and pull-down resistors and digital BMC, and secure programming is implemented internally or by a third party.

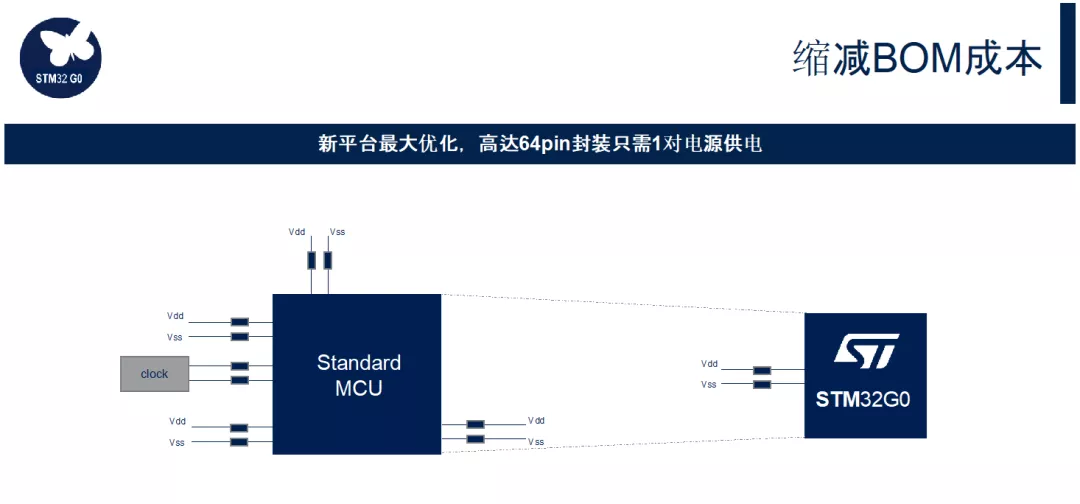

▲ STM32G0 reduces BOM cost
  higher performanceUp to 64 MHz/ 59 DMIPS, up to 142 CoreMark score, ARM Cortex-M0+ comes with a memory protection unit (MPU), and up to 12 channels of DMA can be flexibly configured.
  Lower power consumptionSTM32G0 is a typical example of a perfect match between mainstream MCU and low power consumption requirements. It supports better low power consumption mode and the running power consumption is around 80μA/MHz. Low power consumption modes include sleep mode, STOP mode, STANDBY, SHUTDOWN, and VBAT modes, and the wake-up time only takes 14μs.
  saferSTM32G0 integrates a variety of security features to prevent problems before they occur: firmware IP protection, private code protection, key storage, identity authentication, and secure firmware upgrade.

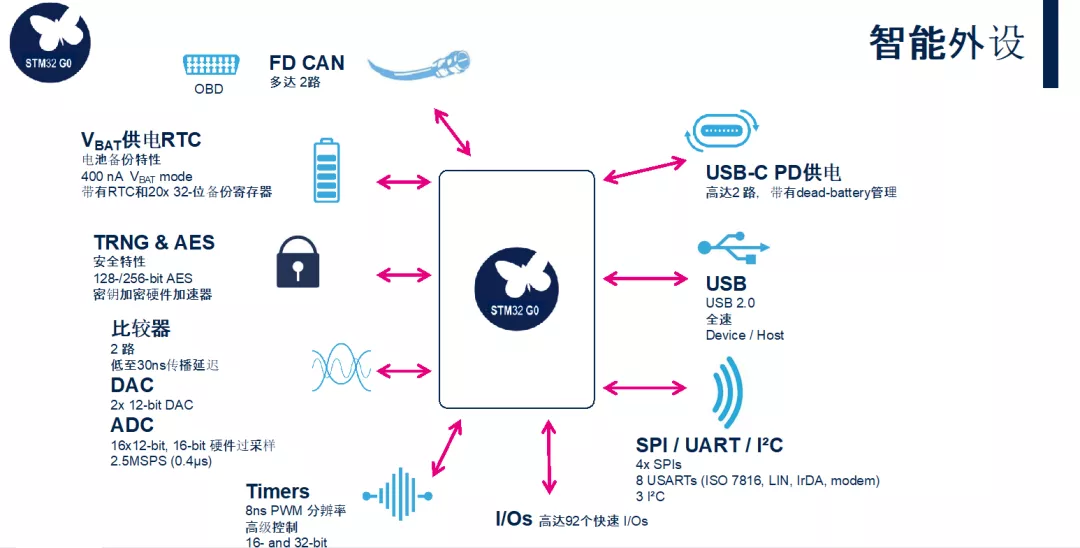

▲STM32G0 supports a variety of smart peripherals
  Faster, more accurate analog and digital featuresSTM32G0 uses larger RAM to match Flash, integrates a timer frequency up to 128MHz resolution (<8ns), and has advanced control capabilities; a 12-bit ADC up to 2.5MSPS (0.4µs) can achieve 16-bit hardware oversampling; in addition, it also integrates 32Mbit/s SPI, 7 M baud/s USART, 1Mbit/s I²C and other common communication interfaces.







STM32 G0 new product portfolio





In 2021, the STM32 G0 product portfolio has been completely upgraded. The three models STM32G0C1 / G0B1 / G0B0 have been mass-produced in Q1, and the three models STM32G061 / G051 / G050 are about to be mass-produced in Q2.
  STM32G0C1 / G0B1 / G0B0It is the most affordable STM32 with 512K Flash. It is a powerful integration of "large storage in a small package". Its features include:

• USB data + UCPD (type-C & Power Delivery)
• FDCAN x2
• Dual-bank Flash: Firmware upgrade, simultaneous reading and writing
• Up to 8 U(S)ART (6xUSART + 2 LPUART)

The STM32G0B1 mainstream microcontroller is based on the high-performance Arm Cortex-M0+ 32-bit RISC core and operates at a frequency of up to 64 MHz. It is suitable for various applications in the Internet of Things, consumer, industrial and home appliance fields. Main parameters:

• 1.7V to 3.6V

• Vbat powered

• Maximum operating ambient temperature 125°C

• secure storage area

• Dual bank Flash

• Crystal-less USB

• 10mA High sink I/Os

• (170mA all I/Os)

• <100µA/MHz operating mode

• Stand-by<1&micro;A with RTC @room

• Stop 5&micro;A @ room

• Shutdown mode

• Robust EMC/ESD/EMS

• 32 / 48 / 64 / 80 / 100 pins

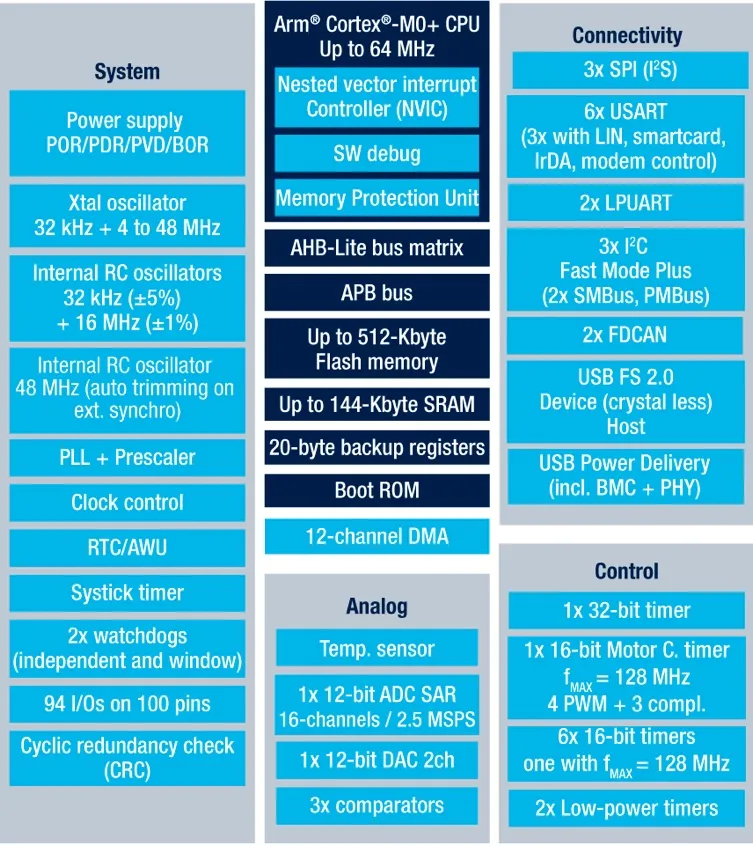

▲STM32G0B1 block diagram
Main features of STM32G0B0 value series:

• ARM 32-bit Cortex-M0+ core
• 2.0 to 3.6V power supply voltage
• Maximum operating ambient temperature 85°C
• Maximize RAM resources: up to 144KB
• 1% internal clock (HSI)
• 12-channel DMA
• Communication peripherals include USB
• timer
• RTC
• Maximize I/O port resources
• 12bit fast ADC
• security features
• debug mode
• 32 / 48 / 64 / 100 pins LQFP

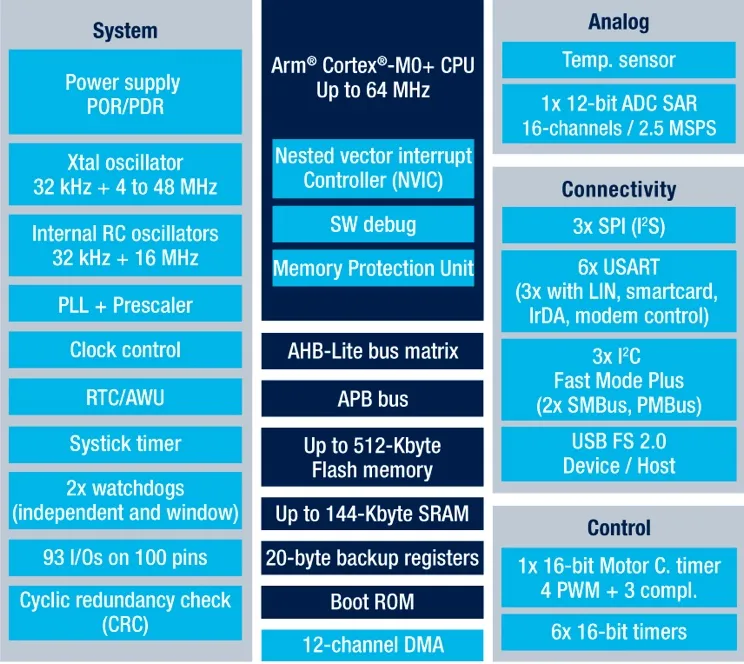

▲STM32G0B0 block diagram

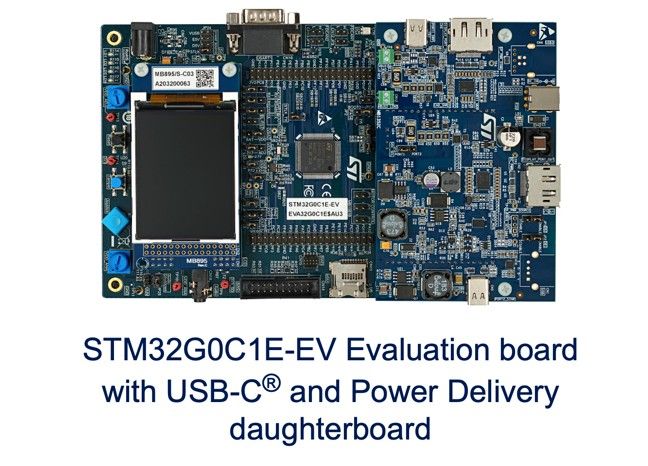

The STM32G0C1E-EV evaluation board is a high-end development platform for the STM32G0C1VET6 microcontroller. Its main features include:

• Internal 512 KB Flash, 144 KB RAM
• USB 2.0 FS devices and hosts
• Two CAN FD, USB Type-C and Power Delivery Controller Interface (UCPD), compatible with USB Type-C r1.2 and USB PD specification r3.0
• Three I2C, three SPI, six USART, two low-power UART
• One 12-bit ADC, two 12-bit DACs
• Three general purpose comparators
• Seven general-purpose timers
• Two low-power timers
• HDMI CEC and SWD debugging support

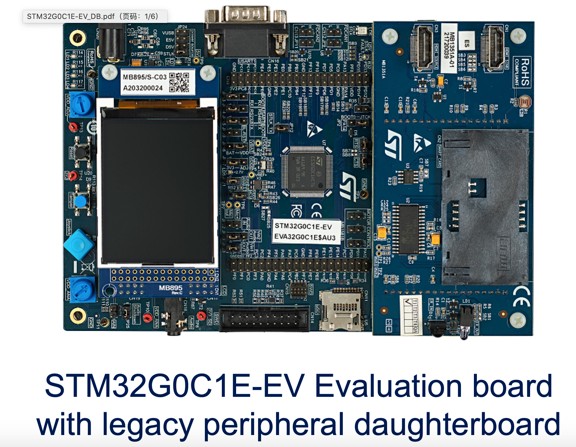

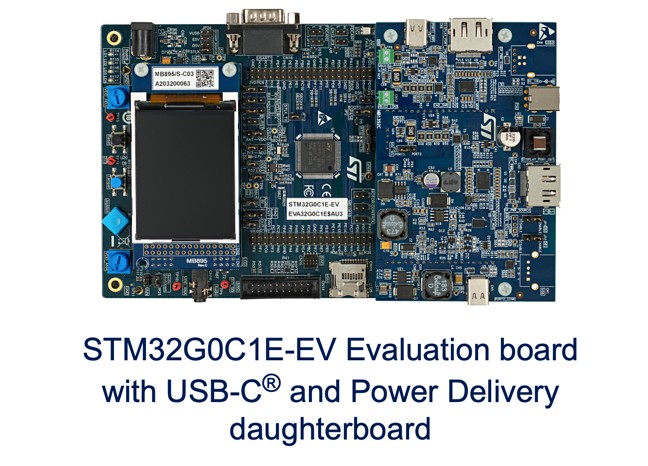

              ▲STM32G0C1E-EV evaluation board


STM32G061 / G051 / G050The price positioning is between G071 & G031, making any G0 product layout competitive:

• Compared with STM32G081/G071/G070, it has 64K Flash, 18K RAM, no UCPD, no 64pin, and is more cost competitive;

• Compared with STM32G041 / G031 / G030, it has larger RAM, DAC12, comparator x2, and the performance is further upgraded.







STM32G0 ecosystem





STM32G0’s latest ecosystem resources include a wealth of hardware and software tools, allowing users to develop their own systems as they wish.

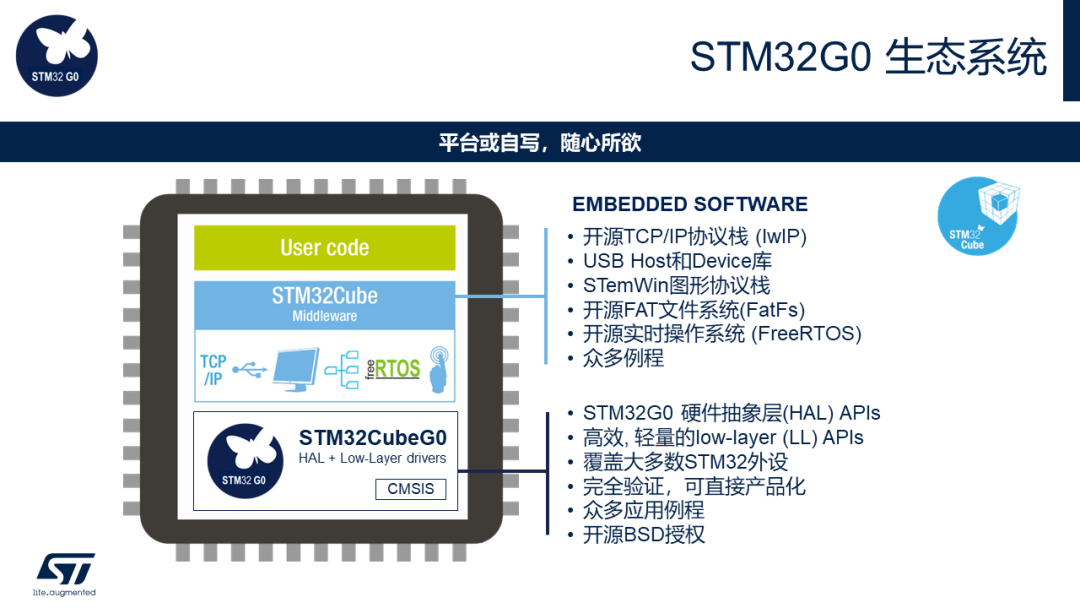

▲ STM32G0 ecosystem

The new STM32G0 series meets the demand for higher performance in simulation, low-power operation or more secure application control. It supports a higher temperature range (up to 125°C) and a wide range of package types, such as WLCSP, UFBGA, TSSOP, SO, QFP and QFN packages, targeting a wide range of application fields such as consumer goods market, Internet of Things, smart locks, home appliances, industrial control (tools, E-bike, etc.), lighting and others (game consoles, industrial control or sensor modules, etc.). In 2021, look forward to the explosion of STM32G0!
