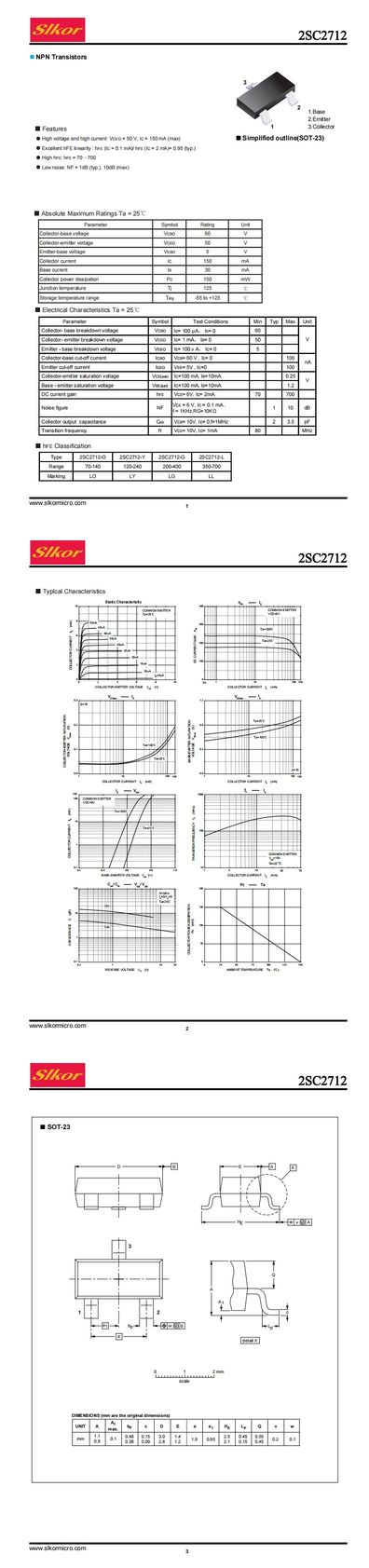

2SC2712-Y NPN Bipolar Transistor SOT-23
The 2SC2712-Y is a versatile NPN bipolar transistor designed for precise amplification and switching applications in electronic circuits. Housed in a compact TO-92 package, this transistor features a maximum collector-emitter voltage (Vceo) of 50V and can handle a continuous collector current (Ic) of up to 150mA. With a power dissipation (Pd) rating of 150mW, it efficiently manages heat dissipation in various circuit configurations. The 2SC2712-Y is characterized by a low saturation voltage (VCE(sat)) of 250mV at 100mA collector current and 10mA base current, ensuring minimal energy loss during operation. It offers a high DC current gain (hFE) of 120 at 2mA collector current and 6V collector-emitter voltage (Vce), making it suitable for applications requiring precise signal amplification and control.
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The 2SC2712-Y is a versatile NPN bipolar transistor designed for precise amplification and switching applications in electronic circuits. Housed in a compact TO-92 package, this transistor features a maximum collector-emitter voltage (Vceo) of 50V and can handle a continuous collector current (Ic) of up to 150mA. With a power dissipation (Pd) rating of 150mW, it efficiently manages heat dissipation in various circuit configurations. The 2SC2712-Y is characterized by a low saturation voltage (VCE(sat)) of 250mV at 100mA collector current and 10mA base current, ensuring minimal energy loss during operation. It offers a high DC current gain (hFE) of 120 at 2mA collector current and 6V collector-emitter voltage (Vce), making it suitable for applications requiring precise signal amplification and control.
Features:
● High voltage and high current: VCEO = 50 V, IC = 150 mA (max)
● Excellent hFE linearity : hFE (IC = 0.1 mA)/ hFE (IC = 2 mA)= 0.95 (typ.)
● High hFE: hFE = 70 700
● Low noise: NF = 1dB (typ.), 10dB (max)
Applications:
The 2SC2712-Y transistor is well-suited for a wide range of applications:
● Signal Amplification: Provides precise amplification in audio and other low-power signal circuits.
● Switching Applications: Efficiently switches signals in logic circuits and small-scale switching applications.
● Voltage Regulation: Controls voltage levels in voltage regulators and power management circuits.
● Sensor Interfaces: Interfaces with sensors due to its low power consumption and high gain characteristics.
● Temperature Monitoring: Suitable for temperature sensing applications with its operational temperature up to +125°C.
