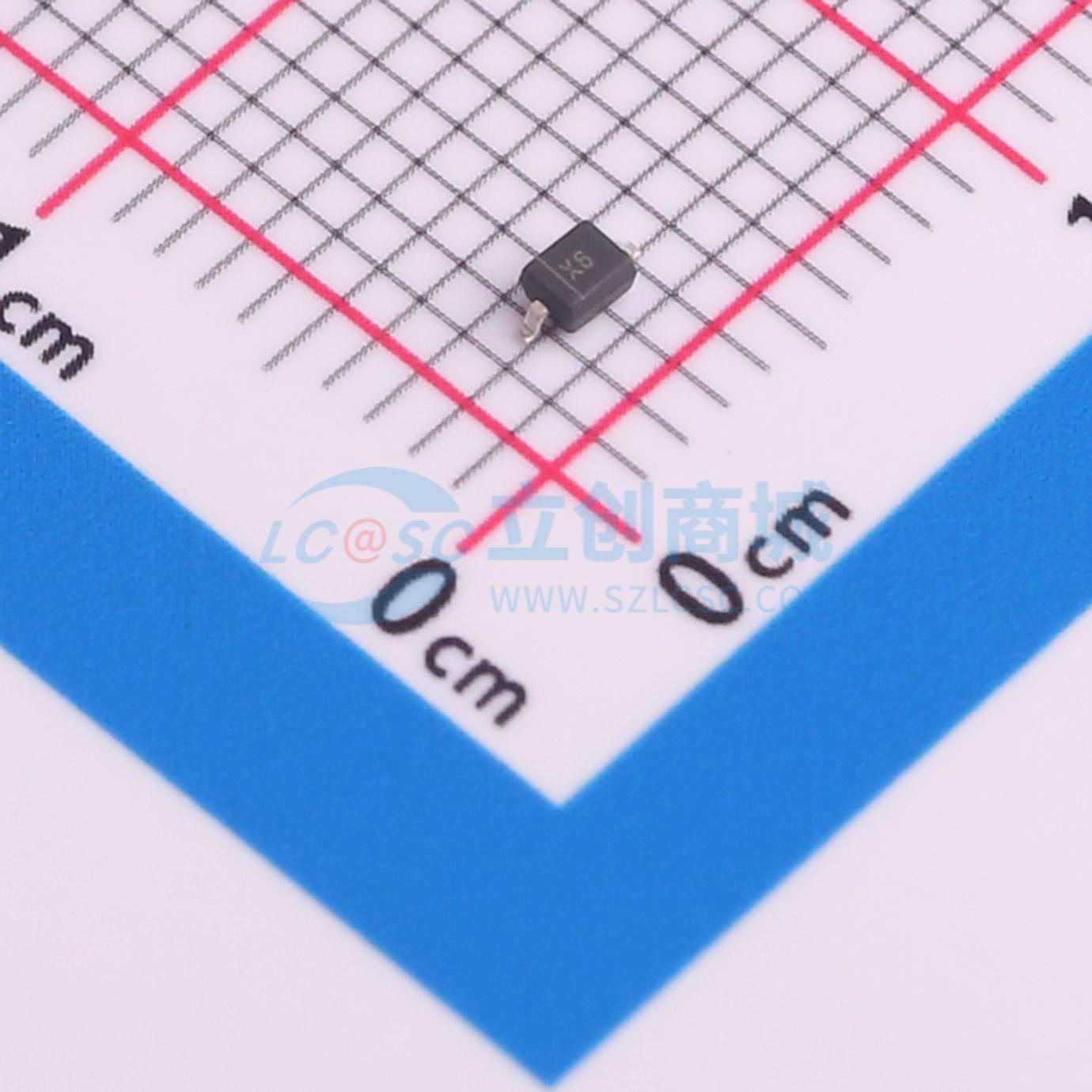

B16WS Schottky Diode Rectifier SOD-323
B16WS Schottky Diode Rectifier SOD-323
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
General Description
The B16WS is a surface-mount Schottky barrier diode designed for general-purpose rectification and low-voltage switching applications. It features peak forward surge current of 10A (8.3ms single half sine-wave, JEDEC method) and maximum instantaneous forward voltage of 0.7V at IF=1.0A, with total capacitance of 120pF measured at VR=4V, f=1MHz. With junction-to-ambient thermal resistance and wide temperature range, this compact surface-mount device delivers stable performance for space-constrained PCB designs.
Features
● Low instantaneous forward voltage of 0.7V @ IF=1.0A
● Peak forward surge current up to 10A (8.3ms single half sine-wave)
● Total capacitance 120pF @ VR=4V, f=1MHz
● Wide storage temperature range from -55℃ to +150℃, maximum junction temperature 125℃
● Surface-mount package ideally suited for automatic assembly
Applications
● Low-voltage Rectification: Ideal for low-voltage rectification tasks in compact electronic devices and consumer products.
● Signal Processing: Suitable for signal processing applications requiring fast switching performance.
● Portable Electronics: Perfect for portable electronics where space and power efficiency are critical.
● Reverse Polarity Protection: Applied for reverse-current protection in various compact circuits.
Name
Title
Description

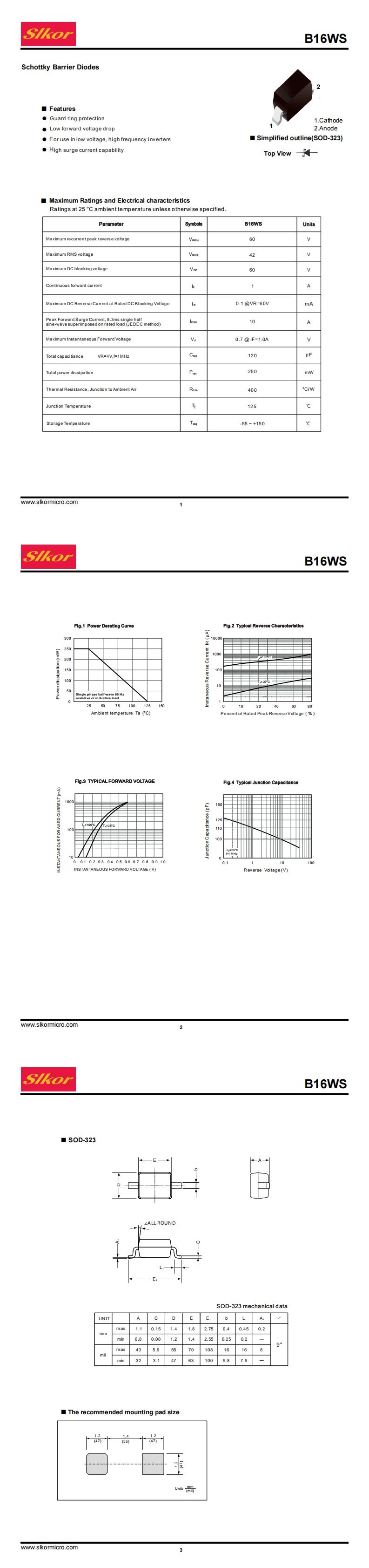

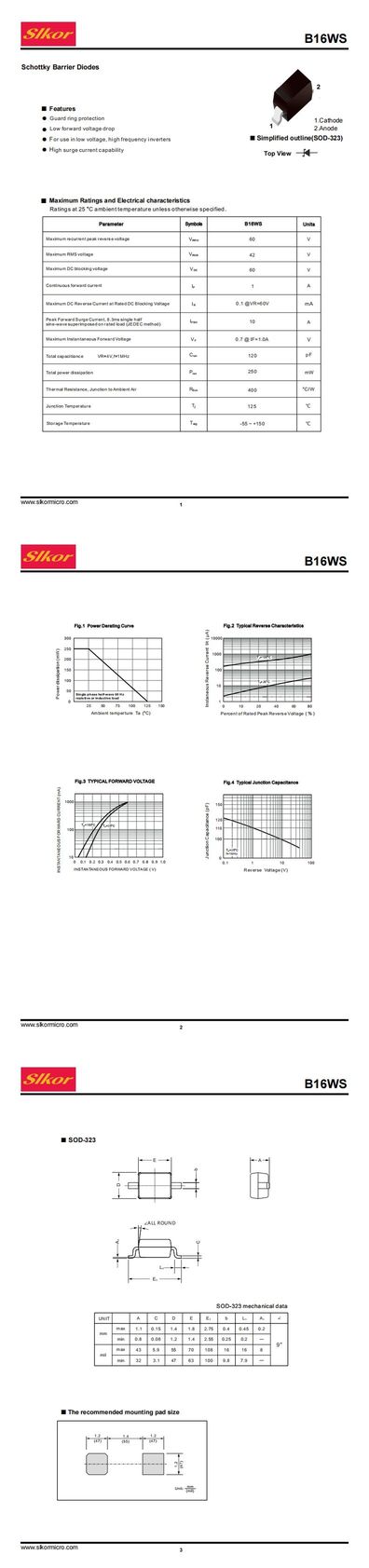

Datasheet
