I. Product Overview

The 78M05 is a classic fixed positive-output linear regulator, widely used in various electronic devices requiring stable power supplies. Featuring high output-voltage accuracy, moderate dropout voltage and low quiescent current, as well as reliable performance, it is a preferred component for many electronic engineers when designing power-supply circuits. The 78M05 can deliver stable and reliable power for a variety of sensitive analog and digital circuits to guarantee normal equipment operation.

II. Product Characteristics

(1) Electrical Parameters

Input Voltage (VIN): 30V The maximum input voltage of the 78M05 is 30 V. It can adapt to diverse power-supply environments and operate stably in both battery-powered portable equipment and industrial devices with fixed power supplies. Meanwhile, the wide input-voltage range brings greater flexibility for circuit design, enabling convenient connection with other power modules or battery packs.

Output Voltage (VOUT): 5V This regulator provides a fixed 5 V output with high accuracy and stability. This output level fits numerous low-voltage electronic components and circuits such as microcontrollers, sensors and analog signal-processing circuits. It supplies precise power for these devices and prevents performance degradation caused by supply-voltage fluctuations.

Dropout Voltage (Vdrop): 2V The dropout voltage of the 78M05 is 2 V, representing the required voltage difference between input and output under output-current conditions. Although its dropout voltage is higher than that of some modern LDO regulators, the 78M05 still achieves efficient power conversion in most applications and maintains good performance especially at relatively high input voltages.

Output Current (IOUT): 6mA Capable of delivering 6 mA output current, the 78M05 meets the demands of low-power devices. Despite its relatively small output-current rating, it can adequately support many low-power microcontrollers, sensors and communication modules for stable operation in low-power modes.

Quiescent Current (Ground Current): Low The regulator features extremely low quiescent current, meaning it consumes very little power under no-load or light-load conditions. Low quiescent current is critical for low-power designs. Particularly for battery-operated portable devices, it effectively reduces no-load power dissipation, extends standby time and improves overall system energy efficiency.

(2) Package Form

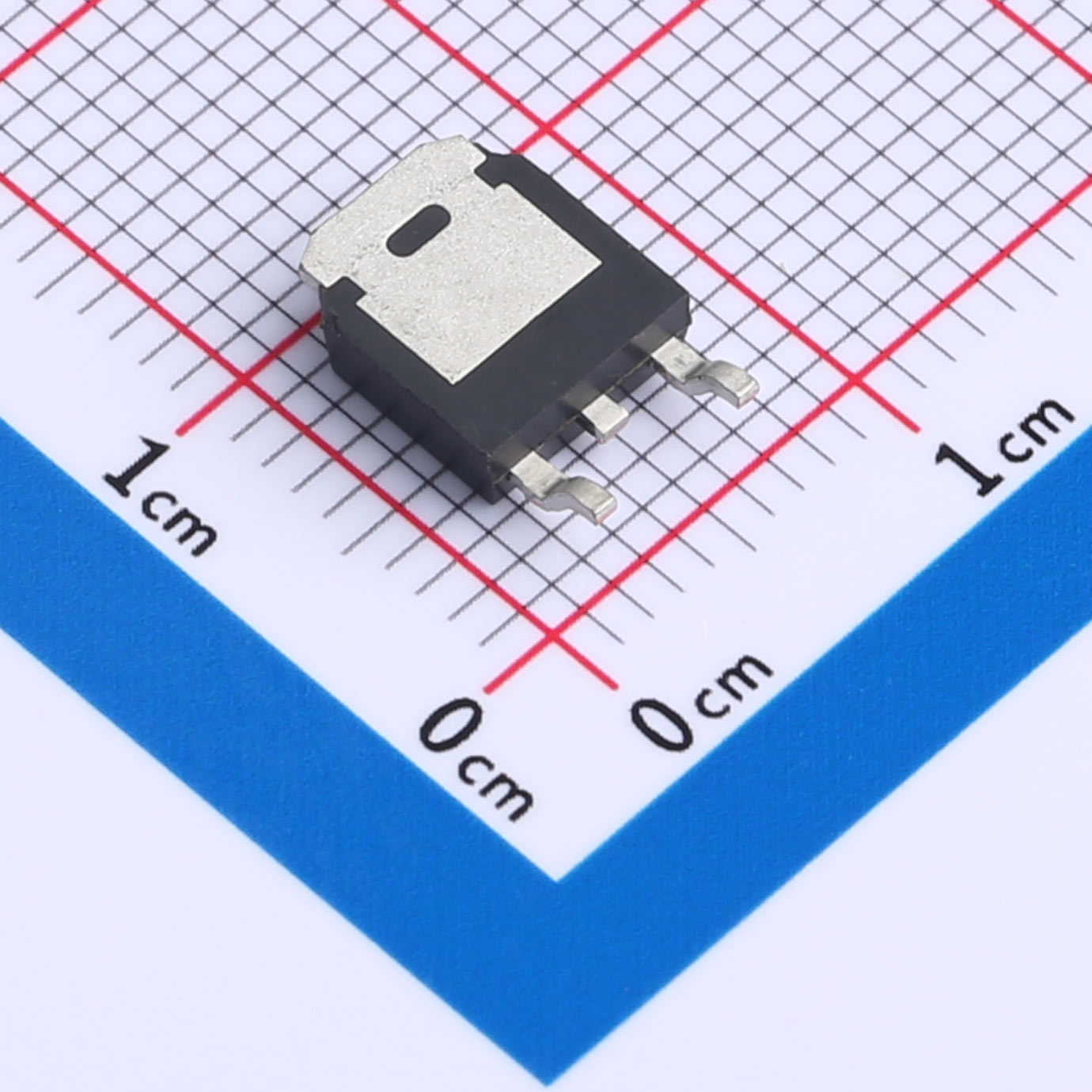

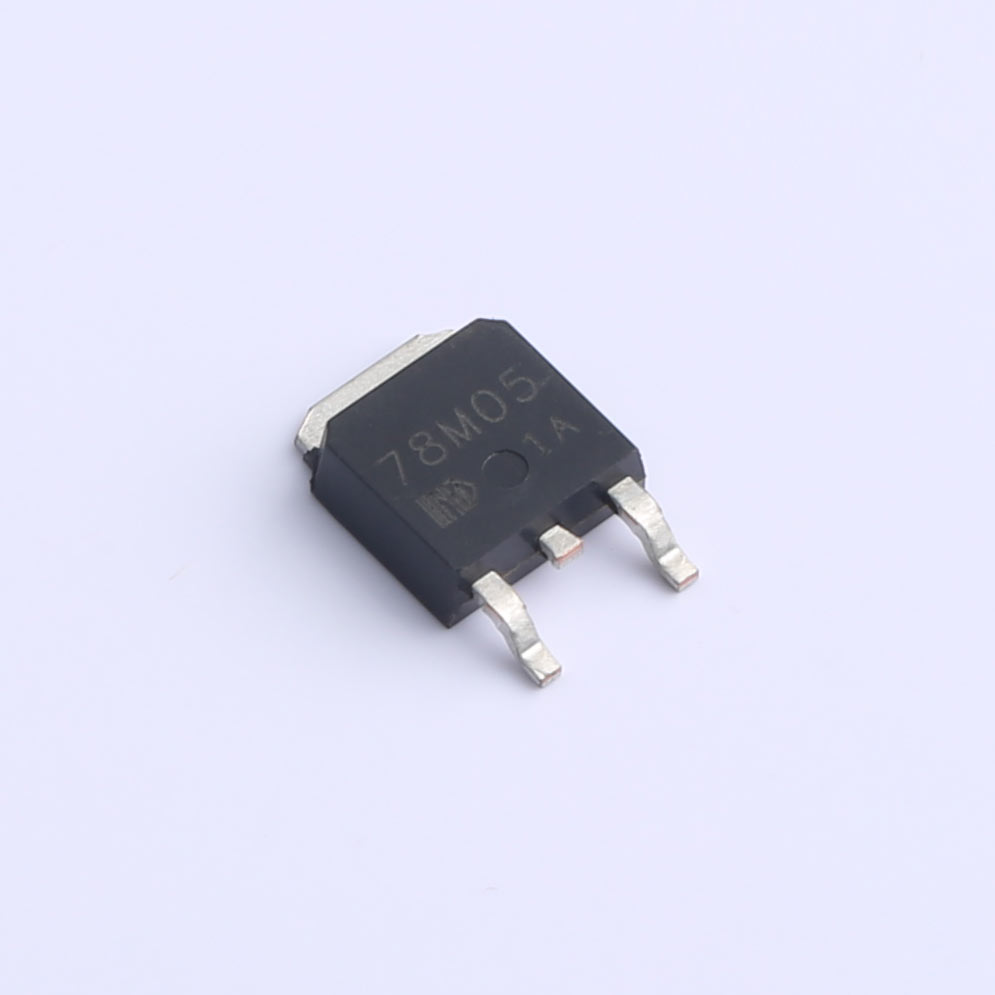

The 78M05 is available in the TO-252 package. This package features compact dimensions, good thermal dissipation and easy mounting. TO-252 packaged regulators can be soldered directly onto printed circuit boards (PCBs), making them suitable for space-constrained applications such as portable equipment and compact sensor modules. In addition, favorable thermal performance helps the device operate stably under high-power or high-temperature conditions and ensures reliable circuit performance.

(3) Protection Features

The 78M05 integrates over-temperature protection and short-circuit protection. When the device temperature exceeds safe limits or a short-circuit occurs at the output terminal, the output will shut down automatically to avoid component damage from overheating or overcurrent. These protection mechanisms offer extra circuit safety margin. Especially under high-power output or high-ambient-temperature conditions, they reliably protect the regulator and connected electronic components, ensuring circuit stability and robustness.

(4) Operating Temperature

The 78M05 supports normal operation over a broad temperature range and can withstand harsh environmental conditions, maintaining consistent performance in cold outdoor settings as well as high-temperature industrial sites. This characteristic enables broad application prospects in automotive electronics, industrial automation, aerospace and other fields, satisfying strict power-supply stability requirements across diverse working environments.

III. Application Fields

Power Supply for Microcontrollers Thanks to low quiescent current and high output-voltage accuracy, the 78M05 is well-suited for powering microcontrollers. Whether for low-power embedded systems or high-performance microcontroller implementations, it delivers precise power under varied operating conditions and enhances overall system stability and reliability.

Power Supply for Sensors In sensor applications, the low-noise performance and high power-supply ripple rejection of the 78M05 provide high-quality power for sensors, supporting accurate measurement and signal transmission. Temperature sensors, pressure sensors, optical sensors and other types can operate within a stable power domain, yielding improved measurement accuracy and repeatability.

Power Supply for Communication Modules Communication modules require stable power to guarantee accurate and reliable data transmission. Benefiting from its dropout performance and output-current capability, the 78M05 delivers efficient power support for communication modules. For battery-powered portable communication devices in particular, it helps extend battery service life while maintaining normal module operation.

Portable Equipment Combining the compact TO-252 package with low quiescent-current characteristics, the 78M05 is ideal for portable devices including smartphones, tablets and smartwatches. Such equipment imposes strict constraints on power-supply size and power consumption. The 78M05 provides stable power within limited physical space and prolongs battery runtime.
