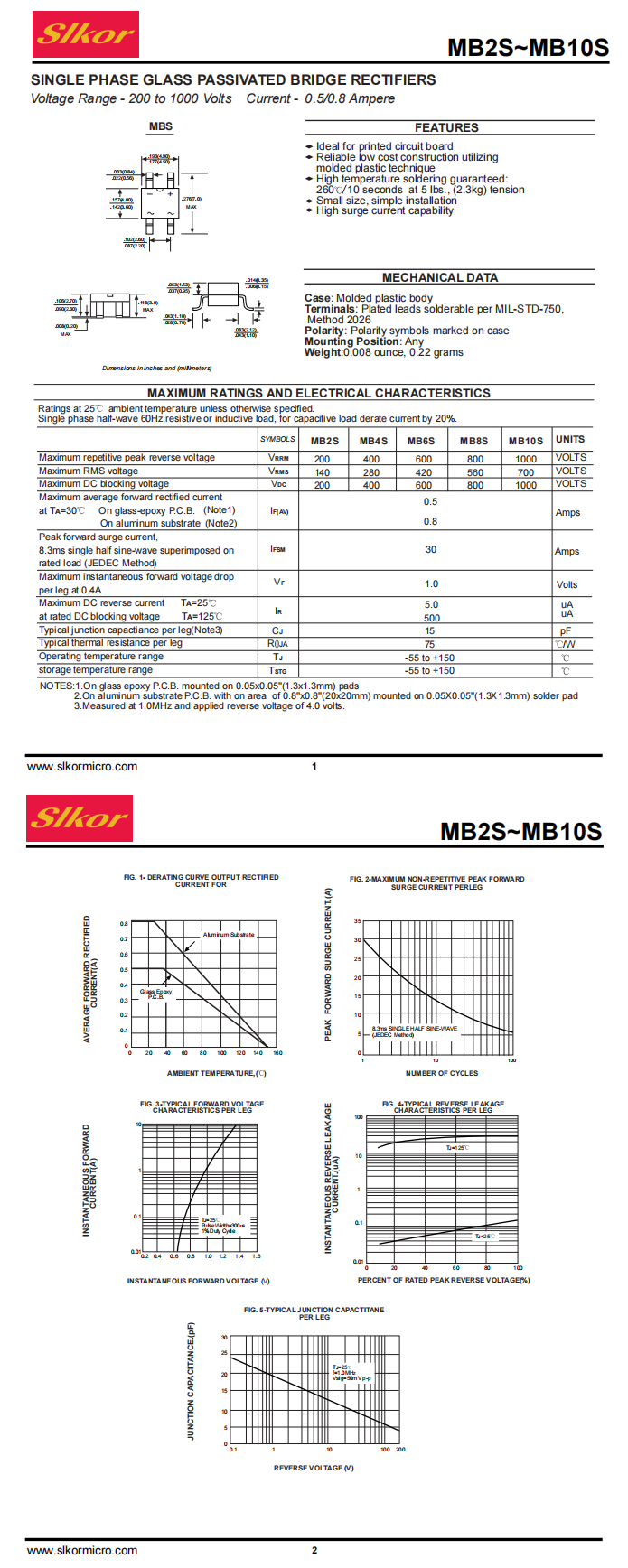

MB10S Bridge Rectifier MBS
Single Phase Glass PassiveTED Bridge Rectifiers
Single Phase Glass PassiveTED Bridge Rectifiers
Voltage Range - 200 to 1000 Volts Current -0.5/0.8 Ampere
Features
l Ideal for printed circuit board
l Reliable low cost construction utilizing molded plastic technique
l High temperature soldering guaranteed:260/10 seconds at 5 lbs., (2.3kg) tension
l Small size, simple installation
l High surge current capability
Mechanical Data
l Case: Molded plastic body
l Terminals: Plated leads solderable per MIL-STD-750,Method 2026
l Polarity: Polarity symbols marked on case
l Mounting Position: Any
l Weight:0.008 ounce, 0.22 grams
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
ABS10 Bridge Rectifier Diode ABS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1A VF（V）： 1V IFSM（A）： 30A Package： ABS
ABS210 Bridge Rectifier Diode ABS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 2.0A VF（V）： 1.0V IFSM（A）： 50A Package： ABS
DB107S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1.0A VF（V）： 1.1V IFSM（A）： 50A Package： DBS
DB157S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 1.5A VF（V）： 1.1V IFSM（A）： 50A Package： DBS
DB207S Bridge Rectifier DBS
Brand: slkor， VRRM(V)： 1000V IAV(A)： 2.0A VF（V）： 1.1V IFSM（A）： 60A Package： DBS
DB301S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 50V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB302S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 100V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB303S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 200V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB304S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 400V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
DB305S Bridge Rectifier Diode DBS
Brand: slkor， VRRM(V)： 600V IAV(A)： 3A VF（V）： 1.1V IFSM（A）： 80A Package： DBS
