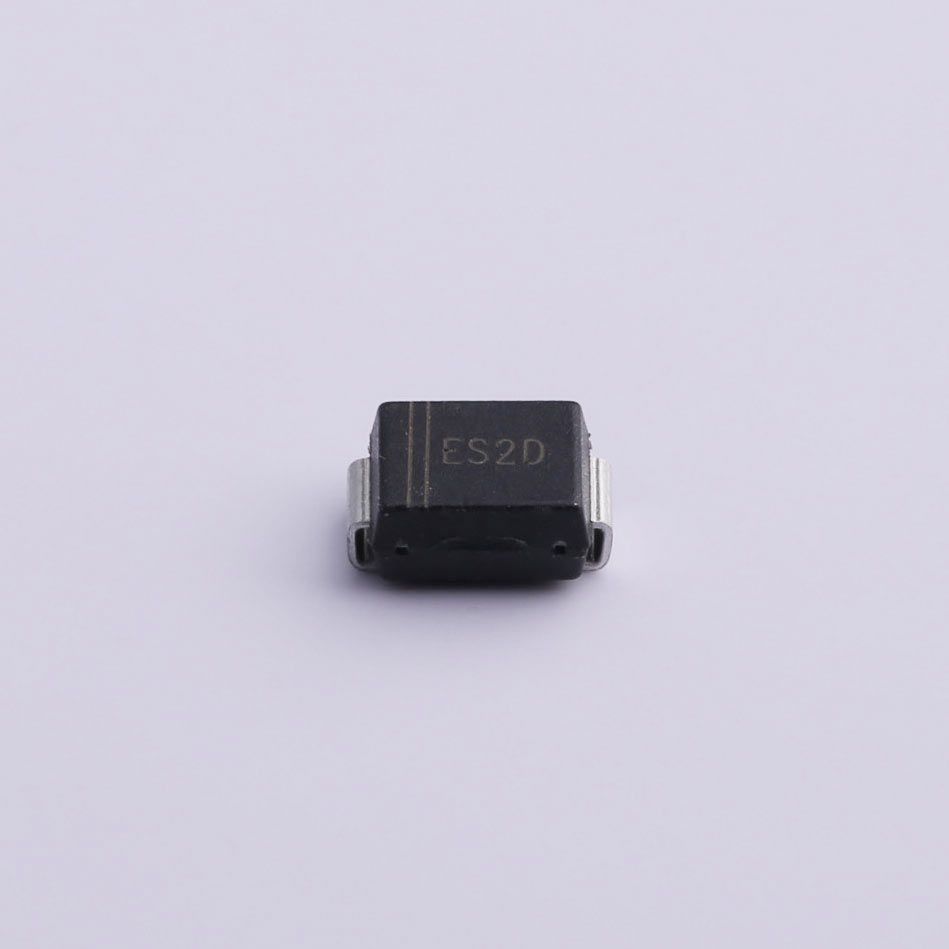

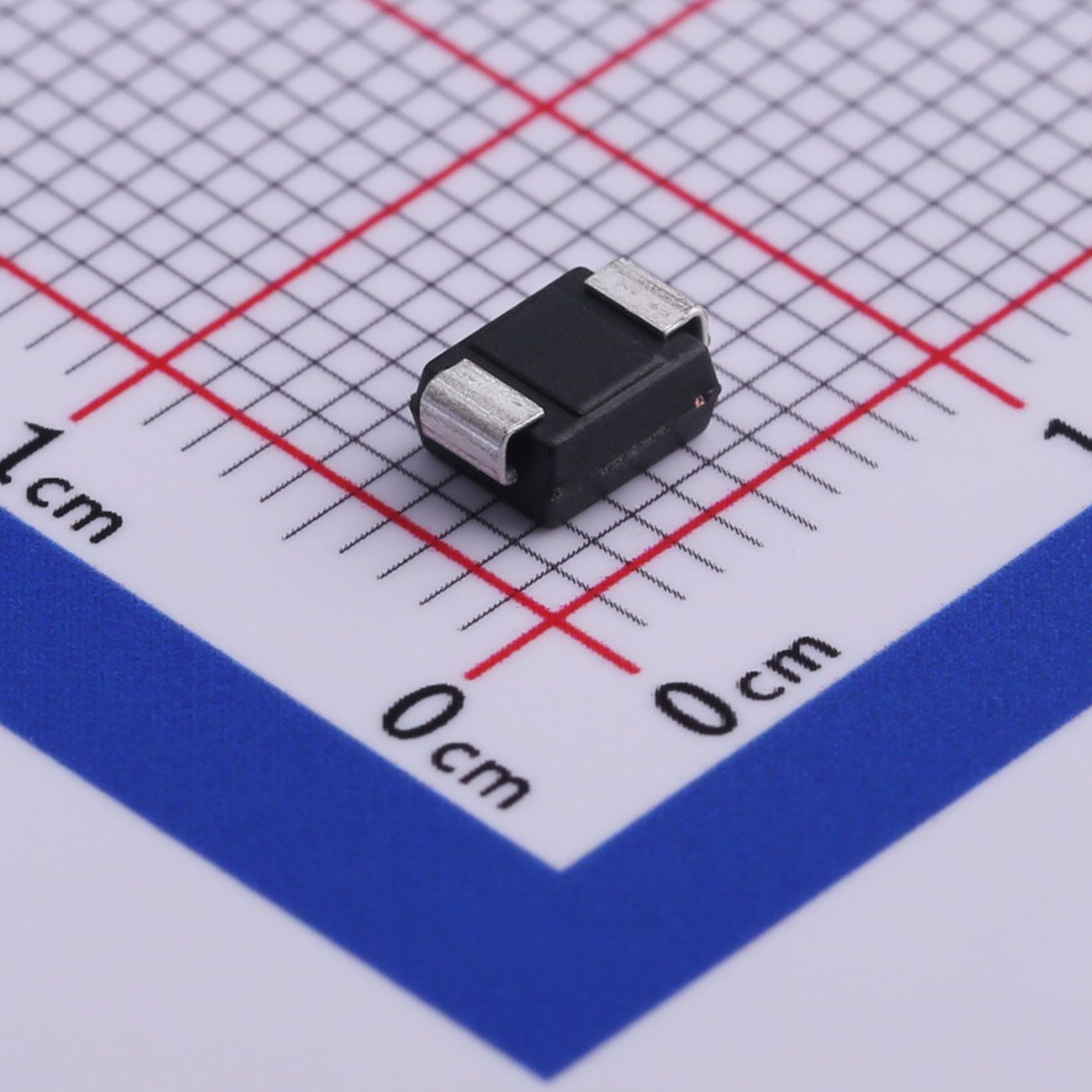

ES2D Fast Recovery Rectifier SMB
The ES2D is a surface-mount super fast recovery rectifier diode packaged in SMB (DO-214AA), featuring glass passivated junction and ultra-fast reverse recovery time for high-efficiency rectification applications.
Description
The ES2D is a surface-mount super fast recovery rectifier diode packaged in SMB (DO-214AA), featuring glass passivated junction and ultra-fast reverse recovery time for high-efficiency rectification applications.
Features
● Average Forward Rectified Current up to 2.0A
● Repetitive Peak Reverse Voltage: 200V
● Typical Reverse Recovery Time: 35ns
● Glass passivated junction
● Low-profile SMB surface-mount package
● High temperature soldering: 250°C /10 seconds
● Plastic package meets UL 94V-0 flammability rating
● RoHS compliant
● Operating junction temperature range: -55℃ ~ 150℃
Applications
● Switch-mode power supply rectification
● High-frequency DC-DC converters
● Free-wheeling diodes
● Flyback diodes
● Battery charging circuits
● Consumer electronics power modules
The ES2D is a surface-mount super fast recovery rectifier diode packaged in SMB (DO-214AA), featuring glass passivated junction and ultra-fast reverse recovery time for high-efficiency rectification applications.
Features
● Average Forward Rectified Current up to 2.0A
● Repetitive Peak Reverse Voltage: 200V
● Typical Reverse Recovery Time: 35ns
● Glass passivated junction
● Low-profile SMB surface-mount package
● High temperature soldering: 250°C /10 seconds
● Plastic package meets UL 94V-0 flammability rating
● RoHS compliant
● Operating junction temperature range: -55℃ ~ 150℃
Applications
● Switch-mode power supply rectification
● High-frequency DC-DC converters
● Free-wheeling diodes
● Flyback diodes
● Battery charging circuits
● Consumer electronics power modules
Name
Title
Description
Datasheet
Support
E1D Ultra Fast Recovery Rectifier SOD-123FL
Brand: slkor， VRRM(V)： 200V IO(A)： 1A VF(V)： 1.7V IR(A)： 50μA trr(ns)： 35ns Package： SOD-123FL
E1J Ultra Fast Recovery Rectifier SOD-123FL
Brand: slkor， VRRM(V)： 600V IO(A)： 1A VF(V)： 1.7V IR(A)： 50μA trr(ns)： 35ns Package： SOD-123FL
ES1D Fast Recovery Rectifier Diode SMA
Brand: slkor， VRRM(V)： 200V IO(A)： 1A VF(V)： 0.95V IR(A)： 5μA trr(ns)： 35ns Package： SMA
ES1J Fast Recovery Rectifier SMA
Brand: slkor， VRRM(V)： 600V IO(A)： 1A VF(V)： 1.7V IR(A)： 5μA trr(ns)： 35ns Package： SMA
ES2J Fast Recovery Rectifier Diode SMA
Brand: slkor， VRRM(V)： 600V IO(A)： 2A VF(V)： 1.68V@2A IR(A)： 5μA@600V trr(ns)： 35ns Package： SMA
ES2JB Fast Recovery Rectifier Diode SMB
Brand: slkor， VRRM(V)： 600V IO(A)： 2A VF(V)： 1.68V IR(A)： 5μA trr(ns)： 35ns Package： SMB
ES3JB Fast Recovery Rectifier Diode SMB
Brand: slkor， VRRM(V)： 600V IO(A)： 3A VF(V)： 1.68V IR(A)： 5μA trr(ns)： 35ns Package： SMB
ES3JC Fast Recovery Rectifier Diode SMC
Brand: slkor， VRRM(V)： 600V IO(A)： 3A VF(V)： 1.68V IR(A)： 5μA trr(ns)： 35ns Package： SMC
ES5JBF Fast Recovery Rectifier Diode SMBF
Brand: slkor， VRRM(V)： 600V IO(A)： 5A VF(V)： 1.7V IR(A)： 10μA trr(ns)： 35ns Package： SMBF
SF1001DS Fast Recovery Rectifier Diode TO-252
Brand: slkor， VRRM(V)： 100V IO(A)： 10A VF(V)： 0.95V IR(A)： 1μA trr(ns)： 35ns Package： TO-252
