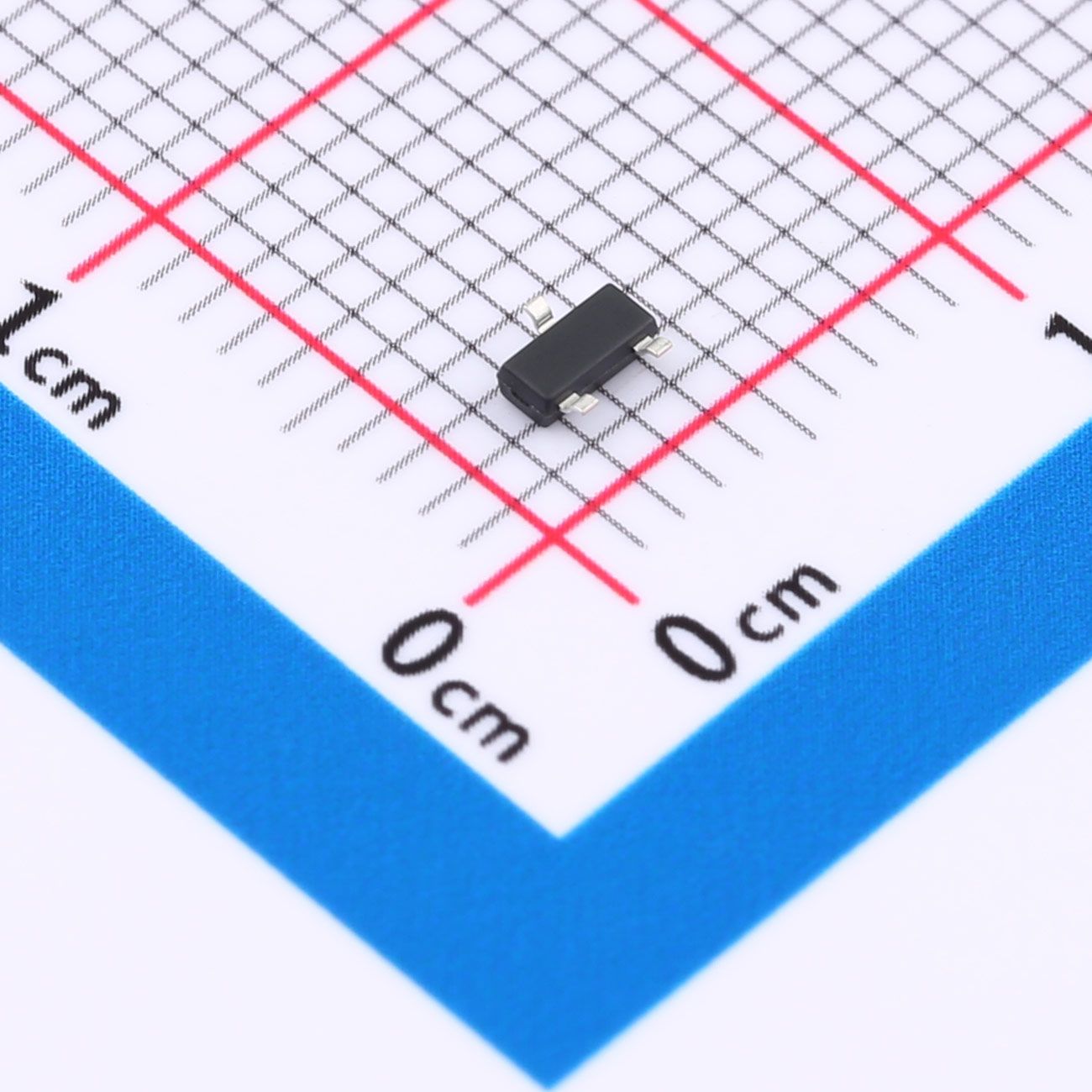

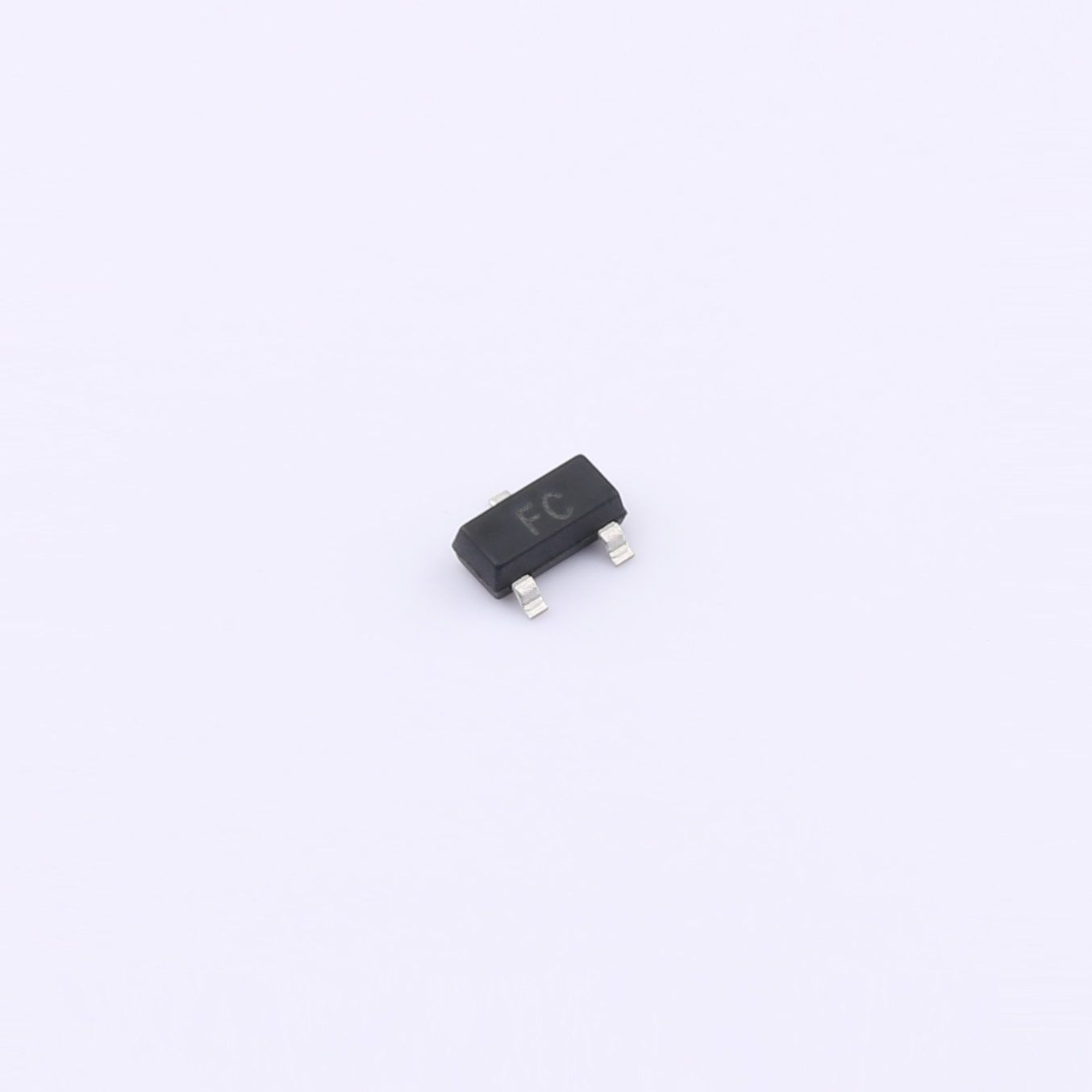

BAS19 Switching Diodes SOT-23
The BAS19 is a silicon epitaxial planar high-voltage switching diode packaged in compact SOT-23 surface-mount housing, designed for general-purpose high-voltage small-signal switching applications.
Description
The BAS19 is a silicon epitaxial planar high-voltage switching diode packaged in compact SOT-23 surface-mount housing, designed for general-purpose high-voltage small-signal switching applications.
Features
● High reverse voltage capability
● Miniature SOT-23 small-form-factor package
● Low junction capacitance
● Silicon epitaxial planar chip structure
● Suitable for automated SMD assembly
● Wide operating junction and storage temperature range: -55℃ ~ +150℃
Applications
● High-voltage small-signal switching circuits
● Signal clamping and over-voltage protection
● Industrial control circuits
● Consumer electronic control boards
● Portable electronic equipment
● High-speed logic processing modules
The BAS19 is a silicon epitaxial planar high-voltage switching diode packaged in compact SOT-23 surface-mount housing, designed for general-purpose high-voltage small-signal switching applications.
Features
● High reverse voltage capability
● Miniature SOT-23 small-form-factor package
● Low junction capacitance
● Silicon epitaxial planar chip structure
● Suitable for automated SMD assembly
● Wide operating junction and storage temperature range: -55℃ ~ +150℃
Applications
● High-voltage small-signal switching circuits
● Signal clamping and over-voltage protection
● Industrial control circuits
● Consumer electronic control boards
● Portable electronic equipment
● High-speed logic processing modules
Name
Title
Description
Datasheet
Support
1N4148W Fast Switching Diode SOD-123
Brand: slkor， VRRM(V)： 75V IO(A)： 150mA VF(V)： 1V IR(uA)： 25nA trr(ns)： 4ns Package： SOD-123
1N4148WS Surface Mount Switching Diode SOD-323
Brand: slkor， VRRM(V)： 75V IO(A)： 150mA VF(V)： 1V IR(uA)： 1μA trr(ns)： 4ns Package： SOD-323
1N4148WT Small Signal Diode SOD-523
Brand: slkor， VRRM(V)： 80V IO(A)： 100mA VF(V)： 1.25V IR(uA)： 100nA trr(ns)： 4ns Package： SOD-523
1N4448WS Fast Switching Diode
Brand: slkor， VRRM(V)： 75V IO(A)： 250mA VF(V)： 0.62V IR(uA)： 2.5μA trr(ns)： 4ns Package： SOD-323
1SS184 Switching Diodes SOT-23
Brand: slkor， VRRM(V)： 85V IO(A)： 100mA VF(V)： 0.6V IR(uA)： 0.1μA trr(ns)： 1.6ns Package： SOT-23
1SS352 Switching Diodes SOD-323
Brand: slkor， VRRM(V)： 80V IO(A)： 100mA VF(V)： 1.2V@100mA IR(uA)： 100nA@30V trr(ns)： 1.6ns Package： SOT-323
1SS355 Fast Switching Diodes SOD-323
Brand: slkor， VRRM(V)： 90V IO(A)： 100mA VF(V)： 1.2V IR(uA)： 0.1μA trr(ns)： 4ns Package： SOD-323
1SS400CM Switching Diodes SOD-923
Brand: slkor， VRRM(V)： 80V IO(A)： 100mA VF(V)： 1.2V@100mA IR(uA)： 100nA trr(ns)： 4ns Package： SOD-923
1ss226 Fast Switching Diodes SOT-23
Brand: slkor， VRRM(V)： 85V IO(A)： 100mA VF(V)： 0.9V IR(uA)： 0.5μA@80V trr(ns)： 4ns Package： SOT-23
2SA2071 Switching Diodes SOT-89
Brand: slkor，
