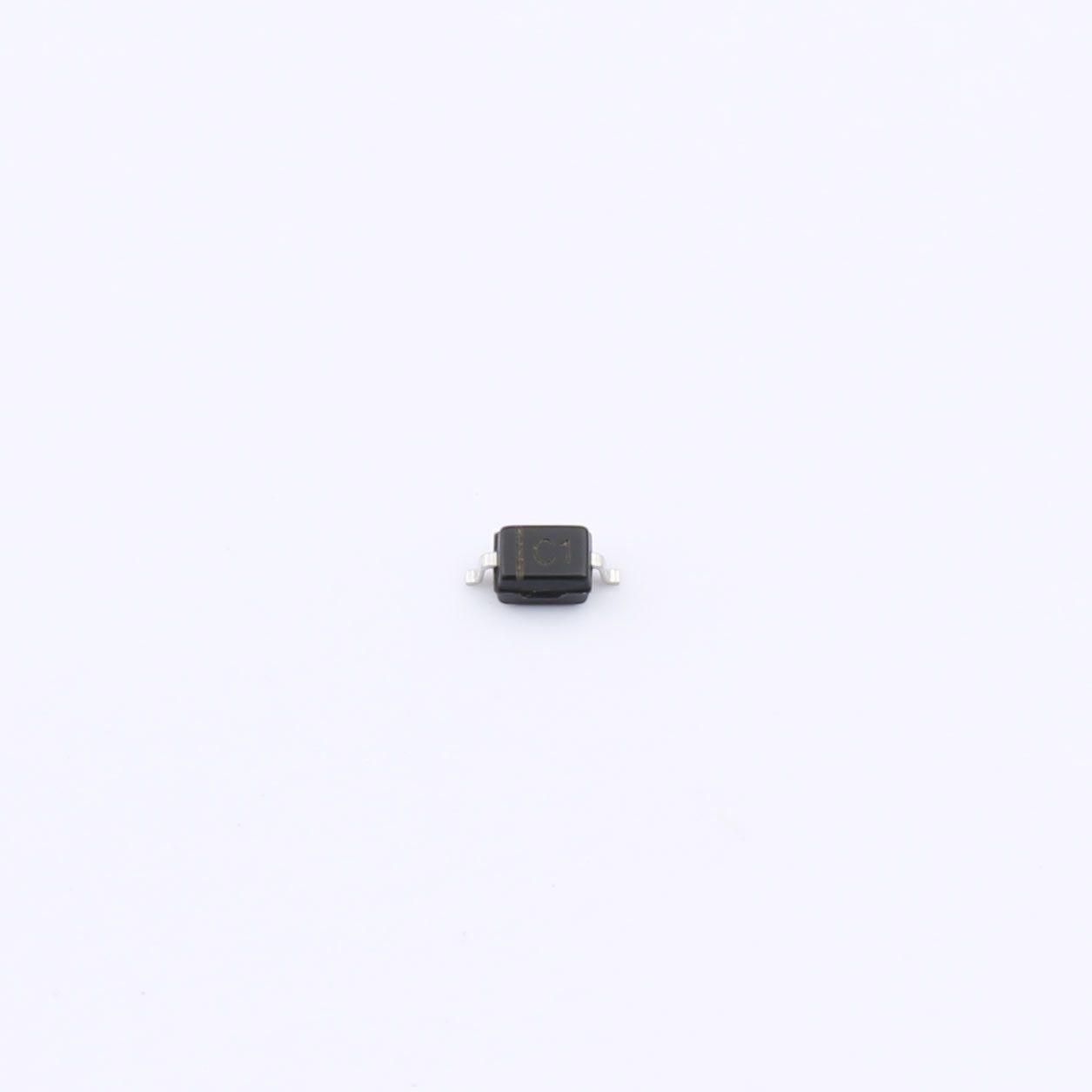

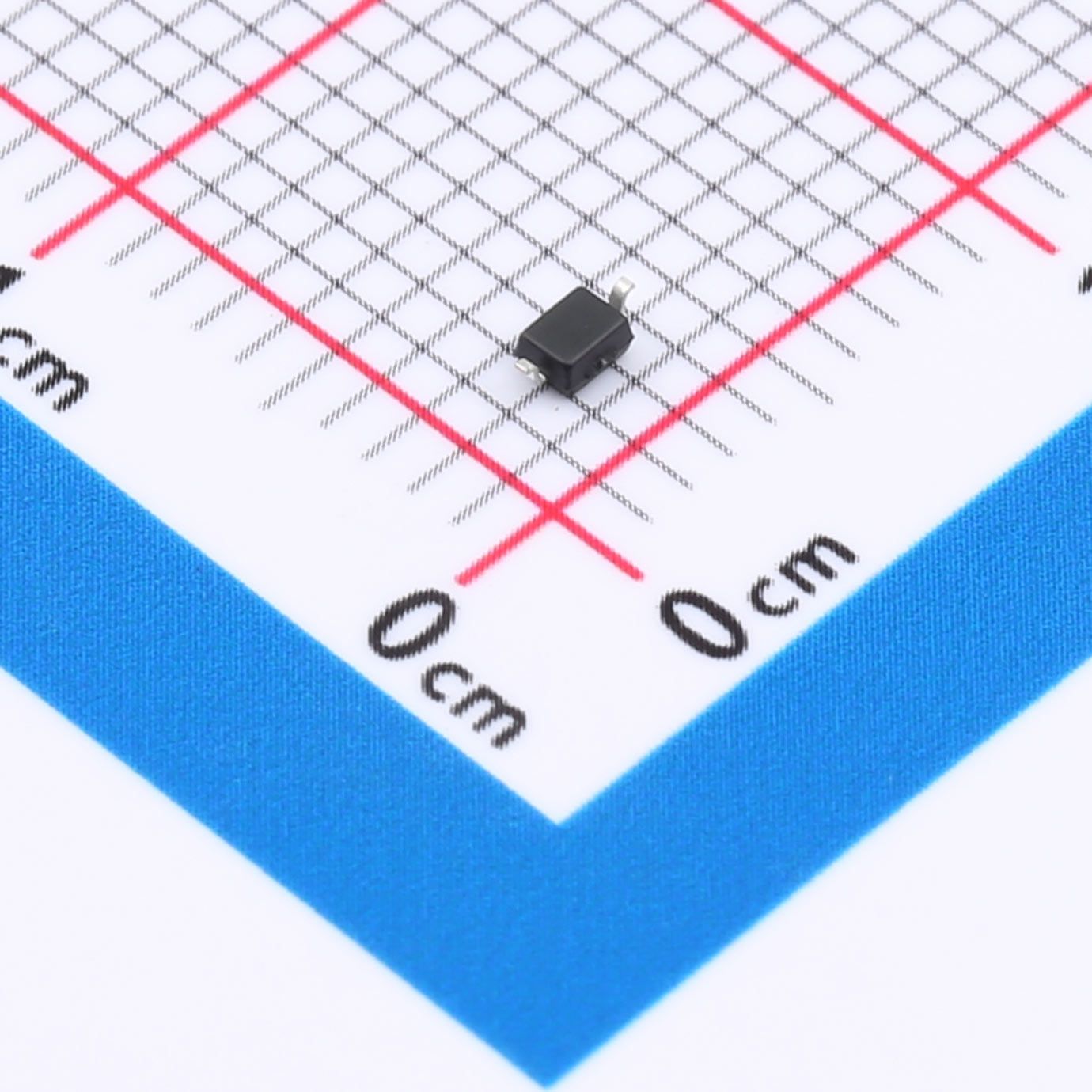

1SS352 Switching Diodes SOD-323
The 1SS352 is a fast-switching surface-mount diode housed in miniature SOD-323 package, featuring low forward voltage, fast reverse recovery time and small total capacitance for high-speed small-signal switching applications.
Description
The 1SS352 is a fast-switching surface-mount diode housed in miniature SOD-323 package, featuring low forward voltage, fast reverse recovery time and small total capacitance for high-speed small-signal switching applications.
Features
● Fast reverse recovery time, typical 1.6ns, max 4ns
● Low forward voltage characteristic
● Small total terminal capacitance: max 3pF
● Non-repetitive peak reverse voltage: 85V
● Average forward current: 100mA
● Non-repetitive peak forward surge current: 1A @10ms
● Miniature SOD-323 surface-mount package
● Power dissipation: 200mW
● Operating junction and storage temperature: -55℃ ~ +150℃
Applications
● High-speed small-signal switching circuits
● Signal clamping and circuit protection
● Logic-level conversion
● High-density portable consumer electronics
● Compact electronic control modules
● High-frequency signal processing circuits
The 1SS352 is a fast-switching surface-mount diode housed in miniature SOD-323 package, featuring low forward voltage, fast reverse recovery time and small total capacitance for high-speed small-signal switching applications.
Features
● Fast reverse recovery time, typical 1.6ns, max 4ns
● Low forward voltage characteristic
● Small total terminal capacitance: max 3pF
● Non-repetitive peak reverse voltage: 85V
● Average forward current: 100mA
● Non-repetitive peak forward surge current: 1A @10ms
● Miniature SOD-323 surface-mount package
● Power dissipation: 200mW
● Operating junction and storage temperature: -55℃ ~ +150℃
Applications
● High-speed small-signal switching circuits
● Signal clamping and circuit protection
● Logic-level conversion
● High-density portable consumer electronics
● Compact electronic control modules
● High-frequency signal processing circuits
Name
Title
Description
Datasheet
Support
1N4148W Fast Switching Diode SOD-123
Brand: slkor， VRRM(V)： 75V IO(A)： 150mA VF(V)： 1V IR(uA)： 25nA trr(ns)： 4ns Package： SOD-123
1N4148WS Surface Mount Switching Diode SOD-323
Brand: slkor， VRRM(V)： 75V IO(A)： 150mA VF(V)： 1V IR(uA)： 1μA trr(ns)： 4ns Package： SOD-323
1N4148WT Small Signal Diode SOD-523
Brand: slkor， VRRM(V)： 80V IO(A)： 100mA VF(V)： 1.25V IR(uA)： 100nA trr(ns)： 4ns Package： SOD-523
1N4448WS Fast Switching Diode
Brand: slkor， VRRM(V)： 75V IO(A)： 250mA VF(V)： 0.62V IR(uA)： 2.5μA trr(ns)： 4ns Package： SOD-323
1SS184 Switching Diodes SOT-23
Brand: slkor， VRRM(V)： 85V IO(A)： 100mA VF(V)： 0.6V IR(uA)： 0.1μA trr(ns)： 1.6ns Package： SOT-23
1SS355 Fast Switching Diodes SOD-323
Brand: slkor， VRRM(V)： 90V IO(A)： 100mA VF(V)： 1.2V IR(uA)： 0.1μA trr(ns)： 4ns Package： SOD-323
1SS400CM Switching Diodes SOD-923
Brand: slkor， VRRM(V)： 80V IO(A)： 100mA VF(V)： 1.2V@100mA IR(uA)： 100nA trr(ns)： 4ns Package： SOD-923
1ss226 Fast Switching Diodes SOT-23
Brand: slkor， VRRM(V)： 85V IO(A)： 100mA VF(V)： 0.9V IR(uA)： 0.5μA@80V trr(ns)： 4ns Package： SOT-23
2SA2071 Switching Diodes SOT-89
Brand: slkor，
BAS16 Switching Diodes SOT-23
Brand: slkor， VRRM(V)： 100V IO(A)： 200mA VF(V)： 0.715V IR(uA)： 1μA trr(ns)： 4ns Package： SOT-23
