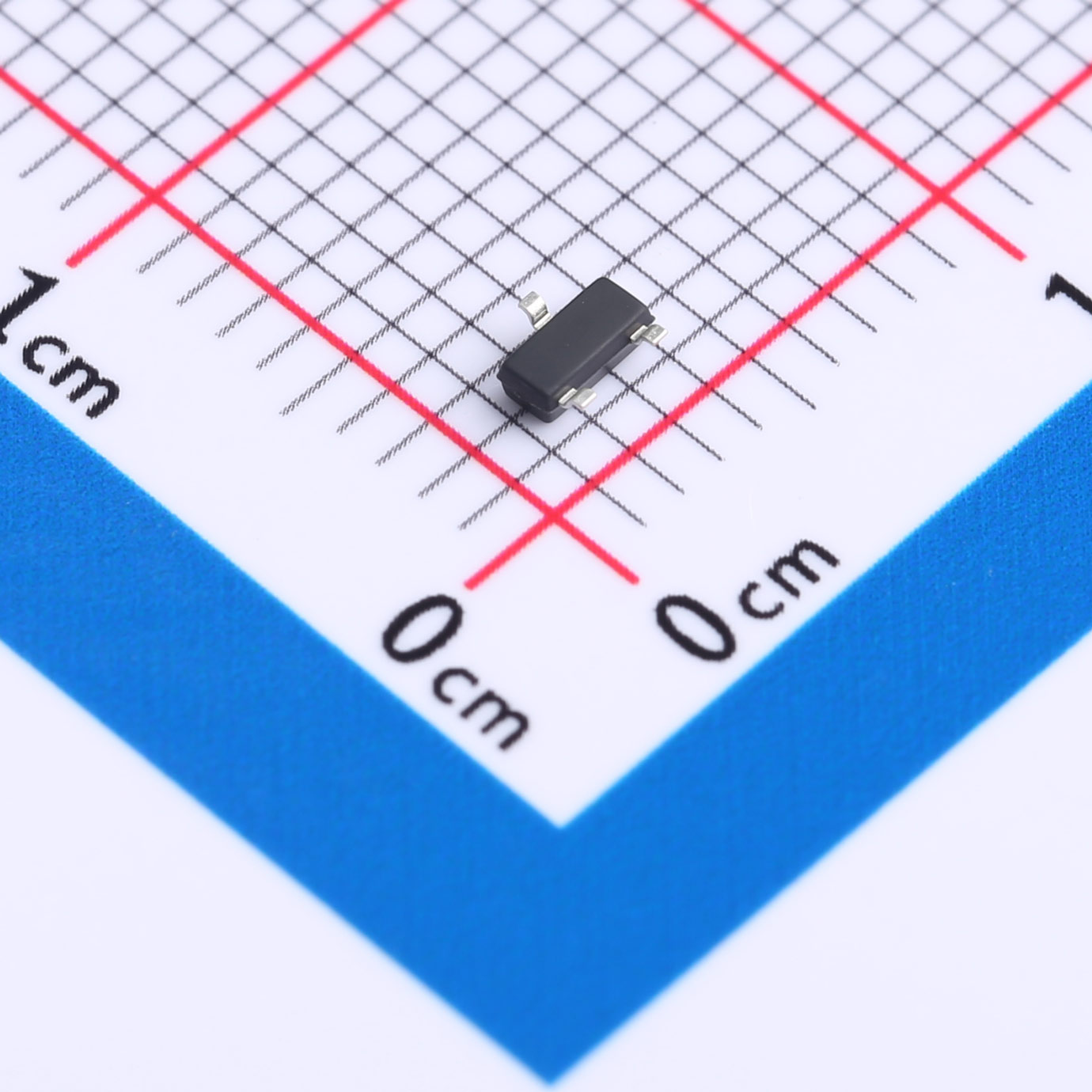

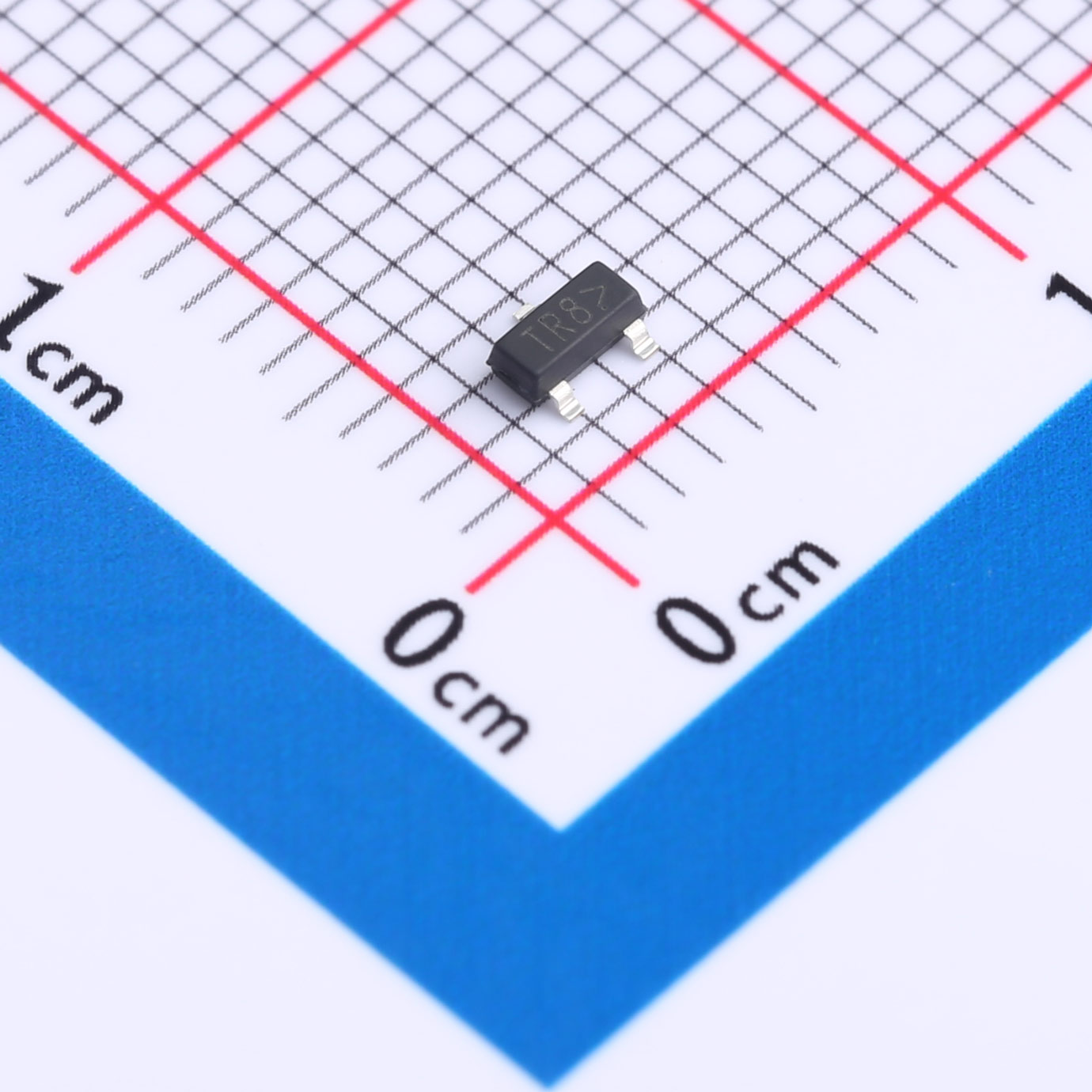

NTR4003N N-Channel Power MOSFET SOT-23
● Trench Power MV MOSFET technology
● Voltage controlled small signal switch
● Low input Capacitance
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Product Introduction
The NTR4003N is an N-channel low-voltage MOSFET suitable for DC-DC converters, battery management and other low-voltage applications. Featuring a drain-source voltage of 20 V, on-state resistance of 1.5 Ω and continuous drain current of 560 mA, this device delivers efficient power conversion within a compact package. Its gate threshold voltage is 1.6 V @ 250 µA, offering excellent controllability to turn on and off the current path under low-level signals.
Product Features
- N-channel low-voltage MOSFET, suitable for DC-DC converters, battery management and other low-voltage applications - Drain-Source Voltage (Vdss): 20 V, enables efficient power conversion in a compact package - On-state Resistance (RDS(on) @ Vgs, Id): 1.5 Ω @ 4.5 V, 10 mA. Low on-state resistance realizes high-efficiency power conversion - Continuous Drain Current (Id): 560 mA, ideal for small-size power supply applications - Gate Threshold Voltage (Vgs(th) @ Id): 1.6 V @ 250 µA. Provides excellent controllability for turning on and off current paths at low signal levels - Package: SOT-23, facilitating PCB design and assembly
Applications
The NTR4003N is widely adopted in low-voltage applications, especially DC-DC converters, battery management and other circuits requiring high-efficiency low-voltage power conversion. Benefiting from its compact package and low on-state resistance, it achieves high-efficiency power conversion for small-form-factor power supply applications.
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
2SK3018 N-Channel Power MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 30V Id(A)： 100mA RDSON(Ω)： 7.5mΩ@10V,400mA VTH： 2V@100uA P/N： N-Channel
2SK3018W N-Channel Power MOSFET SOT-323
Brand: slkor， Package： SOT-323 VDSS(V)： 30V Id(A)： 300mA RDSON(Ω)： 8Ω@10V,3A VTH： 1.5V@250μA P/N： N-Channel
2SK3019 Metal Oxide-Silicon Field Effect Transistors
Brand: slkor， Package： SOT-523 VDSS(V)： 30V Id(A)： 0.1A RDSON(Ω)： 8Ω@4V, 10mA VTH： 0.8V@100μA P/N： N-Channel
2SK3019 N-Channel Enhancement MOSFET SOT-523
Brand: slkor， Package： SOT-523 VDSS(V)： 30V Id(A)： 0.1A RDSON(Ω)： 8Ω@4V,10A VTH： 0.8V@100μA P/N： N-Channel
BSN20 N-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 50V Id(A)： 3A RDSON(Ω)： 3Ω@4.5V VTH： 1.5V@250μA P/N： N-Channel
BSS205N N-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 20V Id(A)： 2.5A RDSON(Ω)： 40mΩ@4.5V,2.5A VTH： 0.7V@11μA P/N： N-Channel
BSS84 P-Channel Enhancement Mode Field-Effect Transistor SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： 50V Id(A)： 130mA RDSON(Ω)： 10Ω@5V,100mA VTH： 2.5V@250uA P/N： P-Channel
FDN302P P-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： -20V Id(A)： -2.4A RDSON(Ω)： 44mΩ@-4.5V, -2.4A VTH： -1V@-250μA P/N： P-Channel
FDN304P P-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： -20V Id(A)： -2.4A RDSON(Ω)： 36mΩ@-4.5V, -2.4A VTH： -0.7V@-250μA P/N： P-Channel
FDN306P P-Channel Enhancement MOSFET SOT-23
Brand: slkor， Package： SOT-23 VDSS(V)： -12V Id(A)： -2.6A RDSON(Ω)： 30mΩ@-4.5V, -2.6A VTH： -0.7V@-250μA P/N： P-Channel
